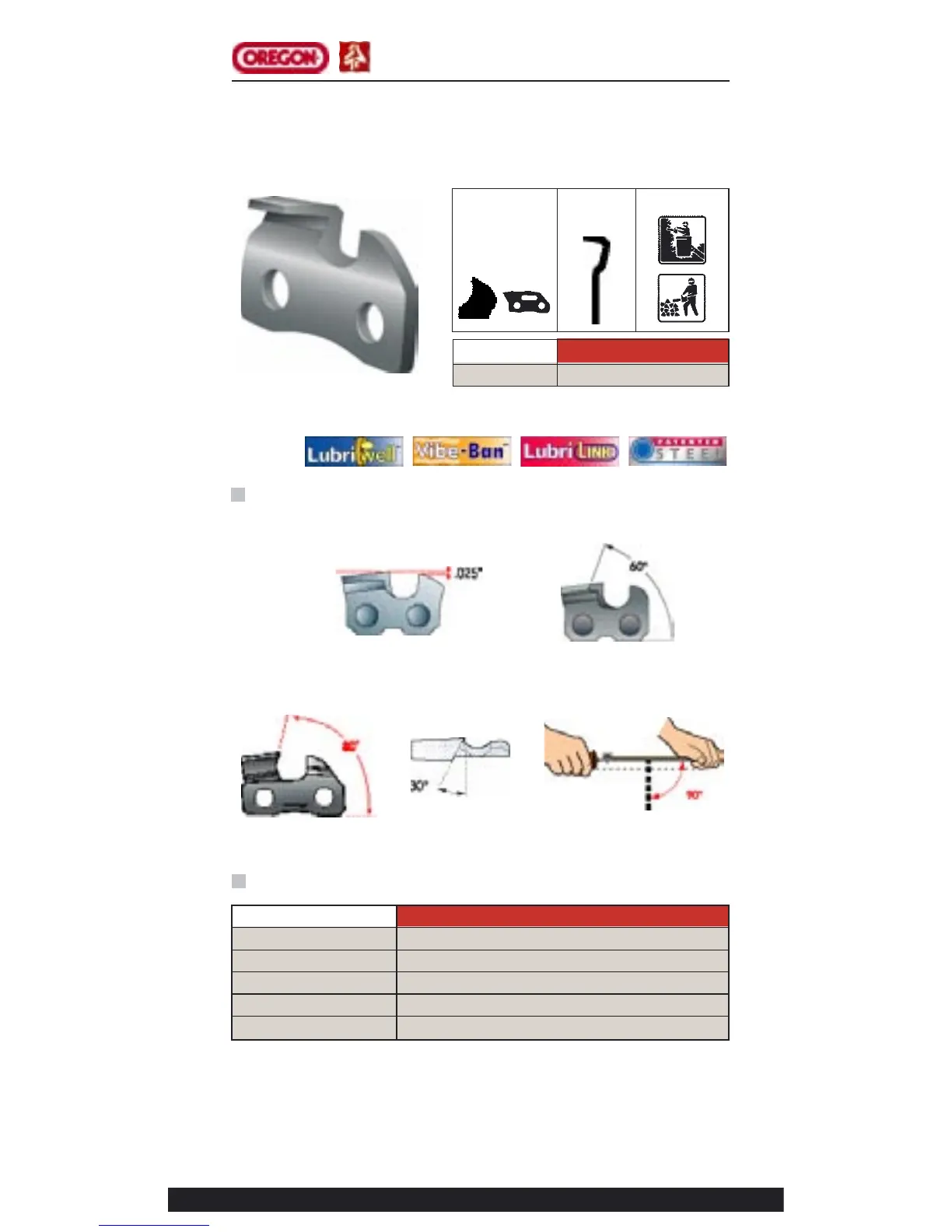

SAW CHAIN
SAW CHAIN
OREGON
®
CHAMFER CHISEL
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70504 5/32" (4.0mm) Round File
16265 5/32" (4.0mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90405 Sharpening kit
FILING
➍ TOP-PLATE FILING
ANGLE:
Kickback
Reducing
Features
End View Use
Chain on this page is intended for use with saws up to 2.5 cu. in.
displacement (41cc), and bars up to 16 in. length (41 cm).
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
91VG .050" (1.3mm)
Reduced kickback chain
Xtra GUARD
®
3/8"
