SAW CHAIN
41.
SAW CHAIN
OREGON
®
MICRO CHISEL
®
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70502 7/32" (5.5mm) Round File
13252 7/32" (5.5mm) Assembled File Guide
107488 .030" (0.75mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90406 Sharpening kit
FILING

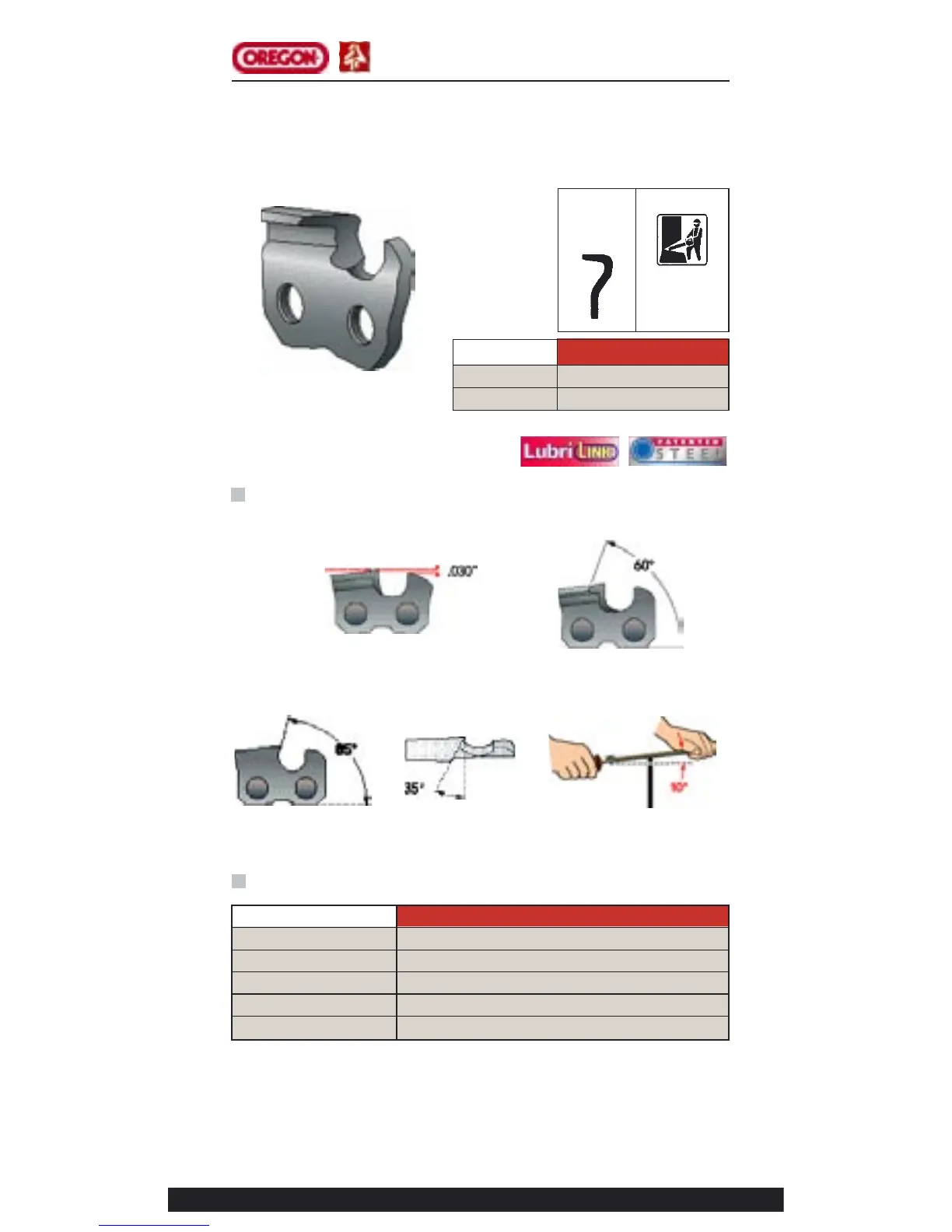

➍ TOP-PLATE FILING
ANGLE:
End View Use
Chain on this page are intended for use with saws 4.0 cu. in. displacement
(65cc) and larger, and with bars 20 in. (50 cm) and longer.
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
26, 26P .058" (1.3mm)
27, 27P .063" (1.5mm)
MICRO CHISEL
®
.404"
