42.
SAW CHAIN
SAW CHAIN
OREGON
®
MICRO CHISEL
®
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70502 7/32" (5.5mm) Round File
13252 7/32" (5.5mm) Assembled File Guide
107488 .030" (0.75mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90406 Sharpening kit

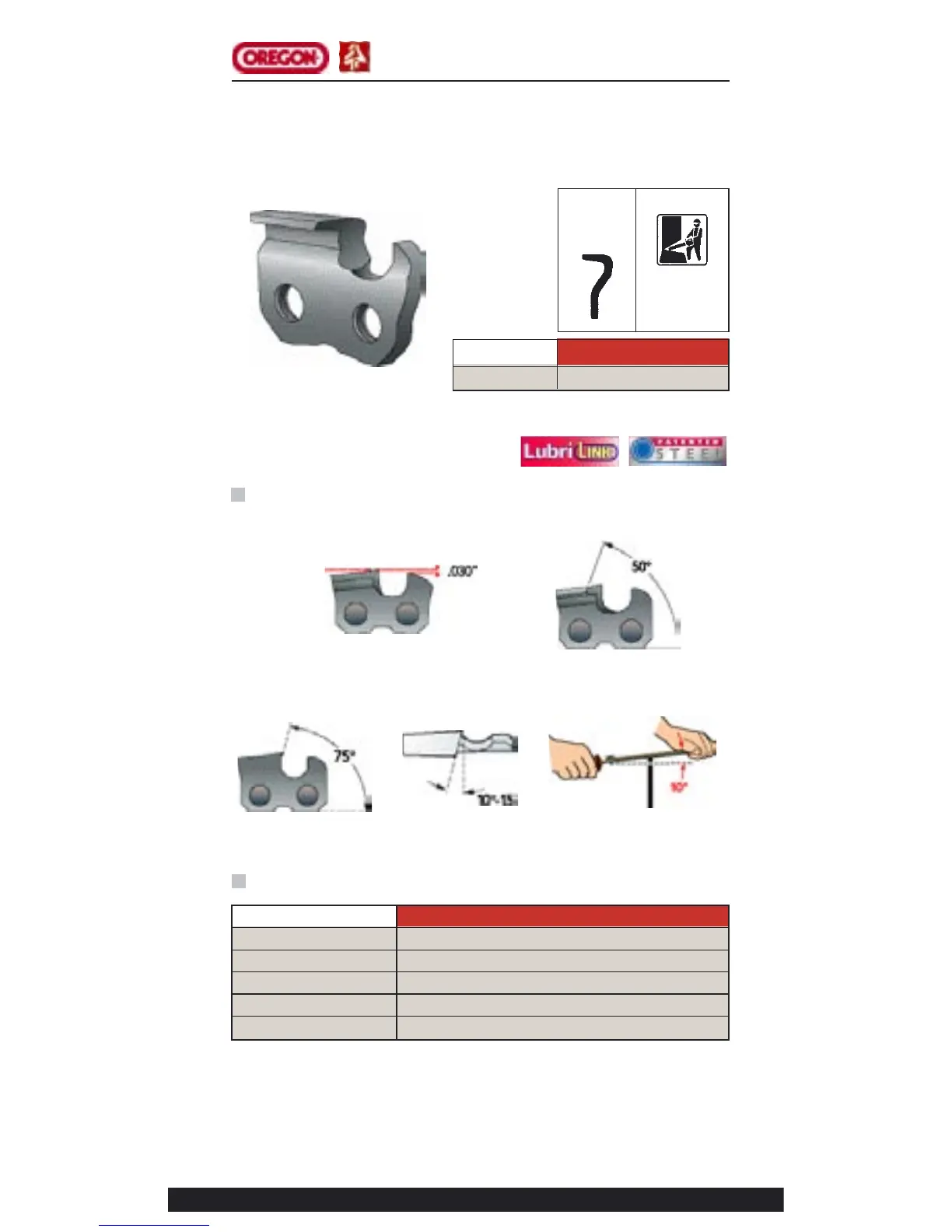

FILING
➍ TOP-PLATE FILING
ANGLE:
End View Use
Ripping chains feature a special grind for use in ripping cuts only.
Do not use these chains for any type of cutting other than ripping.
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
27R,RA .063" (1.6mm)
RIPPING CHAIN .404"
