SAW CHAIN
43.
SAW CHAIN
OREGON
®
MICRO CHISEL
®
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70503 3/16" (4.8mm) Round File
18228 3/16" (4.8mm) Assembled File Guide
107488 .030" (0.75mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90408 Sharpening kit
FILING

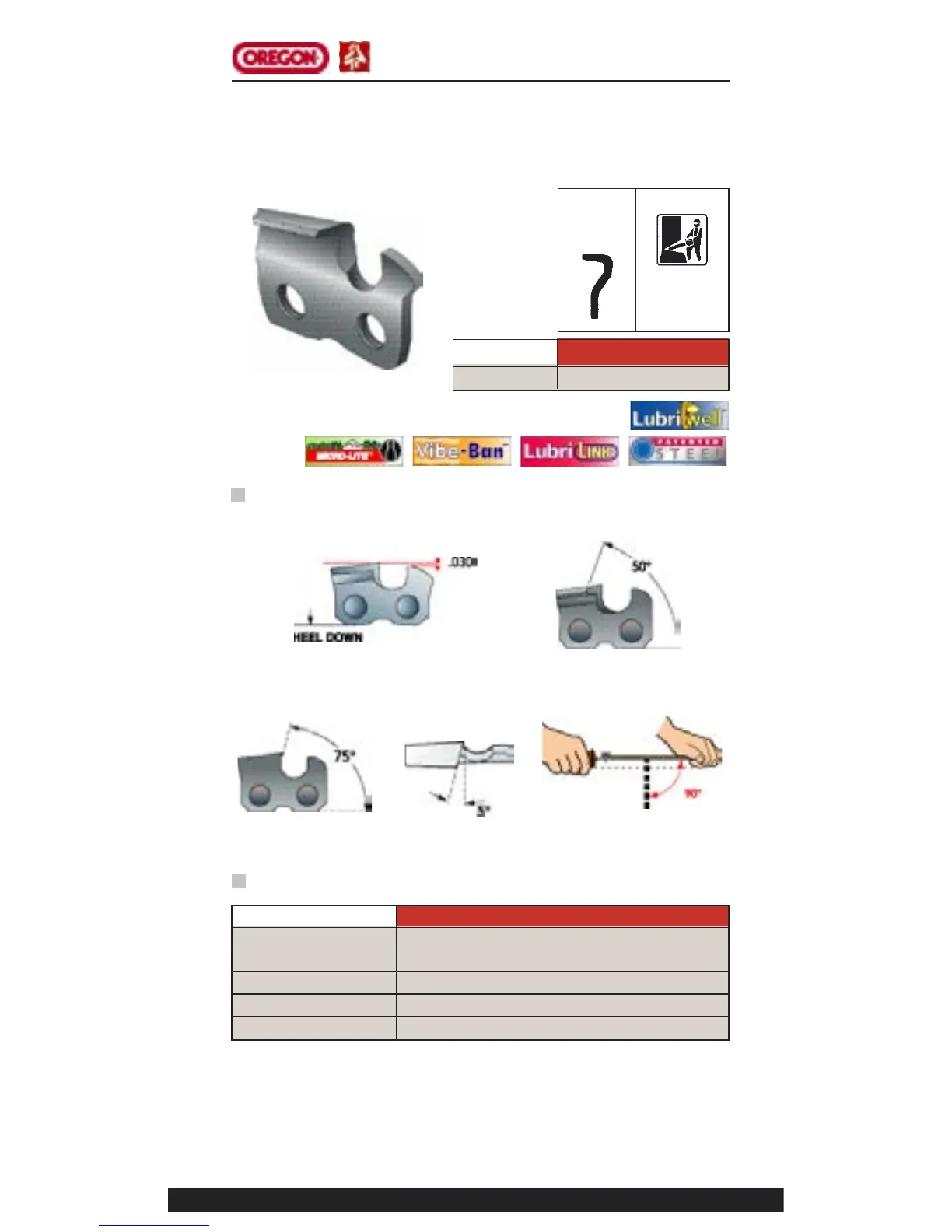

➍ TOP-PLATE FILING
ANGLE:
End View Use
Ripping chains feature a special grind for use in ripping cuts only.
Do not use these chains for any type of cutting other than ripping.
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
95R (Micro-Lite™) .050" (1.3mm)
RIPPING CHAIN .325"
