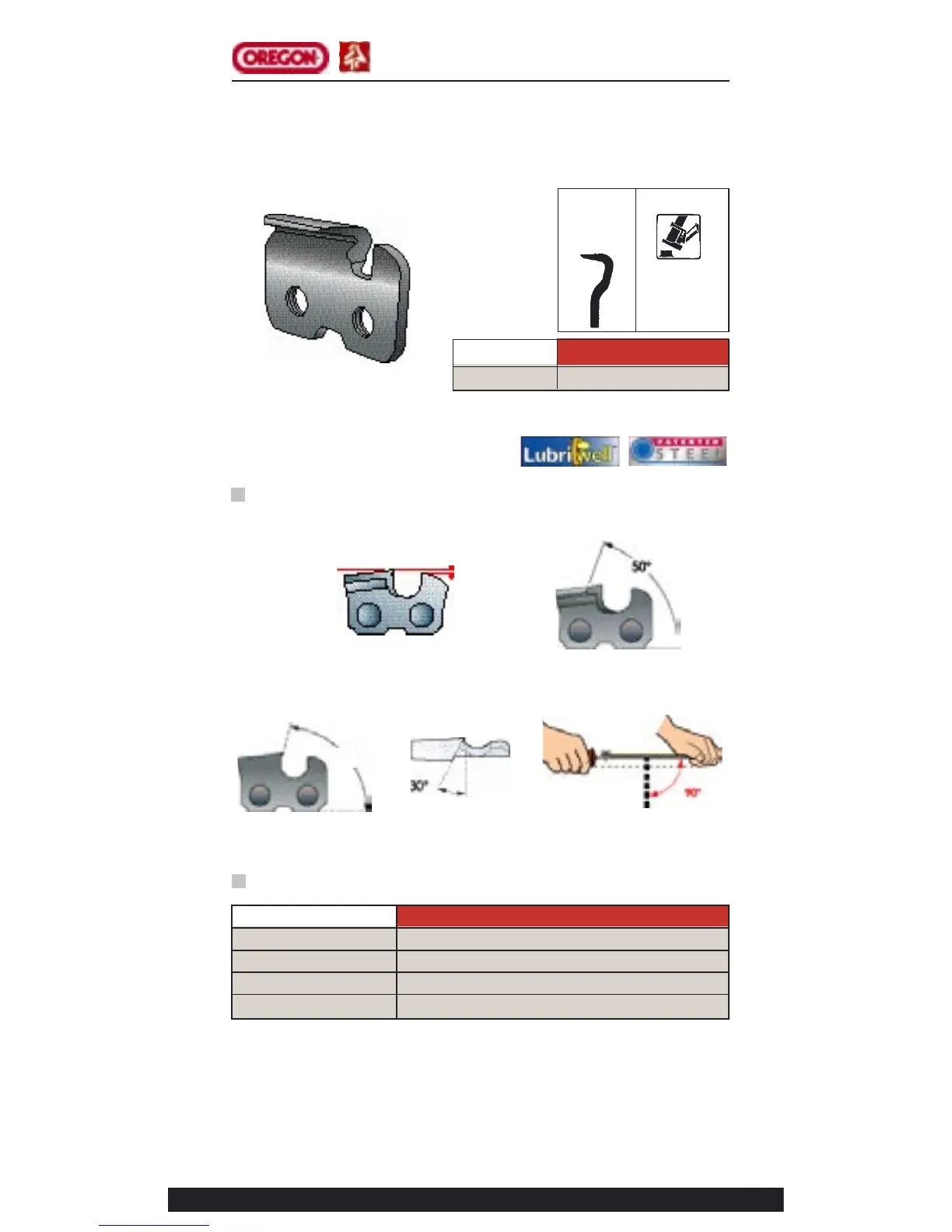

SAW CHAIN
SAW CHAIN
PART N°. DESCRIPTION
90410 5/16" (7.9mm) Round File
107617 5/16" file guide
107529 .070" (1.7mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
OREGON
®
SEMI CHISEL
TOOLS FOR FILING
FILING
➍ TOP-PLATE FILING
ANGLE:
End View Use
11H chain is used only on mechanical timber harvesters, processors and
pond-and-deck applications.
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
11H .122" (3.1mm)
HARVESTER, NO HAND-HELD APPLICATIONS
.070"
80°
SEMI-CHISEL 3/4"
