SAW CHAIN
45.
SAW CHAIN
OREGON
®
CHISEL
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70502 7/32" (5.5mm) Round File
13252 7/32" (5.5mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90404 Sharpening kit

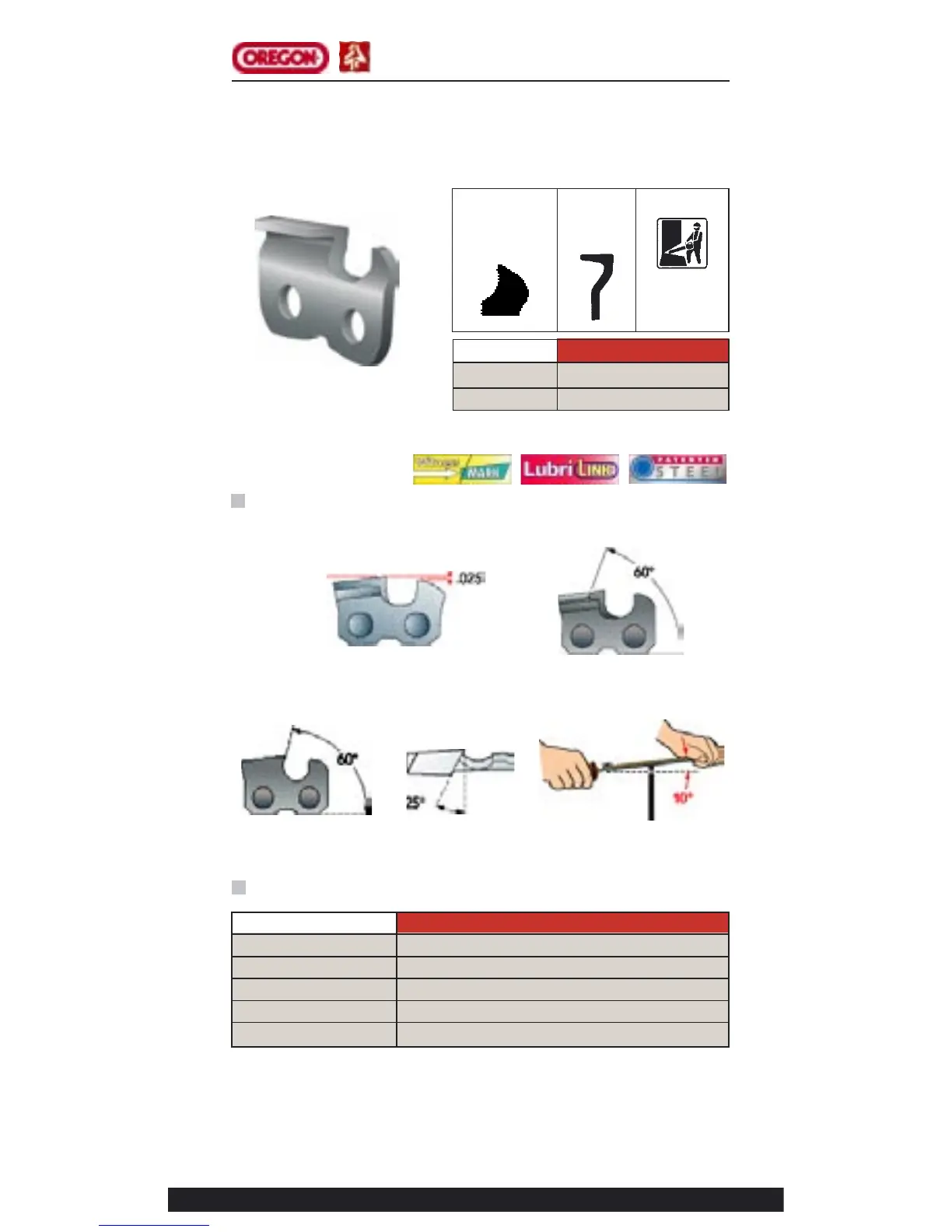

FILING
➍ TOP-PLATE FILING
ANGLE:
Kickback
Reducing
Features
End View Use
Chains on this page are intended for use with saws 4.0 cu. in.
displacement (65cc) and larger, and with bars 20 in. (50cm) and
longer.
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
58L .058" (1.5mm)
59L .063" (1.6mm)
SUPER GUARD
®
.404"
