Orion Machine Manual
Revision 3.0 Flex Stretchwrapper
15 February 2016 Maintenance
Page 5-3
Proximity Sensor Adjustment
Occasionally the Feed Back Proximity Sensor may need some adjustment. The position of
the feed back proximity sensor against the cam is shown in Figure 5 - 1.
1. Power down machine.
2. Remove the carriage cover.
3. Unbolt the two nuts holding the proximity switch.
4. Turn the Proximity sensor to create the gap between the cam and the front side of
proximity sensor about 1/8.”
5. Tighten on the nuts securing the Proximity Sensor.
6. Put the cover back on.
7. Power up machine.
8. To adjust the multistretch settings, you must be logged in. Press the login button in the
bottom left corner of the screen
9. Enter the password then press the X to close the keypad.
10. Press the Machine Settings button.
11. Press the Multistretch button to go to the Multistretch Screen.
12. Press the Modify Settings button.
13. Adjust the Zero Trim to .5 mA over the current Hall Effect Sensor reading shown on
the screen.
(Continued on Next Page)
Figure 5 - 1

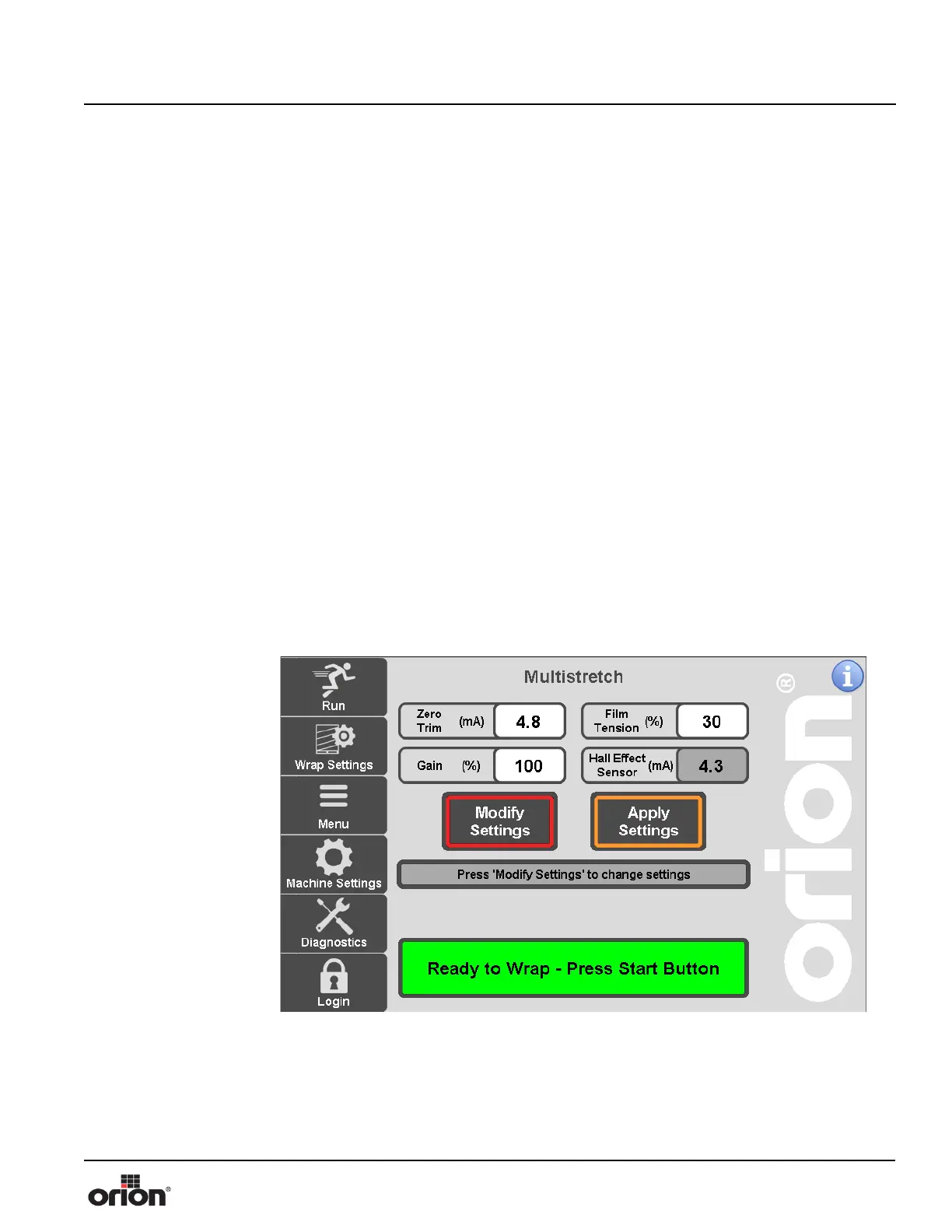

The Multistretch
Screen
To Next Page
