Orion FLEX RTD User Manual

Machine Manual Orion
Flex Stretchwrapper Revision 3.0
System Operation 15 February 2016
Page 3-10
Wrap Setting Screens
Wrap Settings Screen
Note: To adjust the wrap settings, you must be logged in. Press the login
button in the bottom left corner of the screen. Enter ADMIN then
press the checkmark, then X to close the keypad.
This is the Wrap Settings screen. This screen allows you to set the number of top and bot-
tom wraps and the speed percentage of the carriage up and down travel. You may also
choose wrap pattern options such as, Wrap Bottom First, Wrap Top First, Low Speed/
High Speed, Unstable Load Enabled or Disabled, Autoheight Enabled or Disabled, or
Film Fault Enabled or Disabled. You can view each pattern settings on the Recipe View-
ing Screen, see “Recipe Viewing Screen” on page 3 - 19.

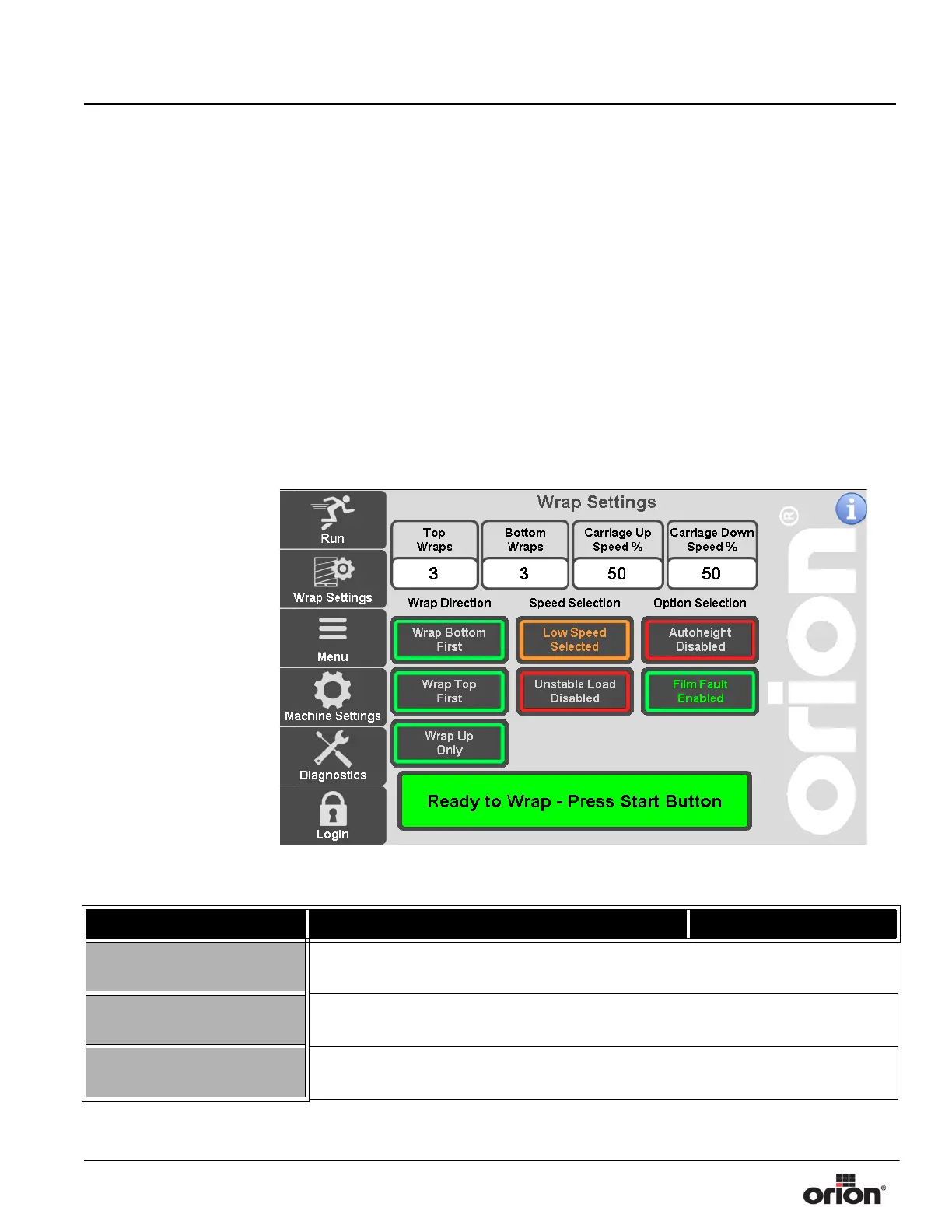

Figure 3 - 7
The Wrap Settings
Screen
Table 3-6. The Wrap Settings Screen Button Descriptions
STATE 1 DESCRIPTION STATE 2
TOP WRAPS
Press this button to set the number of top wraps applied to the load. Parameters are
1-20.
BOTTOM WRAPS
Press this button to set the number of bottom wraps applied to the load. Parameters
are 1-20.
CARRIAGE UP SPEED
Press this button to change the speed of the carriage on the upward move, in terms
of percentage. Min - 5% Max - 100%
