Orion Machine Manual
Revision 3.0 Flex Stretchwrapper
15 February 2016 Introduction and Safety
Page 1-11
Installation and First Time Power Up
Unloading
Machine can be easily unloaded and transported by a forklift with a minimum capacity of
2500 lbs.
1. Carefully insert the forks into the lifting tubes to the maximum possible depth.
Depending on the model, a forklift access may be either at the tower end of the
machine frame, the tower end or both. Look for the forklift tube access stickers shown
below.
2. Lift the machine (or other part of system) only to the necessary height to move it with
no bouncing or friction on the floor.
3. Sit the machine down assuring uniform contact with the floor, which is necessary to
ensure correct and smooth operation.

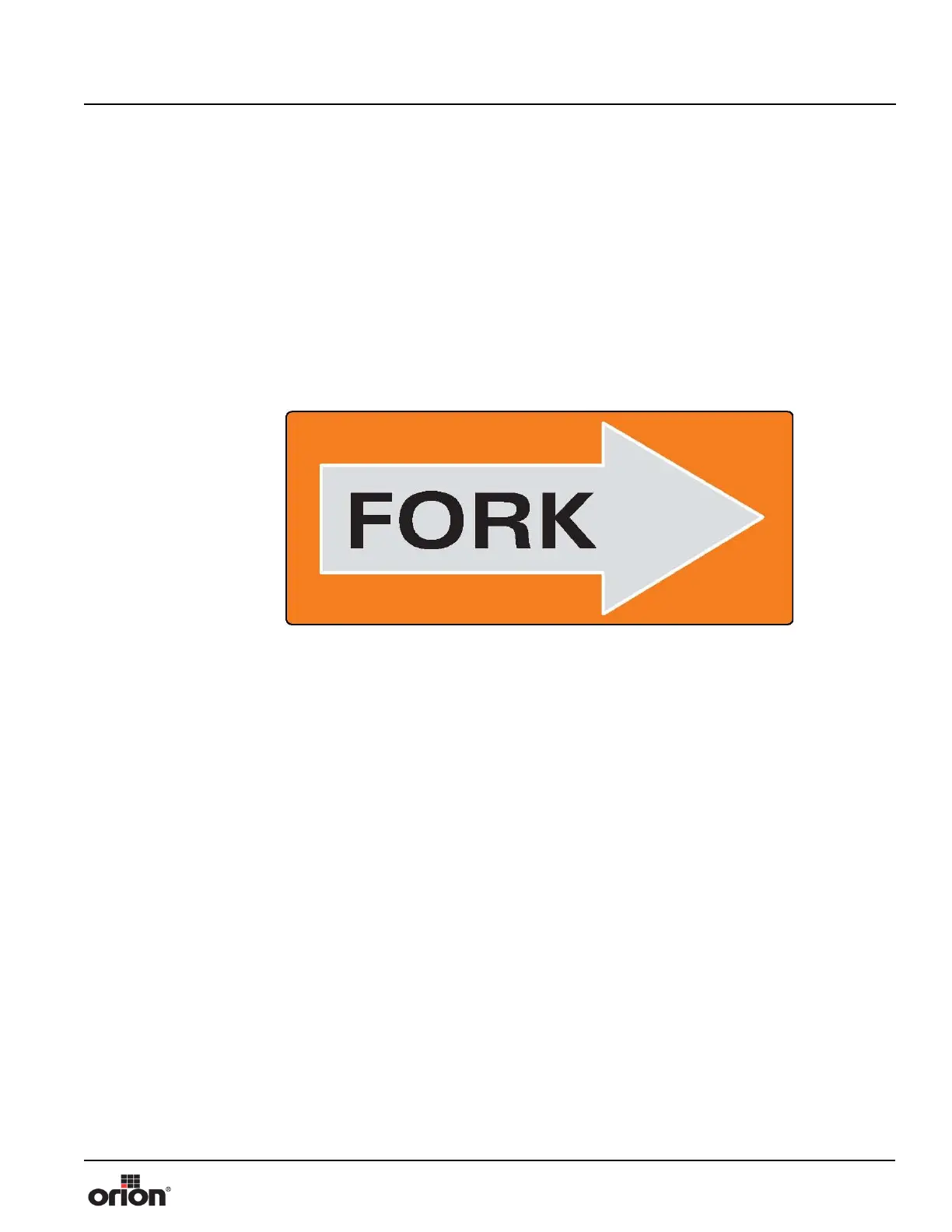

Figure 1 - 1
Fork Tube Access
Sticker
