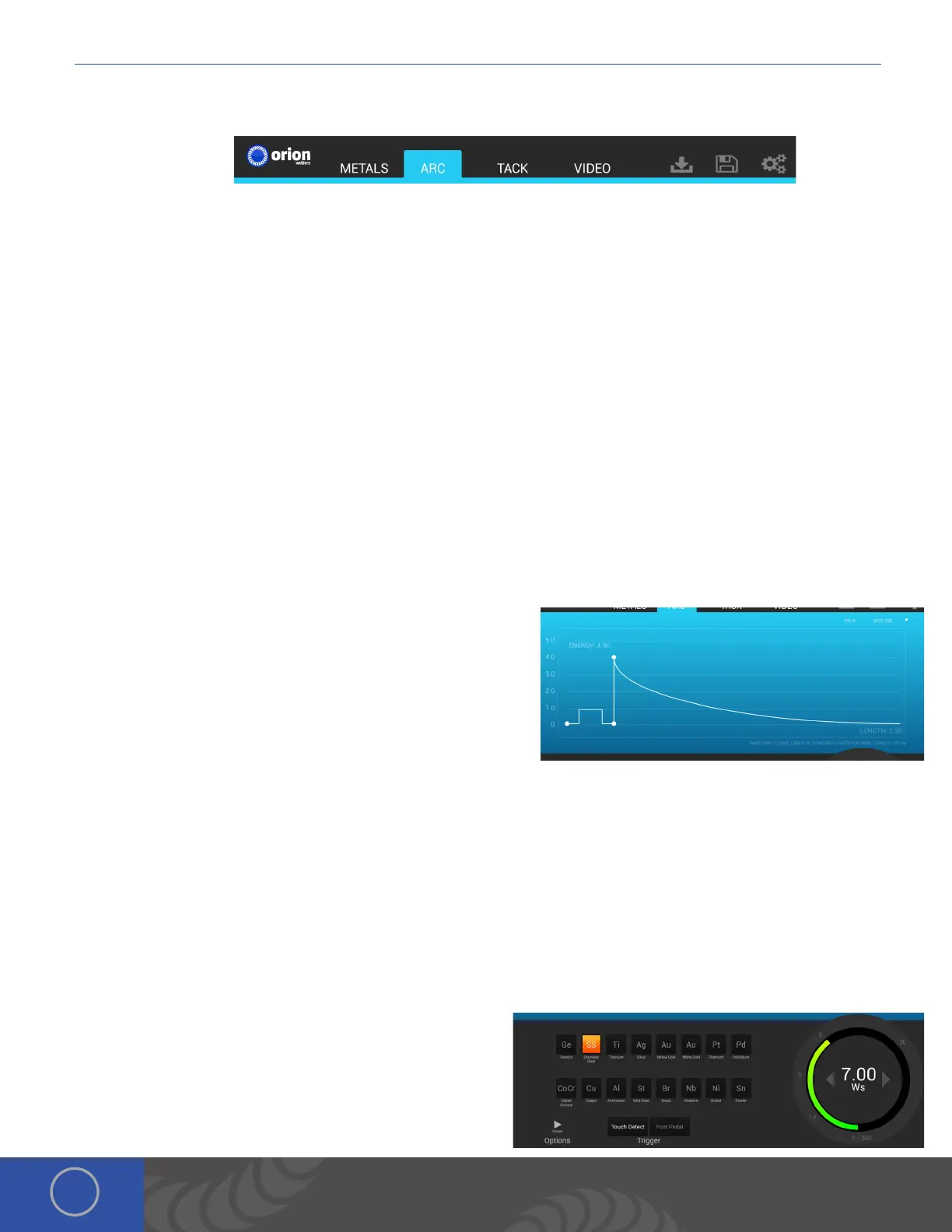

Chapter 2: User Interface Overview
Header Area
METALS, ARC, TACK, AND VIDEOS TABS
ese four tabs contain features and settings specific to each view and will be discussed in further detail below.
SAVE ICON
e save icon allows users to create a custom weld parameter based on their current weld settings. Users can create up to
1000 custom weld parameters.
LOAD ICON
e load icon allows users to select those pre-saved custom weld parameters and use them again.
SETTINGS ICON
e settings icon opens a window to adjust Interface, Gas, Timing, and System settings.
Waveform Graph Area
In this area, the user has a full preview of the current weld settings and can see exactly what will take place during each
weld. e waveform displayed will change based on the control settings the user selects.
Along the left side of the graph, the numbered scale changes as the
weld energy is increased or decreased. You’ll also notice that the time
of the weld is represented by the length measurement shown at the
bottom of the graph. ese settings show what’s happening during
the weld.
In the upper right hand corner, an approximation of the weld size is
shown based on the current settings. is helps users have a visible reference when setting power and other parameters.
Lastly, in the lower right portion of this section, all the currently enabled Waveform, Ignition, Agitation, and Length values
are displayed.
Metals Tab - Control Area
is section was created to help users that are first learning to pulse arc weld, or not sure which weld parameter to use.
METALS
To begin, simply select the metal that will be welded. Each metal
has been pre programed to load the best settings we have found
for welding that particular metal.
* If welding two different metals, we suggest using the welder
factory default settings. Touch the “reset button” in the control
area of the “Arc Tab” to load these settings.
