3. Anchor the rst cubicle to the oor of the installation
using M10 bolts at the points prepared in its base. This
will prevent displacements or vibrations due to causes
such as short-circuiting, ooding, etc. The following
levels and gures should be taken into account:
Anchoring dimensions
Module
b
[mm]
c
[mm]
d
[mm]
f
Internal arc
1 s
-l*
325 - - 631.5
-p
430 - - 631.5
-v (RAV)
430 - - 631.5
-2lp
317 - - 631.5
Table 4.5. Anchoring dimensions

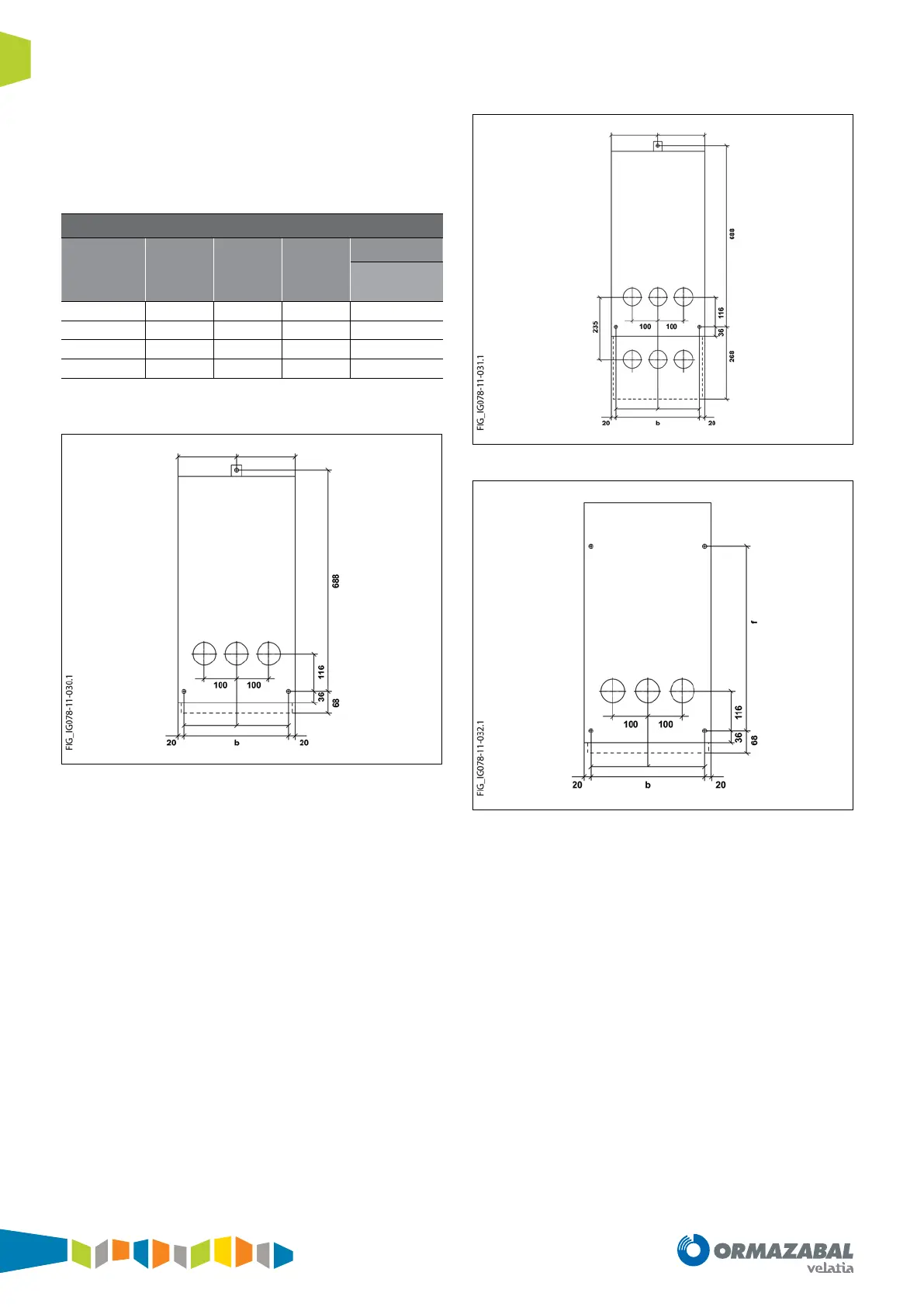

Figure 4.9. Anchoring diagram cgmcosmos-l, -p 1300 mm high
Figure 4.10. Anchoring diagram cgmcosmos-l double cable 1300 mm high
Figure 4.11. Anchoring diagram cgmcosmos-l, -p 1740 mm high
IG-296-EN version 01; 12/03/2020
24
Installation General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
