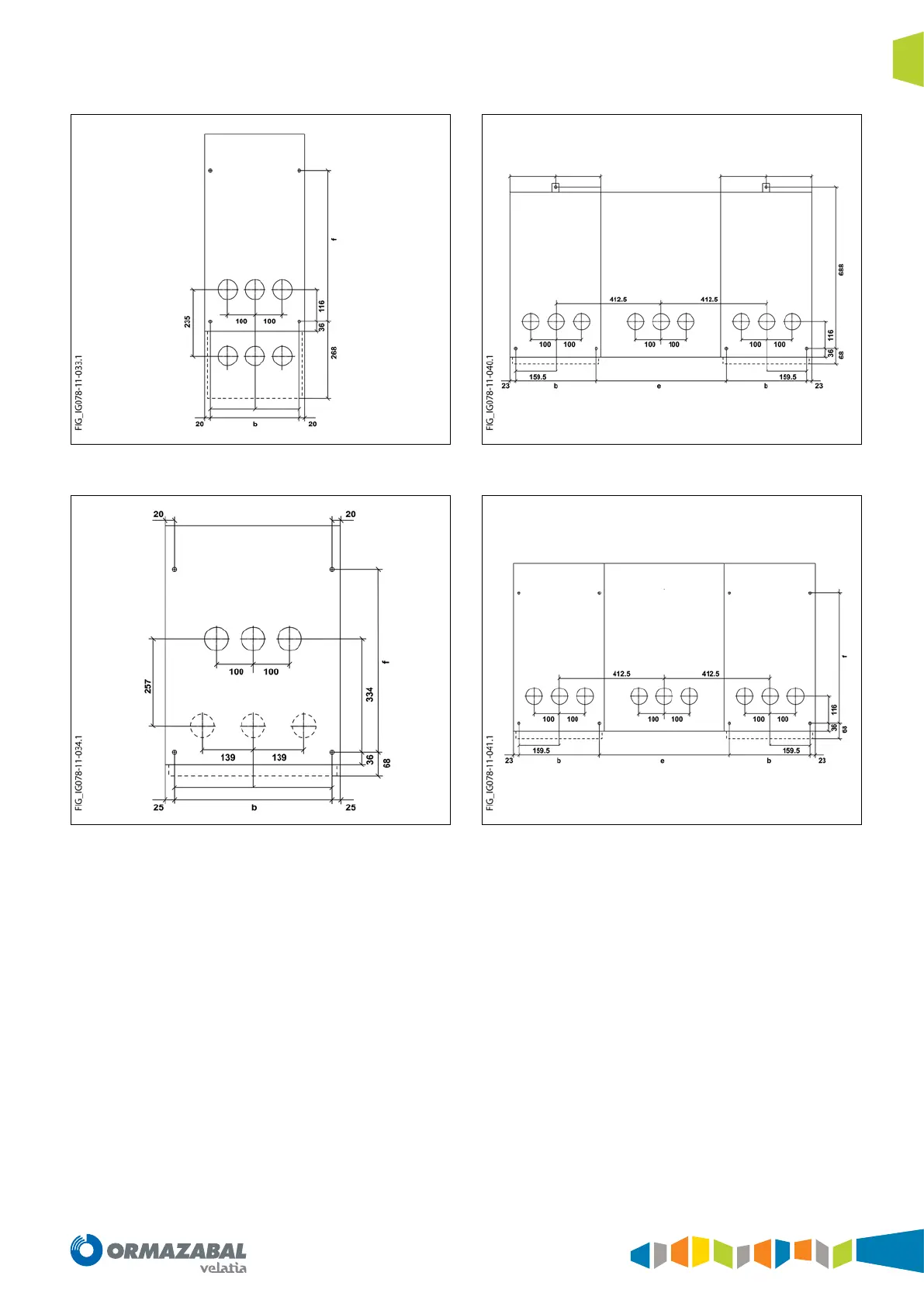

Figure 4.12. Anchoring diagram cgmcosmos-l double cable
1740 mm high
Figure 4.13. Anchoring diagram cgmcosmos-v with RAV driving
mechanism 1740 mm high
Figure 4.14. Anchoring diagram cgmcosmos-2lp 1300 mm high
Figure 4.15. Anchoring diagram cgmcosmos-2lp 1740 mm high
IG-296-EN version 01; 12/03/2020
25
General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
Installation
