Ormazabal cgmcosmos-p User Manual

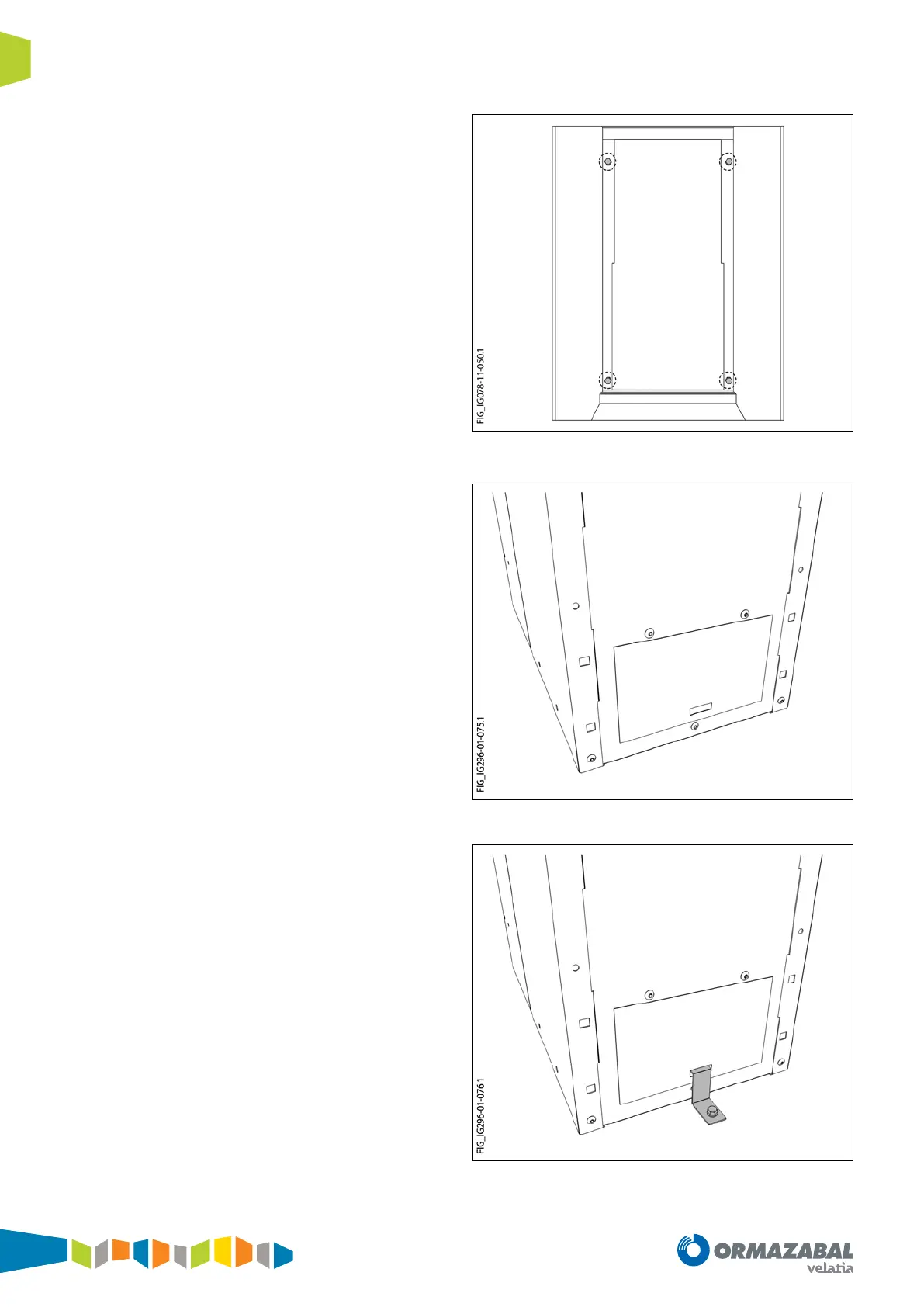

4. For 1740 mm cubicles, use the following four anchoring
points:
Figure 4.16. Location of anchor points in cgmcosmos cubicles
1740 mm high
5. For 1300 mm high cubicles, apart from the front
anchorage points, position the angle bars supplied
with the equipment and x them to the oor, so that
once the anchoring sequence is complete they are
approximately in the middle of the rear gas outlet. Fit
one angle bar per function and two in compact cubicles.
Figure 4.17. Push from the front of the cubicle
Figure 4.18. Cubicle with angle bar in central position
IG-296-EN version 01; 12/03/2020
26
Installation General instructions
cgmcosmos: Medium voltage cubicles with full insulation
in SF
6
gas up to 24 kV in accordance with IEC Standard
