IG-267-EN versión 01; 07/04/2017
44
Detection, automation and control functions General Instructions
ekor.rpa
• FINAL TRIP: Indicates that the trip caused by the
overcurrent unit has been final, and there will be no
subsequent reclosing.
• RECLOSING ORDER: This is the switch closing
order which automation generates after timing the
corresponding recloser time.

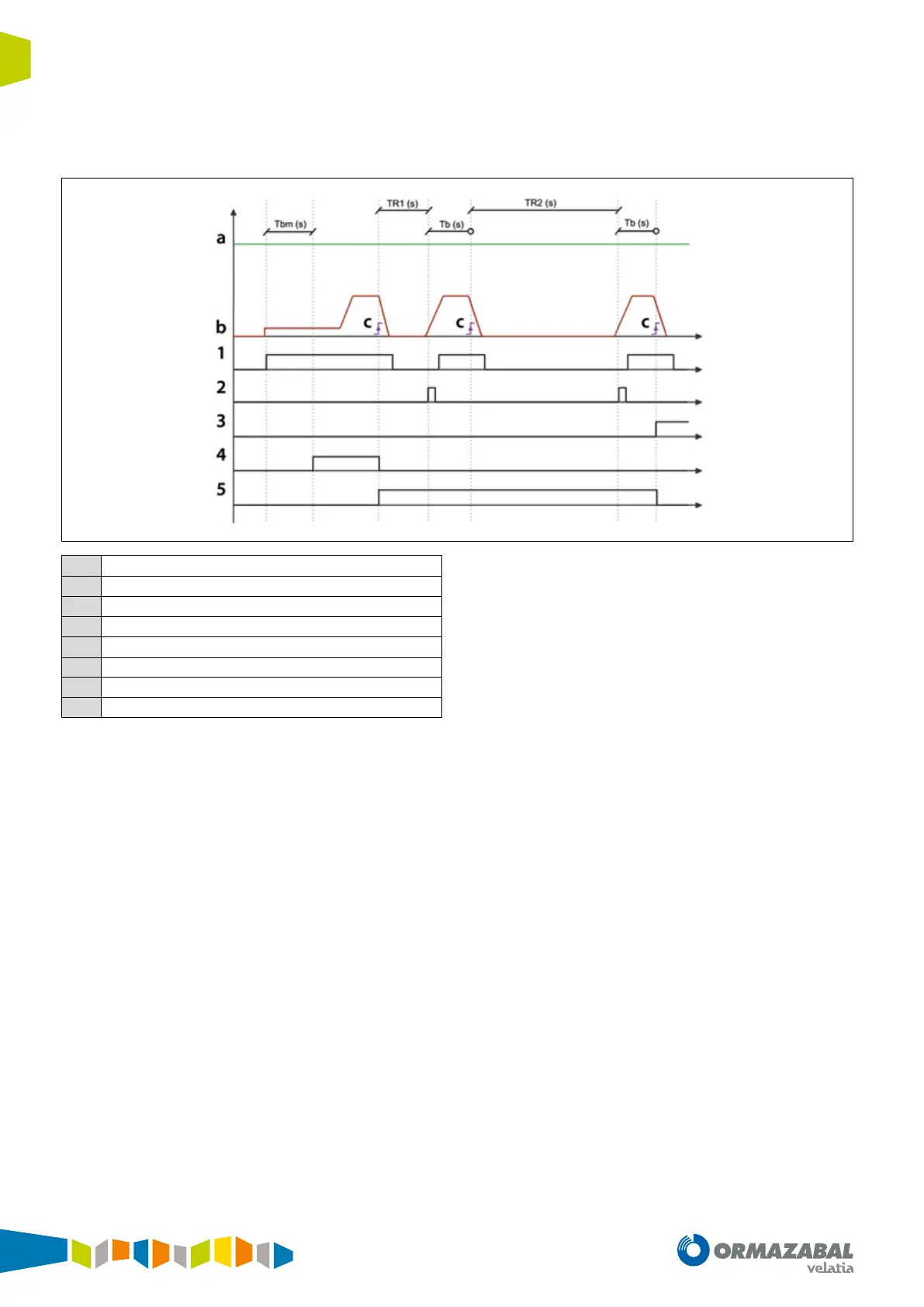

a
Busbar voltage
b
Line currents
c
Tripping order
1
Switch status
2
Reclosing order
3
Final trip
4
Standby
5
Under way
TR = Reclosing time
Tb = Safety time after reclosing
Tbm = Safety time after manual closing
Figure 5.1. Reclosing order
