IG-267-EN versión 01; 07/04/2017
91
General Instructions
ekor.rpa
User interface
Example:

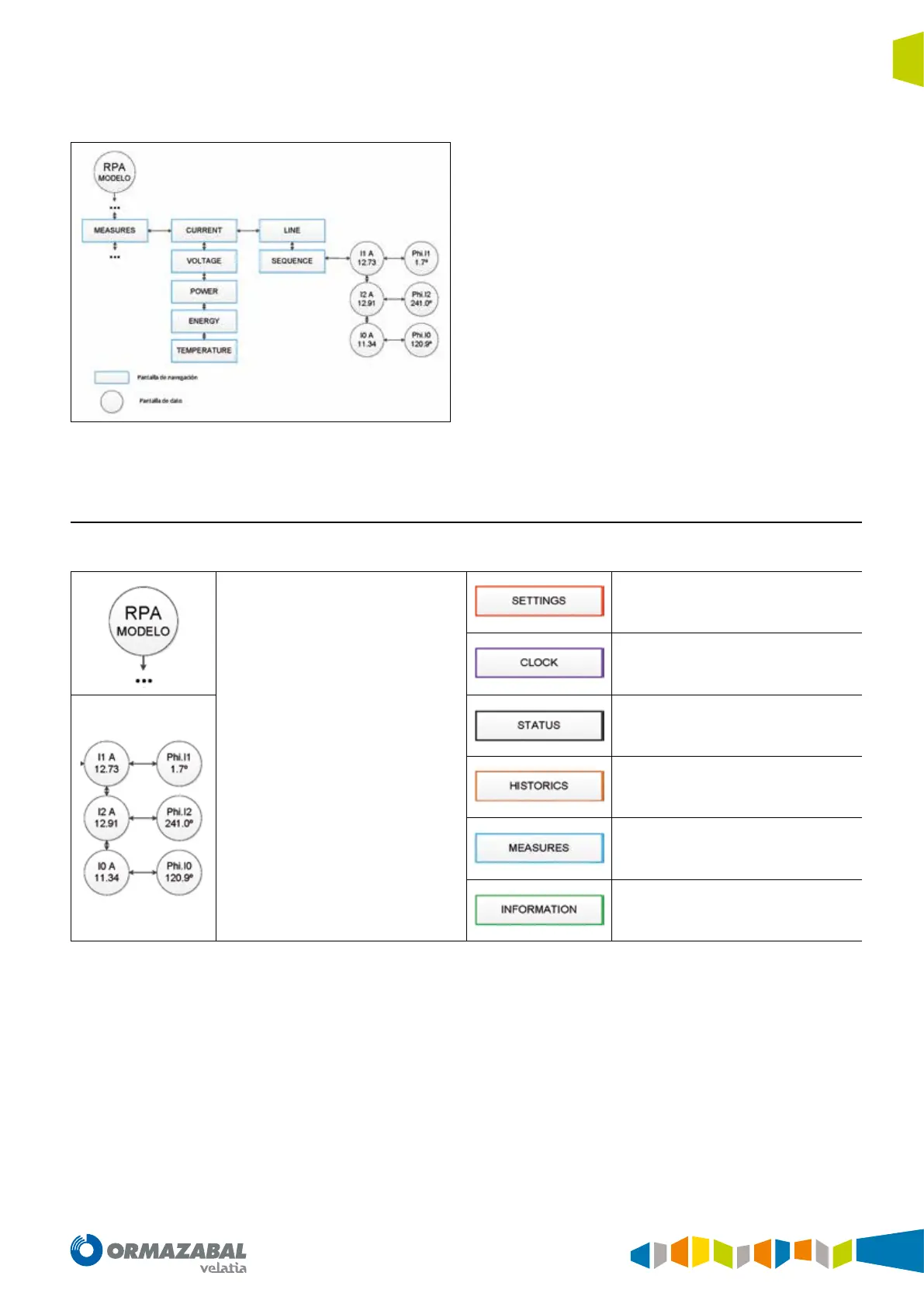

Figure 11.17. Tree structure implemented in the display of the
ekor.rpa-100 units
In this example, part of the tree structure implemented in
the display is shown; specifically, the navigation screens
which should be used to access the sequence current
metering (data screens) are shown. Based on the main “RPA
MODEL” screen, the path to follow to access the sequences
screens is as follows:
First navigate through the main navigation screens using
the “down”, key, through to the “MEASURES” screen. The
next step is to click on the “right” key to enter the lower level
navigation screens associated with the “MEASURES” screen.
The same logic is used to reach the last “SEQUENCE”
navigation screen, which the data screens corresponding
to the sequence currents depend on. Having reached
these data screens, and knowing that they are double data
screens, it is possible to switch between the screen for
module and angle by clicking on the “right” key.
11.2.2. Display screen
The main browsing branch is as follows:
Current and voltage phasor.
Double screens: Module + argument
General display screen for
user settings
General display screen for
date and time
General display screen for
statuses
General display screen for
fault reports
General display screen for
meterings
General display screen for
system information
Table 11.2. Display
