User interface
Checking and modifying parameters using the Web server
The website is divided into four main tabs: Maintenance,
Logs, Congure and Leave.
Maintenance
This tab is used to keep users informed on data in real time
and provide information on the status of the cubicle, alarms,
current and voltage meterings, etc.
In turn, it is divided into 5 menus: Display, Alarms, Meterings,
Description and Communications.
• Display: The cubicle information is displayed, showing
the status of the installed cubicles in real time.
1
Display tab
2
Switchgear status
3
Cubicle status indicators
4
Meterings

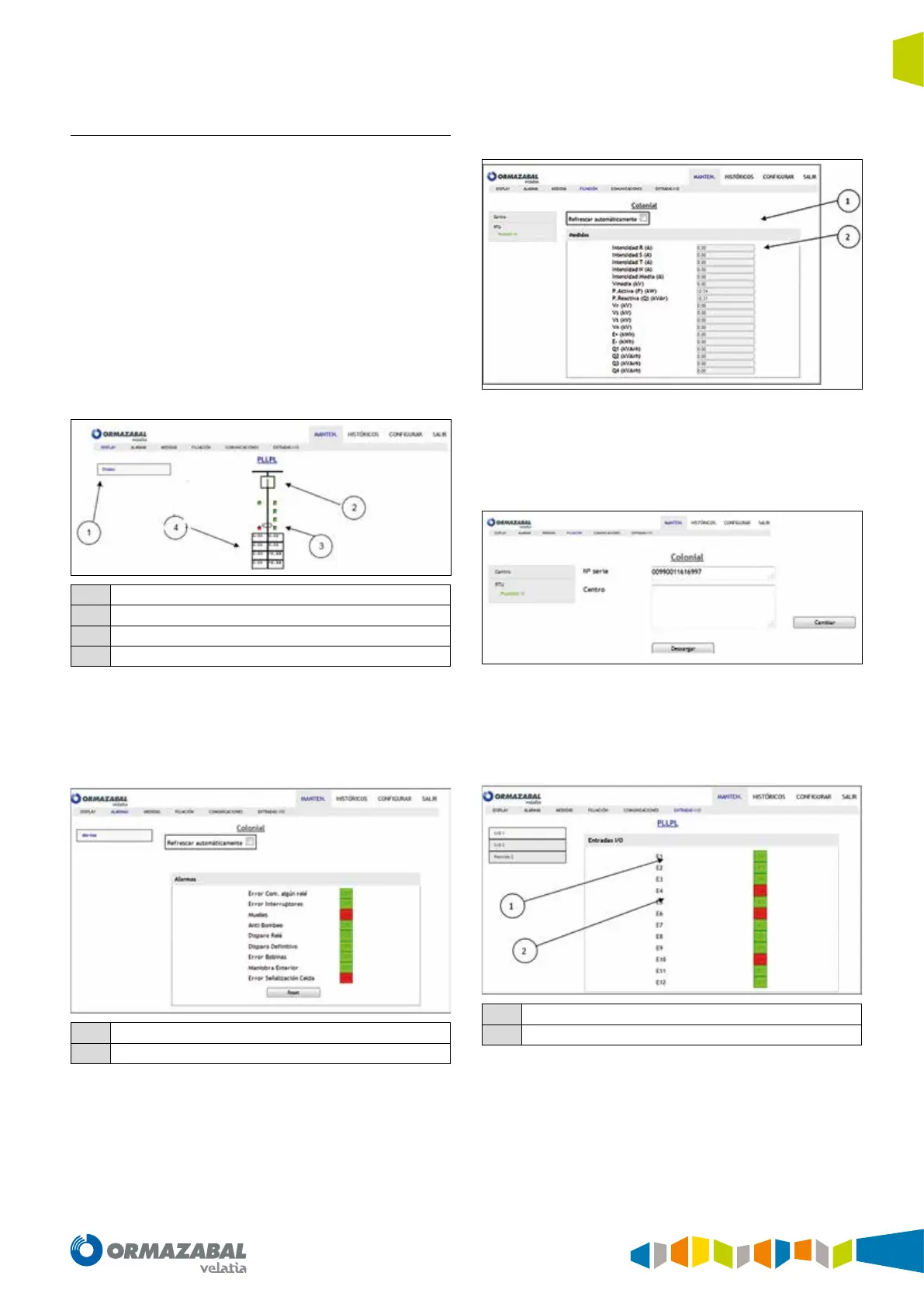

Figure 11.4. Display tab
• Alarms: A list of all the alarms defined and the real-
time status of each one are displayed. When an alarm
is activated, its status changes from OFF to ON and the
alarm box turns red.
1
Active alarm
2
Inactive alarm
Figure 11.5. Alarm tab
• Meterings: The different meterings of the system are
shown.
Figure 11.6. Meterings per cubicle tab
• Filiation: This enables users to enter text giving
information on the substation and on each cubicle in
the installation. The serial number of the ekor.rpa and
the protection units is displayed.
Figure 11.7. Filiation
• I/O inputs: Real-time display of the status of the system's
inputs and outputs. When an alarm is activated, its
status changes from OFF to ON and the indication box
turns red.
1
Input disabled
2
Input enabled
Figure 11.8. I/O inputs tab
