Operator Manual
Chapter: Equipment specifications
13

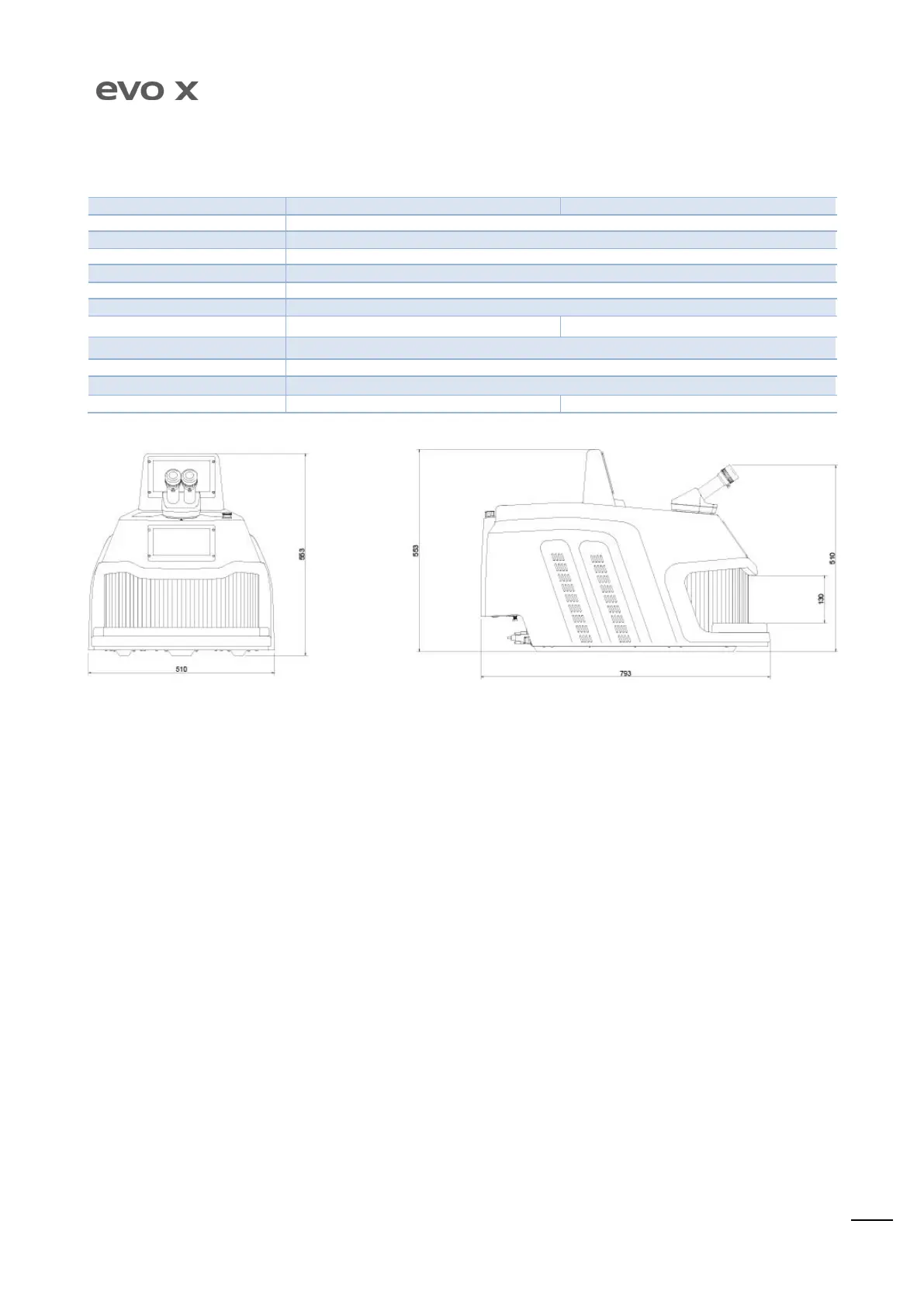

Equipment specifications
Technical specifications
C haracteristics/Model
E V O X
E V O X LYN X
Power supply
Single-phase, 115-230 VAC±10%, 50/60Hz, 1.8kW
Pulse power and duration
225 J at 25 mS
Peak power
9 kW
Average power
90 W
Repetition frequency
40 Hz
Welding spot size
From 0.1 to 2 mm
Stereo-microscope
45° with 10X magnification and crosshair (Leica)
LYNX
Pulse-Shaping Programs
5
Programmable memory cells
100
Tank capacity
4 L
Weight
41 Kg
43 Kg
Applied Standards and Directives:
The equipment has been manufactured in compliance with the provisions of the European Community Low Voltage (LVD) 2014/35/EC,
Electromagnetic Compatibility (EMC) 2014/30/EC and RoHS 2015/863/EC Directives and the following reference Standards:
BS EN 60825-1 Safety of LASER products
Part 1: Equipment classification and requirements
BS EN 61326-1 Electrical equipment for measurement, control and laboratory use. EMC requirements.
BS EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use.
Intended use
Use the equipment to weld specific metal alloys. Only the following alloys can be used:
• Gold
• Silver
• Platinum
• Palladium
• Titanium
• Steel
• Cobalt Chrome (CrCo)
The metals and alloys listed above must not contain any of the metals indicated among those in the "Non-declared uses”.
The protection gas recommended for the welding procedures Argon. Only use original Orotig S.p.A. parts and consumables.
For technical assistance, contact Orotig S.p.A. Once the consumables have worn out, they must be replaced. Follow all of the prescriptions and
the safety standards indicated in this manual.
Non-declared uses
Do not modify the equipment. Do not weld metals or alloys that include one of the following materials: Beryllium, Uranium, Plutonium,
Cadmium, Magnesium, Sodium, Mercury, Potassium, Lead, Arsenic.
