Operator Manual
Display
Operation of the accessories
Using the protection air/gas supplier
All of the Laser Welders are supplied with:
• A pipe to direct the protection air or gas (1).
• An anodised aluminium conical glass slide-holder with quick coupling for the gas/air pipe (2).
• A glass slide-holder flange without dispenser (3).
It is possible to use one system or the other for the supply of the protection gas or cooling air.
The outlet of the gas/air is controlled by a solenoid valve, which is activated by pressing the pedal if the "GAS" parameter present in the work
menu has a value set different to 0. (See "Work Menu" paragraph).
The maximum inlet pressure is 5 Bar. Over-pressure can damage the control solenoid valve.

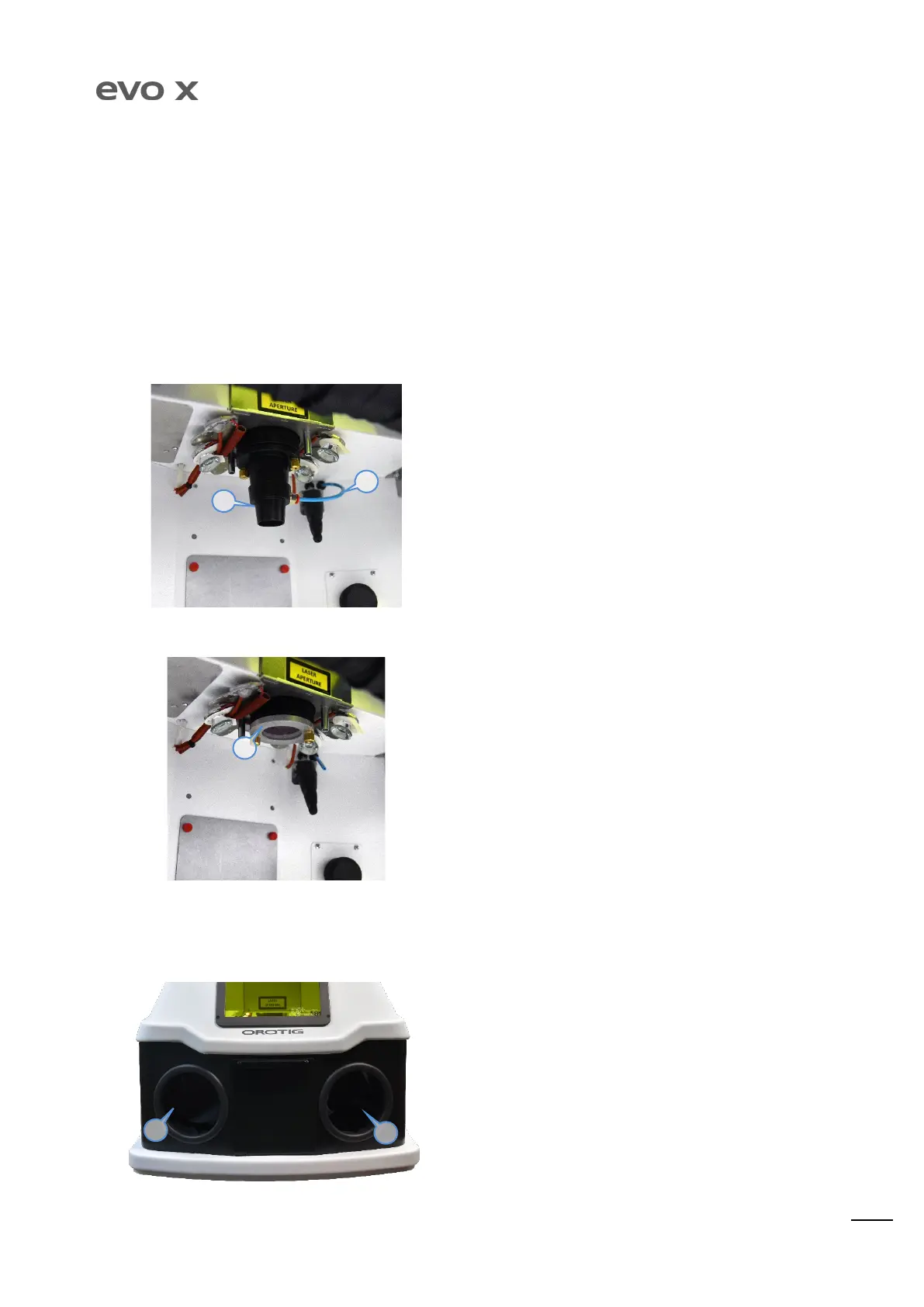

Figure 1 – Example of use of the glass slide-holder with the cone-holder
This configuration is recommended to weld titanium, Cobalt Chrome
and steel.
The pressure advised with the use of protective gas (Argon) is 0.1/0.2
bar. Use the relevant transparent cone inserted into the cone-h older
to convey the flow into the welding point, as shown in figure 1
Figure 2 – Example of use of the glass slide-holder without dispenser
This configuration is recommended for welding Silver or Gold objects.
It is advised to connect compressed air (maximum 4 bar) in order to
cool the metal during prolonged welding phases. (See figure 1 and
2).
Handrail Door (OPTIONAL)
EVO X can be modified adding an handrail door with a chamber leaf (LAC10017) instead of the default protective tents.
The side holes allow the operator to introduce the hands
comfortably, ensuring enviroment protection from LASER emission.
