OSOYOO V2.1 - Lesson 6 Software Installation

66

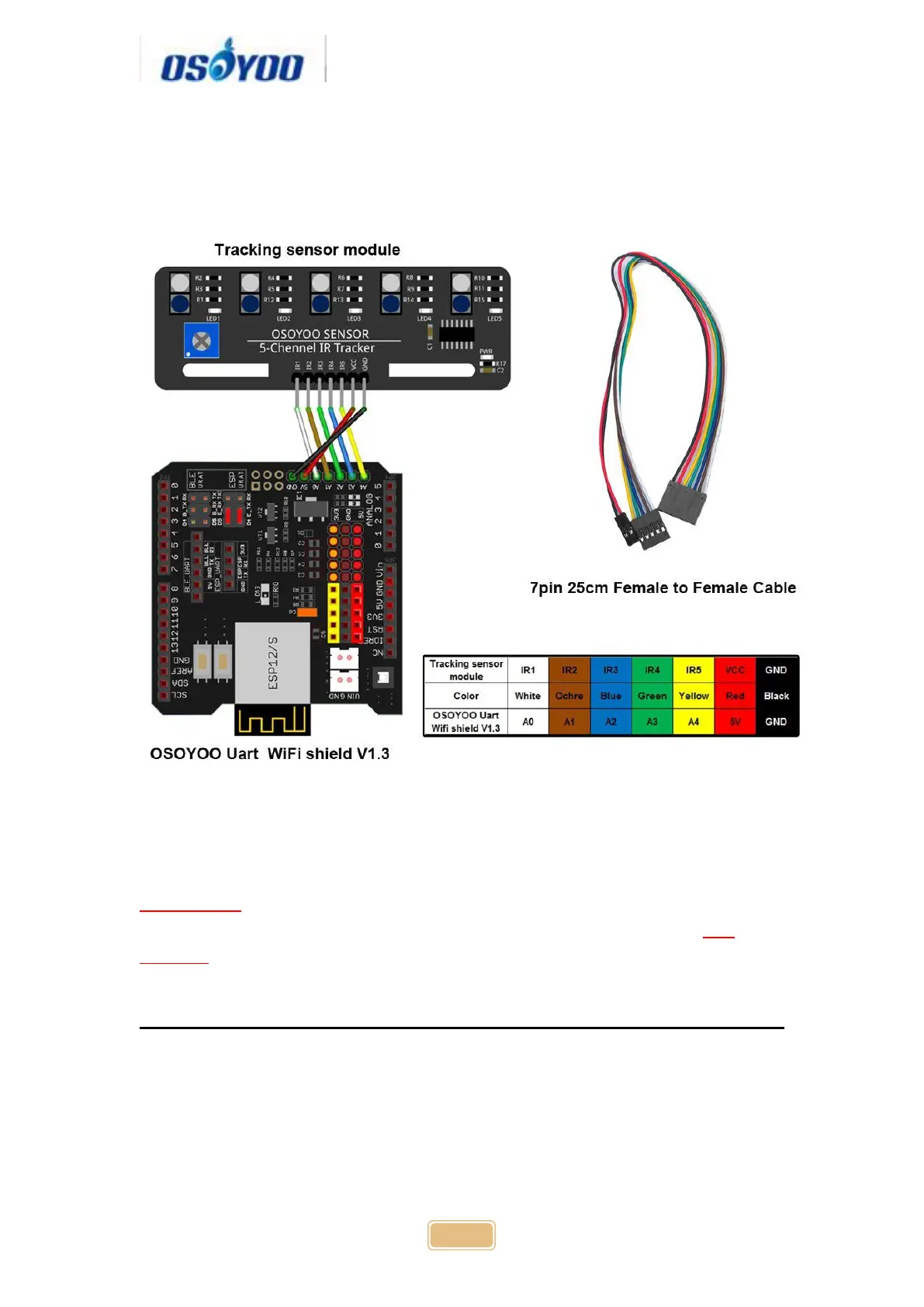

Step 5: Connect tracking sensor module with OSOYOO Uart WiFi shield V1.3
as below connection diagram (If you complete wires in lesson 4, please skip
this step)
Note：
1）Please remember to adjust the sensitivity of tracking sensor modules as
per lesson 4
2）Please remember to do Ultrasonic sensor direction alignment as per
lesson 5
Software Installation
