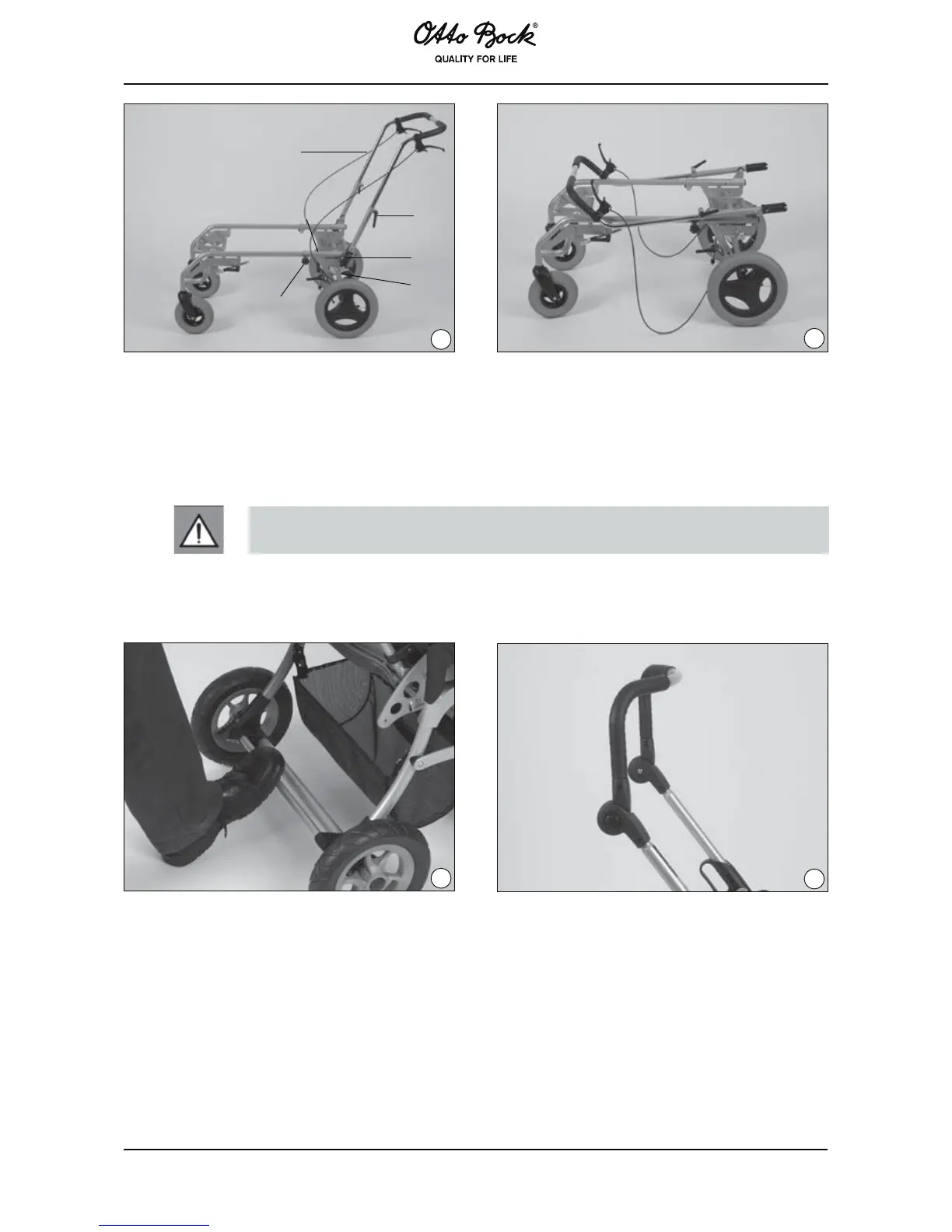

c) Brakes: Inline 32551000 Model
The brakes function both as controlled brake and parking brake. To activate the brakes, pull the
brake handles completely and engage the retaining claw with your index finger. To release the
brake, pull the brake handle slightly and the retaining claw will open.
Attention!
Use both brakes to achieve optimal braking!
All other models: To apply the brake, press the brake bar (Fig. 19) down with your foot. To release
the brake, pull the brake bar upwards with your foot.
19
20
d) Height adjustment of the pushbar: Inline 32551000 Model
The height of the pushbar can be adjusted after releasing the clamping levers (Fig. 17,
item B). All other models: Ratchet joints on the pushbars allow the push handle to be adjusted
to a convenient height.
Press the two push buttons (Fig. 20) on the ratchet joints to bring the pushbar in the desired
position.
