a) Lap belt installation:

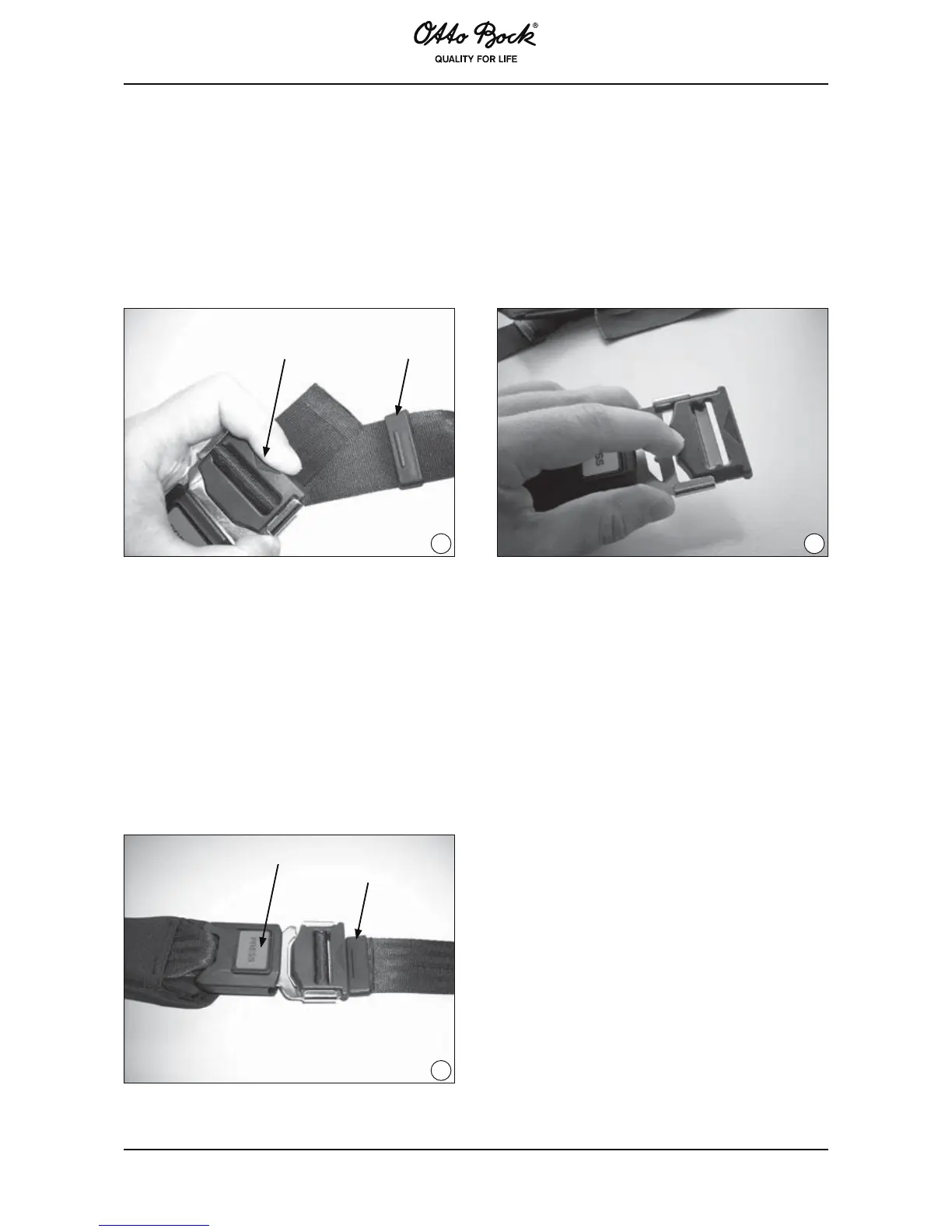

Thread the belt gently through the restraining tab (Fig. 34, item A). Press the buckle together
(Fig. 34, item B) and thread the belt gently out of the buckle. Make sure that you do not slide the
plastic part out of the guide in the metal part (Fig. 35).
Now install the lap belt on the frame. For this purpose, thread the free strap end between the
seat and back to the rear, through the roll loops (Fig. 23), and back between seat and back to
the front. Finally thread the free strap end in the reverse order through the buckle and restrain-
ing tab.
34
A
B
35
b) Lap belt adjustment
The lap belt length is adjusted on the belt buckle. Thread the belt gently through the restraining
tab (Fig. 34, item A). Press the buckle together (Fig. 34, item B) and pull the belt gently in the
desired direction.
During the adjustment, make sure that the strap end protrudes from the buckle 2 cm at least
(Fig. 36, item A). Finally, thread the strap into the restraining tab again.
c) Lap belt use:
To open the belt buckle, press the “Push” button (Fig. 36, item B). To close the belt buckle, slide
the metal tab into the housing until you hear the buckle engage.
