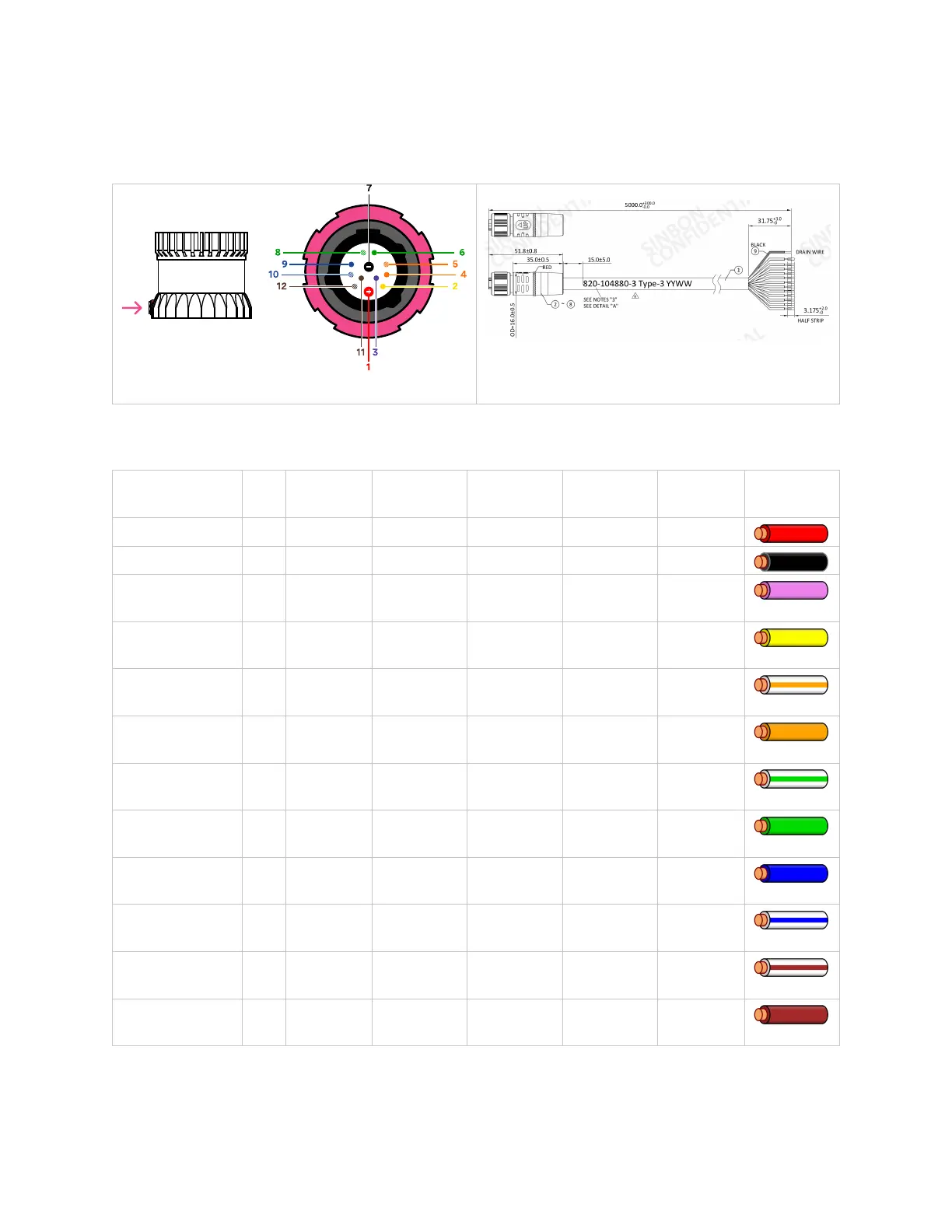

CablePinoutDiagramforType1,2and3(1000BASE-T)
Table4.1: Type1,2,3(1000BASE-T)
Fig.4.1: Type1,2,3(1000BASE-T)
Fig. 4.2: Type 3 Zinc and Stainless Steel CAD
Drawing
Table4.2: PinoutandwiregaugesforTypes1,2,and3(1000BASE-T)cables
Function Pin
No.
Wire
Color
Type-1,
24V
Type-2,
24V
Type-3,
12V
Twisted
with
Color
(Display)
VCC 1 Red 22AWG 22AWG 18AWG N/A
GROUND 7 Black 22AWG 22AWG 18AWG N/A
MULTI-
PURPOSE_IO
3 Purple 26AWG 28AWG 28AWG N/A
SYNC
_PULSE_IN
2 Yellow 26AWG 28AWG 28AWG N/A
Ethernet
BI_DA+
5 White
/Orange
26AWG 28AWG 28AWG Orange
Ethernet
BI_DA-
4 Orange 26AWG 28AWG 28AWG White
/Orange
Ethernet
BI_DB+
8 White
/Green
26AWG 28AWG 28AWG Green
Ethernet
BI_DB-
6 Green 26AWG 28AWG 28AWG White
/Green
Ethernet
BI_DC+
9 Blue 26AWG 28AWG 28AWG White
/Blue
Ethernet
BI_DC-
10 White
/Blue
26AWG 28AWG 28AWG Blue
Ethernet
BI_DD+
12 White
/Brown
26AWG 28AWG 28AWG Brown
Ethernet
BI_DD-
11 Brown 26AWG 28AWG 28AWG White
/Brown
17
