Note: Ouster no longer offers Type 1 & Type 2 cables. Please contact Ouster sales for questions
regardingavailablecabletypes,lengths,connectortypes,andterminationoptions.
Connectors
ConnectivityGuide:
8P8C“RJ45”Jack: Gigabitethernetconnection
6-PinJSTSH/SR:ConnectorforexternalGPS
5.5x2.5mmBarrelJack: DCpowerinput

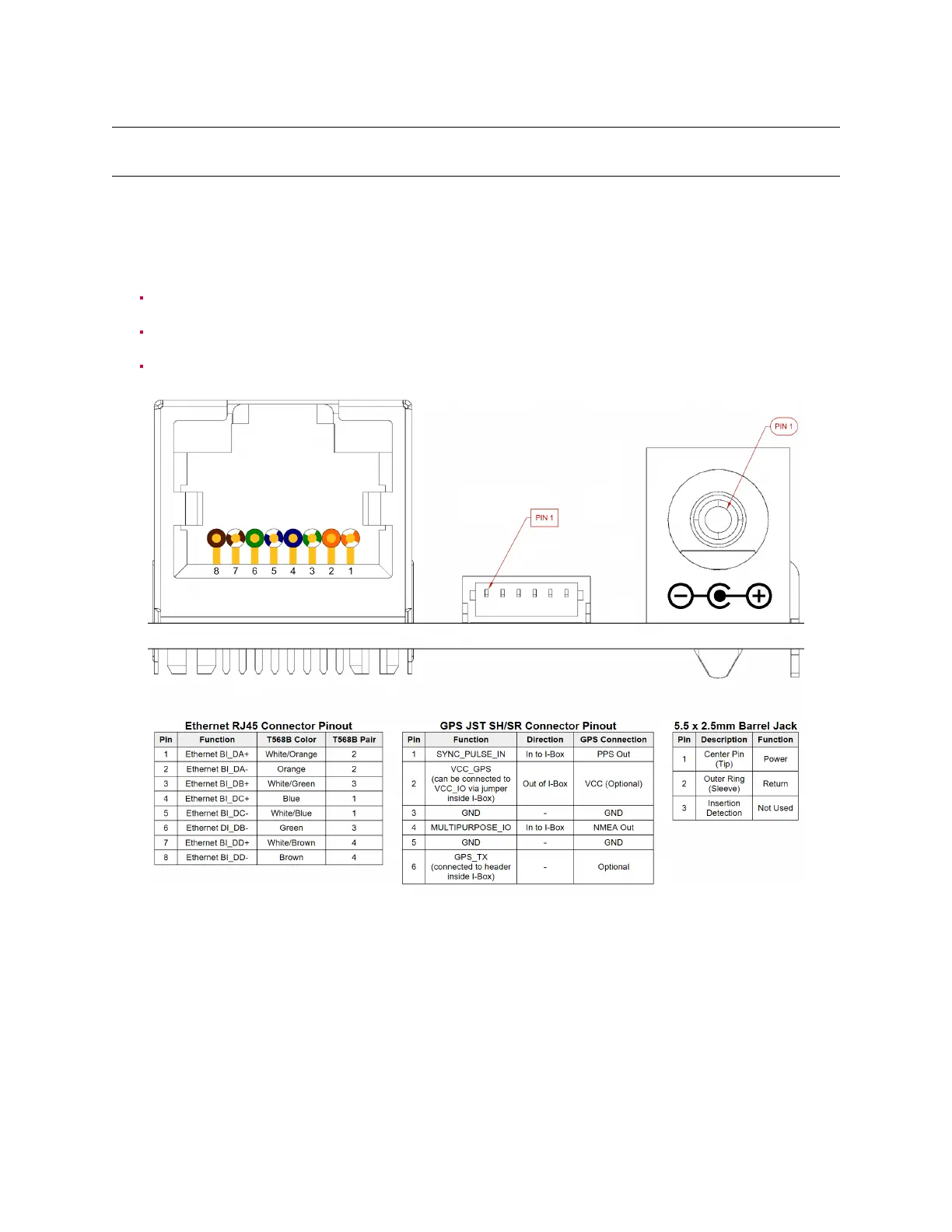

Figure 7.11: ConnectorOutline
