Oval EL1810 - Power Supply Board Setup; 9.5.1 Power to Pulse Generator Configuration; 9.5.2 Flow Signal Input Circuit Setup; 9.5.3 Input Frequency Division (Hardware) Selection

E-215-7-E
26

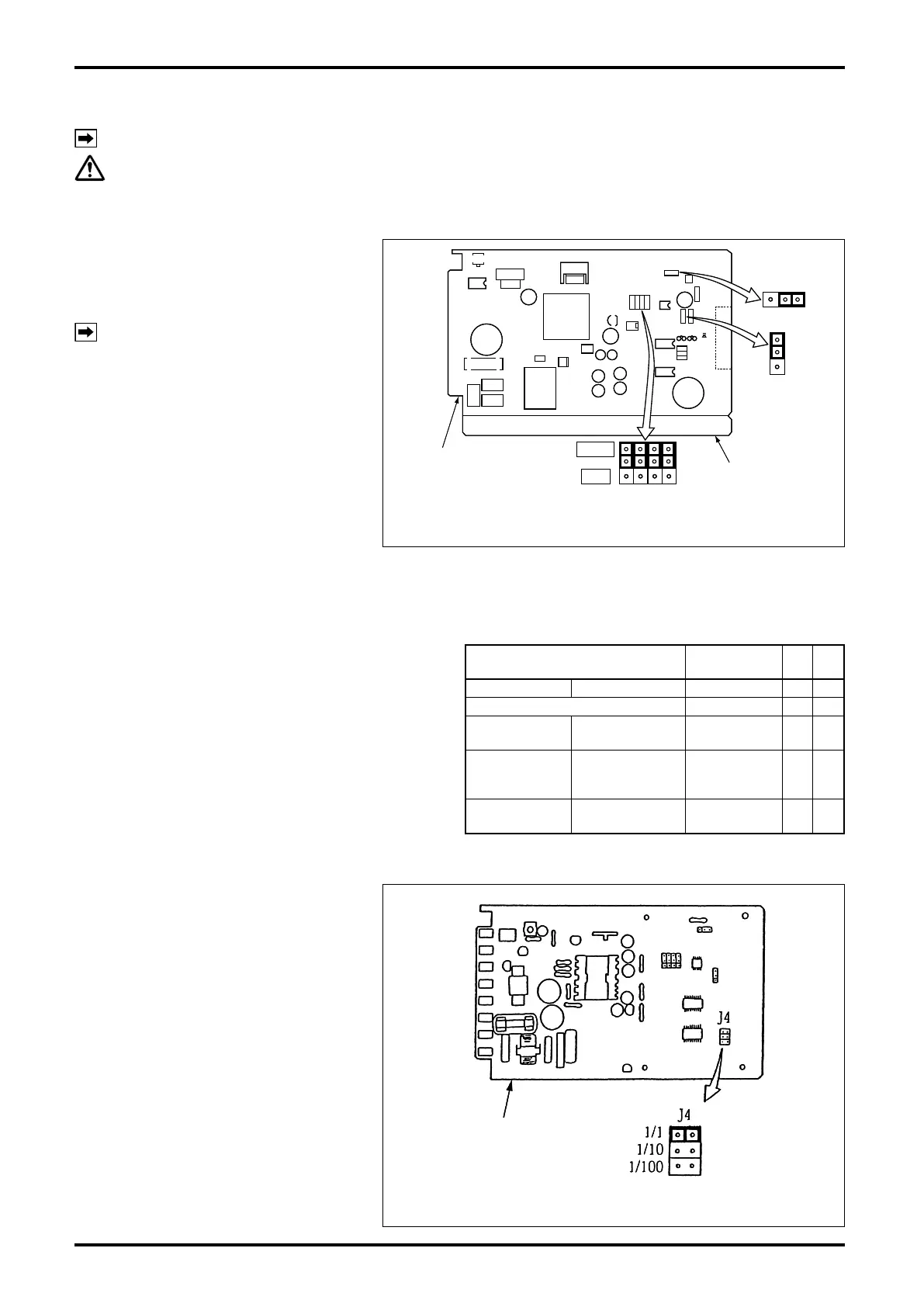

9.5 Setup or Change on the Power Supply Board
NOTE: Remove the power supply board before you set up.
CAUTION: Do not forget to remove power to the instrument before you work.
9.5.1 A change in the Power to Pulse Generator
A change in the power to the pulse
generator is made by changing jumper
J1 positions (4-coupled) on the power
supply board between 13.5V and 24V.
NOTE: Do not fail to replace all four
sockets at the same time.
J1, J2, and J3 in Fig. 9.8
show an example of jumper
positions.
9.5.2 Configuring the Flow Signal Input Circuit for the Companion Pulse Generator
Referring to Table 9.2, set up the ow signal input
circuit for the companion pulse generator.
(See Fig. 9.8 for the location of jumpers J1, J2,
and J3.)
9.5.3 Input Frequency Division (hardware) Selection
Input frequency division (hardware) is
set up by selecting the position of
jumper J4 on the power supply board
for 1/1, 1/10, or 1/100.
Install the jumper socket into one of
positions 1/1, 1/10, or 1/100.
J4 in F ig. 9.9 sh o ws 1 / 1 (d e fau l t
setting).
Fig.9.8 Power Supply Board
(an example of J1, J2, J3 positions)
Card edge connector
to slide into the terminal
block
Power supply board
13.5V
24V
J1
J2
J3
2
12
1
Fig.9.8 Power Supply Board
(an example of J1, J2, J3 positions)
Card edge connector
to slide into the terminal
block
Power supply board
13.5V
24V
J1
J2
J3
2
12
1
Table 9.2
Companion pulse generator
Power to pulse
generator, J1
J2 J3
Contact-closure PG20 13.5V 1 2
2-wire open collector 13.5V 1 1
3-wire open
collector
FLOWPET-EG,
NPG60A(E3)
13.5V
1 1
Voltage pulse
PG30,
NPG60A(F),
Coriolis owmeter
13.5V
1 1
Current pulse
PA14, 15, 25,
NPG60A(E)
24V 2 1
Table 9.2
Companion pulse generator
Power to pulse
generator, J1
J2 J3
Contact-closure PG20 13.5V 1 2
2-wire open collector 13.5V 1 1
3-wire open
collector
FLOWPET-EG,
NPG60A(E3)
13.5V
1 1
Voltage pulse
PG30,
NPG60A(F),
Coriolis owmeter
13.5V
1 1
Current pulse
PA14, 15, 25,
NPG60A(E)
24V 2 1
Fig.9.9 Power Board (an example of J4 setting)
Power supply board
Fig.9.9 Power Board (an example of J4 setting)
Power supply board
