Overhead door CD Series User Manual

Channel
Item Part Name
66 Belt & Bullet Assembly - 7’6” Door
(Belt Models Only)
Belt & Bullet Assembly - 8’ Door
(Belt Models Only)
Belt & Bullet Assembly - 10’ Door
(Belt Models Only)
Belt & Bullet Assembly - 12’ Door
(Belt Models Only)
67 Sprocket Bushing
68 Sprocket, 10 Tooth - 7’6” & 8’ Doors
(Chain Models Only)
Sprocket, 12 Tooth - 10’ Door
(Chain Models Only)
Drive Sprocket, 18 Tooth - 7’6” & 8’ Doors
(Belt Models Only)
Drive Sprocket - 10’ Door
(Belt Models Only)
69 Screw, #10-24 x .50 Hx Hd
70 Sprocket Bracket (Chain Models Only)
Sprocket Bracket - 7’6” & 8’ Doors
(Belt Models Only)
Sprocket Bracket - 10’ Door (Belt Only)
Sprocket Bracket - 12’ Door (Belt Only)
71 Screw, #10-24 x .38 Hx Hd/W
8

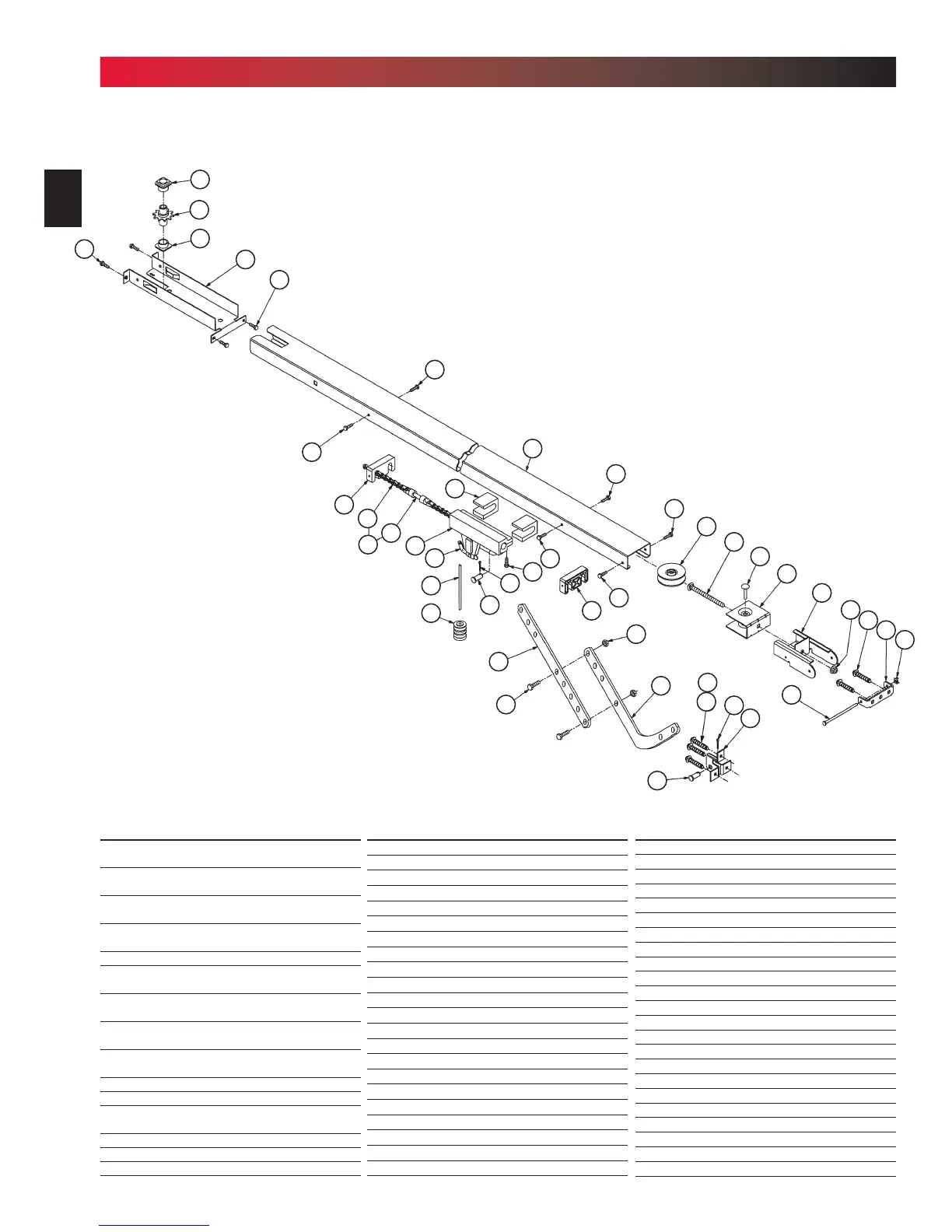

PARTS IDENTIFICATION
FOR HELP—1-800-929.3667 OR OVERHEADDOOR.COM
Item Part Name
72 Channel - 7’6” Door (128” LG)
Channel - 8’ Door (146” LG)
Channel - 10’ Door (170.75” LG)
Channel - 12’ Door (188” LG)
73 Pulley (Chain Models Only)
Pulley (Belt Models Only)
74 Carriage Bolt, 5/16”-18 x 4.0
75 Carriage Pin, 5/16” x 1.25
76 Pulley Bracket Assembly
77 End Bracket
78 Hex Flange Nut, 5/16”-18 (Chain Only)
Flat Washer (Belt Models Only)
(2) Hex Jam Nut, 5/16-18 (Belt Models Only)
79 Lag Screw, 1/4” x 2” Hx Hd/W
80 Header Bracket
81 Speed Nut
82 Cold Header Pin
83 Carriage Stop
84 Roller Chain-7’6”Door (Chain Only)(242.5”)
Roller Chain-8’Door (Chain Only)(278.5”)
Roller Chain-10’Door (Chain Only)(328.5”)
8mm Belt
Item Part Name
85 Chain Bullet
Belt Bullet
Belt Retainer
Screw, #6-32 x 1/2” Phil Pan Hd Slf Tap
86 Carriage Slide
87 Emerg. Release Cord-7’6” Doors (26.5”)
Emerg. Release Cord -8’-10’ Doors (56.5”)
Emergency Release Cord -12’ Doors(96.0”)
88 Emergency Release Knob (Red)
89 Cotter Pin
90 Clevis Pin
91 Screw, 3/8”-16 x .87 Hx Hd Mach
92 Hex Nut, 3/8”-16
93 Curved Door Arm
94 Straight Door Arm
95 Door Bracket
96 Screw, 1/4”-20 x 3/4” Hx Hd, Sf Tap
97 Carriage Assembly
98 Carriage Cap
99 Screw, #10-14 x 1-5/16” Hx Hd
100 Wall Console (Series II )
101 Wall Button (Series II ) (lit primary)
Wall Button (unlit secondary)
Combined Parts List
81
69
71
71
71
73
74
75
76
77
78
79
80
83
71
92
93
90
96
89
95
82
66
85
98
86
97
87
88
90
89
99
71
94
91
70
71
83
84
69
67
68
67
79
65
