Overhead door CD Series User Manual

9

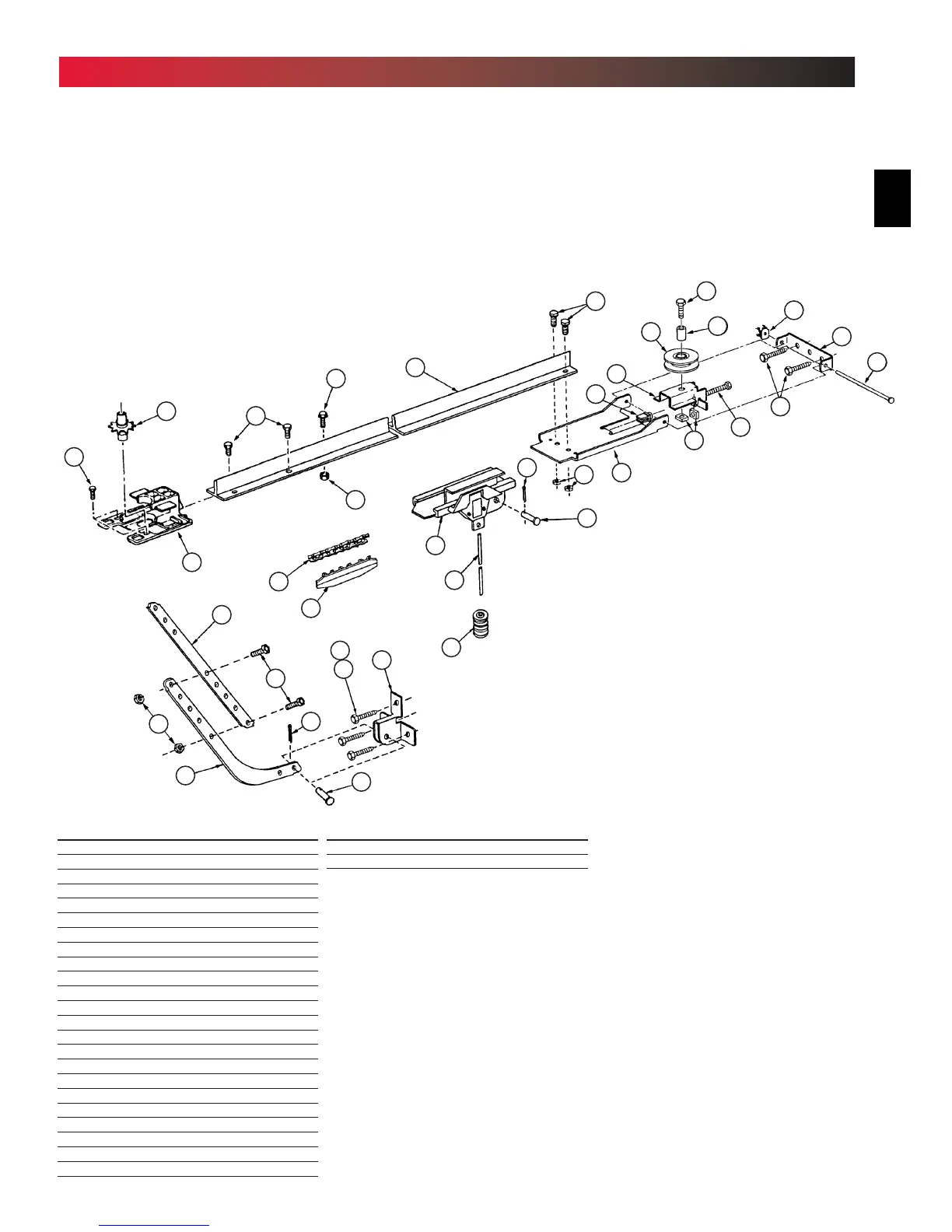

Rail
PARTS IDENTIFICATION
FOR HELP—1-800-929.3667 OR OVERHEADDOOR.COM
Item Part Name
102 Boom Support Kit (not shown)
103 Safety & Maintenance Guide
104 Emergency Release Tag (Tri-L)
105 Entrapment WARNING Label
106 Wire
110 Rail (L=112.475”)
111 Screw, 5/16”-18 x 3/4”
112 Screw, 5/16” x 1/2” HH w/Wshr
113 Pulley Support
114 Chain
115 Sprocket Saddle
116 Screw, 5/16”-18 x 2-1/4” HH
117 Bolt Retainer
118 Screw, 5/16”-18 x 1-1/8” HH
119 Large Pulley Bushing
120 Square Nut, 5/16”-18
121 Screw, 1/4”-20 1” HH
122 Hex Nut/Lockwasher, 1/4”-20
123 5/16"-18 Lock Nut
124 STB System Sensor (Green LED)
125 STB System Source (Red LED)
126 STB Mounting Brackets (2)
68
88
90
95
96
89
93
91
92
11 5
94
114
86
11 0
122
12 1
11 2
69
73
76
11 7
120
11
123
90
89
97
87
82
80
79
11 6
81
11 9
11 8
111
Item Part Name
127 Screw, 1-1/4” Phillips HH
128 Insulated Staples
79
