(3) Press the F1 button to select the Band Limit as full band. The high

frequency of the signal will be allowed to pass.

(4) Press the F2 button to select the Band Limit as 20M. The bandwidth is

limited to 20MHz. The frequencies above 20MHz will be rejected.

Use Mathematical Manipulation Function

The Mathematical Manipulation function is used to show the results of the addition,

multiplication, division and subtraction operations between Channel 1 and Channel 2,

and the FFT operation of Channel 1 or Channel 2.

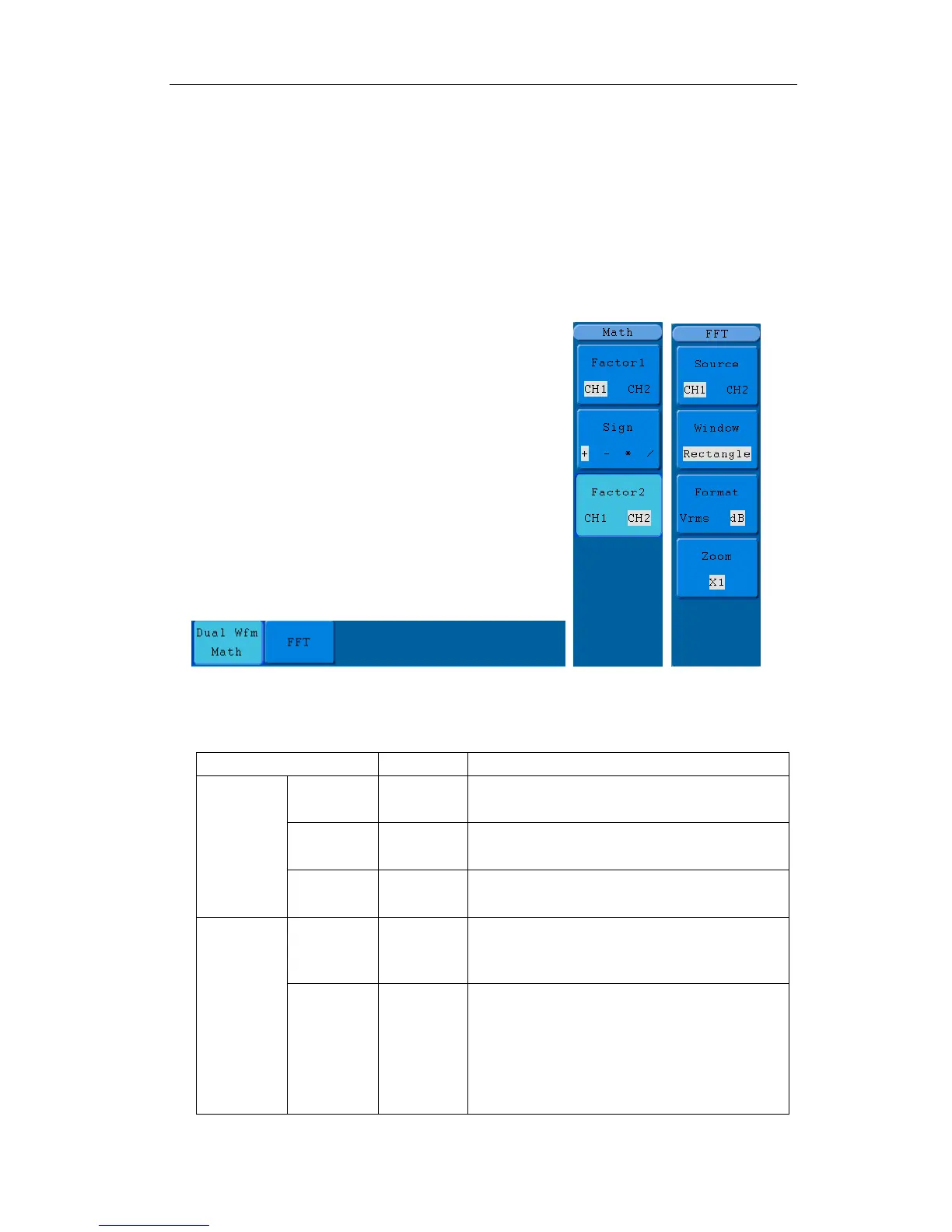

Figure 5-8 Wave math menu

The corresponding FCL (Functional Capabilities List) of the Waveform Calculation:

Function Menu Setting Description

Factor1

CH1

CH2

Select the signal source of the factor1

Sign + - * / Select the sign of mathematical manipulation

Dual Wfm

Math

Factor 2

CH1

CH2

Select the signal source of the factor2

Source

CH1

CH2

Select CH1 as FFT source.

Select CH2 as FFT source.

FFT

Window

Rectangle

Blackman

Hanning

Hamming

Select window for FFT.
