6.Communication with Android Device via Wi-Fi (Optional)

107

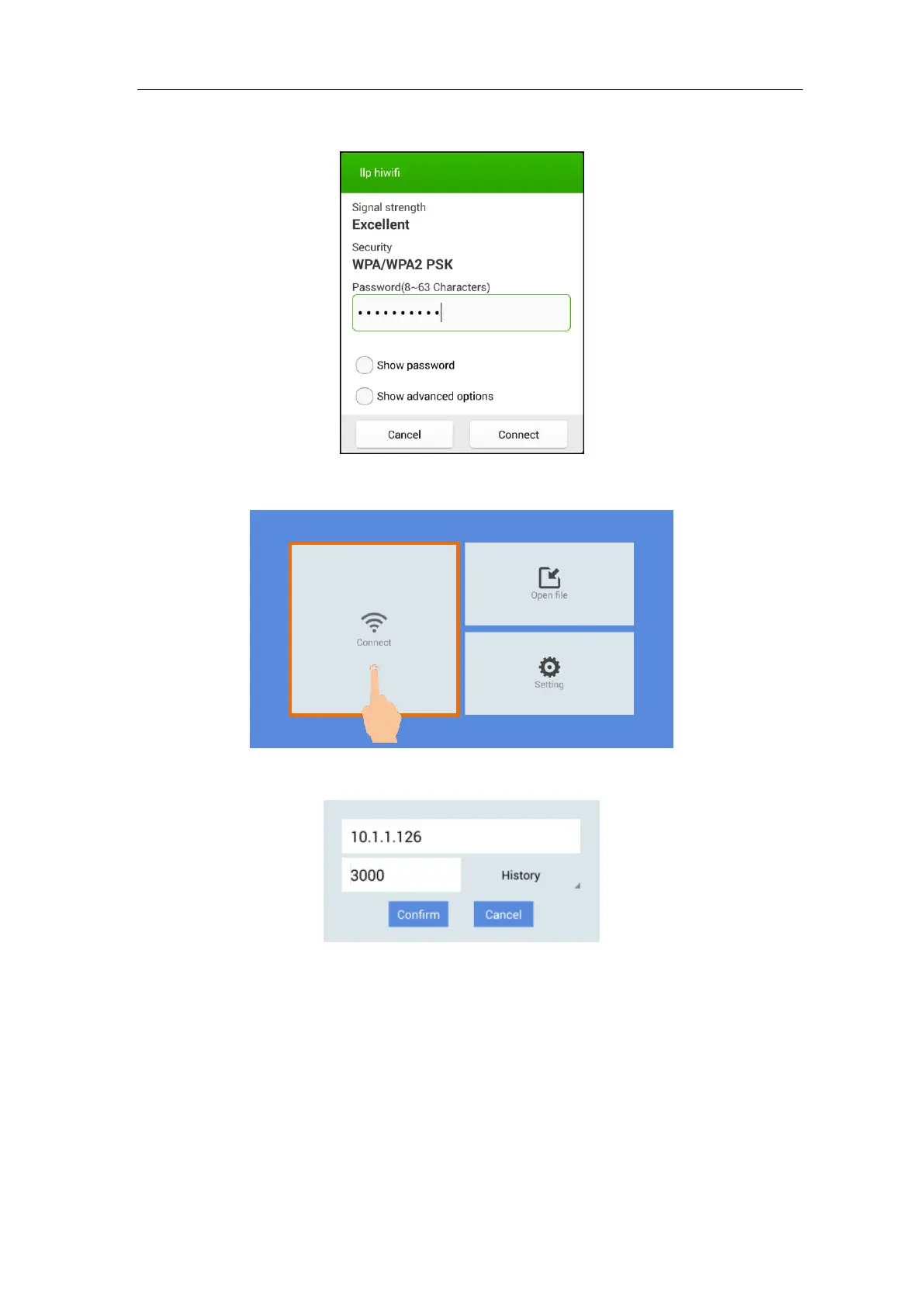

(7) In Android device, enter the Wi-Fi settings, select the oscilloscope access point

to connect, enter the set password.

(8) In Android device, launch the application.

(9) Click connect on the left.

(10) Set IP and Port to the same value as the setting in the oscilloscope. Click

Confirm to connect. Click History to recall the history settings.
