4.Advanced User Guidebook
(4) Select Ratio from the bottom menu, select the vertical magnification in the left
menu. The voltage scale of the magnifier window will also change accordingly.
(5) Select Window from the bottom menu. Select Vertical in the right menu, click
or to adjust the vertical position of the selection. Select Hori in the right
menu, click or to adjust the horizontal position of the selection; you can
also turn the upper knob to adjust it.
Magnifier settings menu description：
Turn on Magnifier
Turn on Horizontal Zooming.
Set the vertical magnification. Because the
magnifier window size does not change, the
larger this multiple is, the smaller the vertical
height of the waveform selection area is.
Set the vertical and horizontal position of the
selection.
Horizontal
zoom factor
Vertical zoom
factor
Time base of
Magnifier window
Voltage division of
Magnifier window
Main Window
Magnifier Window
Wave selection
(Drag it to move)

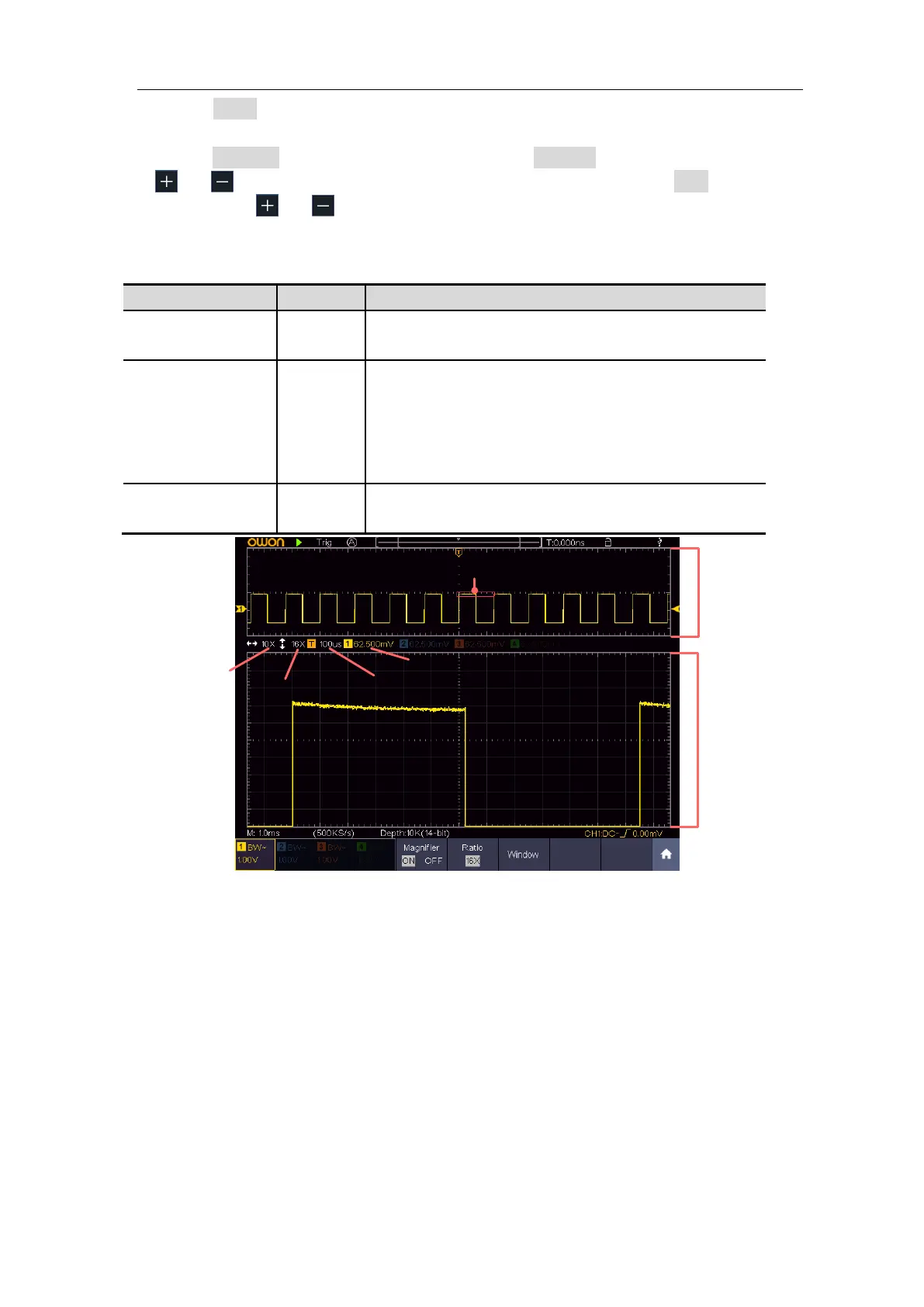

Figure 4-3 Magnifier Mode
Note：
When the waveform is stopped, if the channel voltage scale is changed,
the magnifier function will be turned off.
You can drag the red selection box directly.
It is recommended to set the performance mode to 14-bit, the effect after
amplification is better.
When the wave selection is small, a dotted box appears outside the
selection to make the selection more recognizable.
