Owon TAO3000 Series User Manual

4.Advanced User Guidebook
39

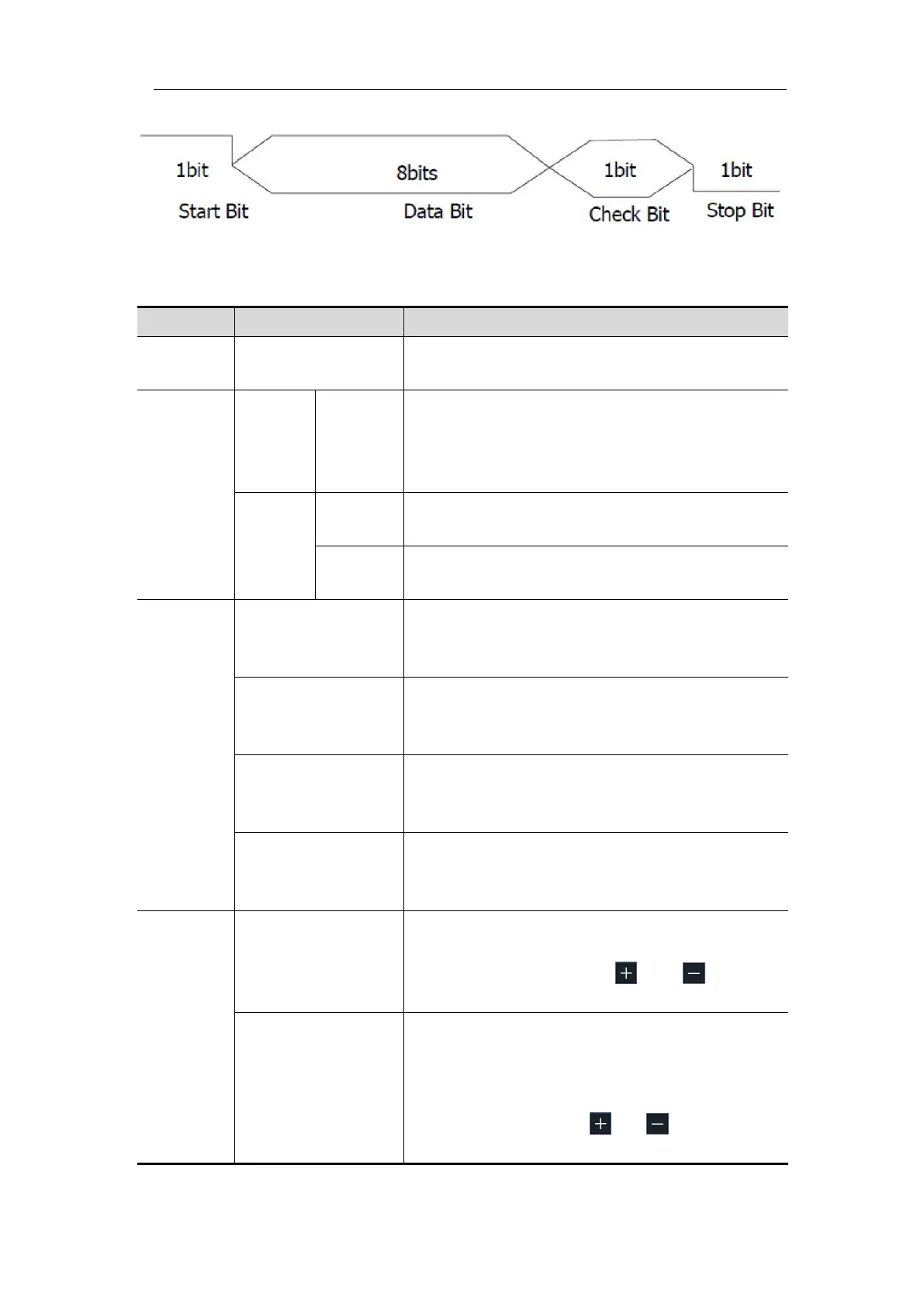

UART Trigger
UART Trigger menu list:
Menu
Setting
Instruction
Bus Type
UART
Set vertical channel bus type as UART
trigger.
Input
Source
CH1
CH2
CH3
CH4
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Select CH3 as the trigger source.
Select CH4 as the trigger source.
Polarity
Normal
Select polarity of data transmission as
Normal.
Inverted
Select polarity of data transmission as
Inverted.
When
Start
Trigger on the start frame of position. After
choosing this condition, press Configure to
enter detailed settings.
Error
Trigger when error frame is detected. After
choosing this condition, press Configure to
enter detailed settings.
Chk Error
Trigger when Chk Error is detected. After
choosing this condition, press Configure to
enter detailed settings.
Data
Trigger on the last bit of the preset data.
After choosing this condition, press
Configure to enter detailed settings.
Configure
Start
Common Baud: click in the left menu to
choose common baud.
Custom Baud: click or choose
baud, ranges from 50 to 10,000,000.
Error
Stop Bit：Select “1” or ”2”.
Parity: Select None, Odd, or Even
Common Baud: click in the left menu to
choose common baud.
Custom Baud: click or to choose
baud, ranges from 50 to 10,000,000.
