15

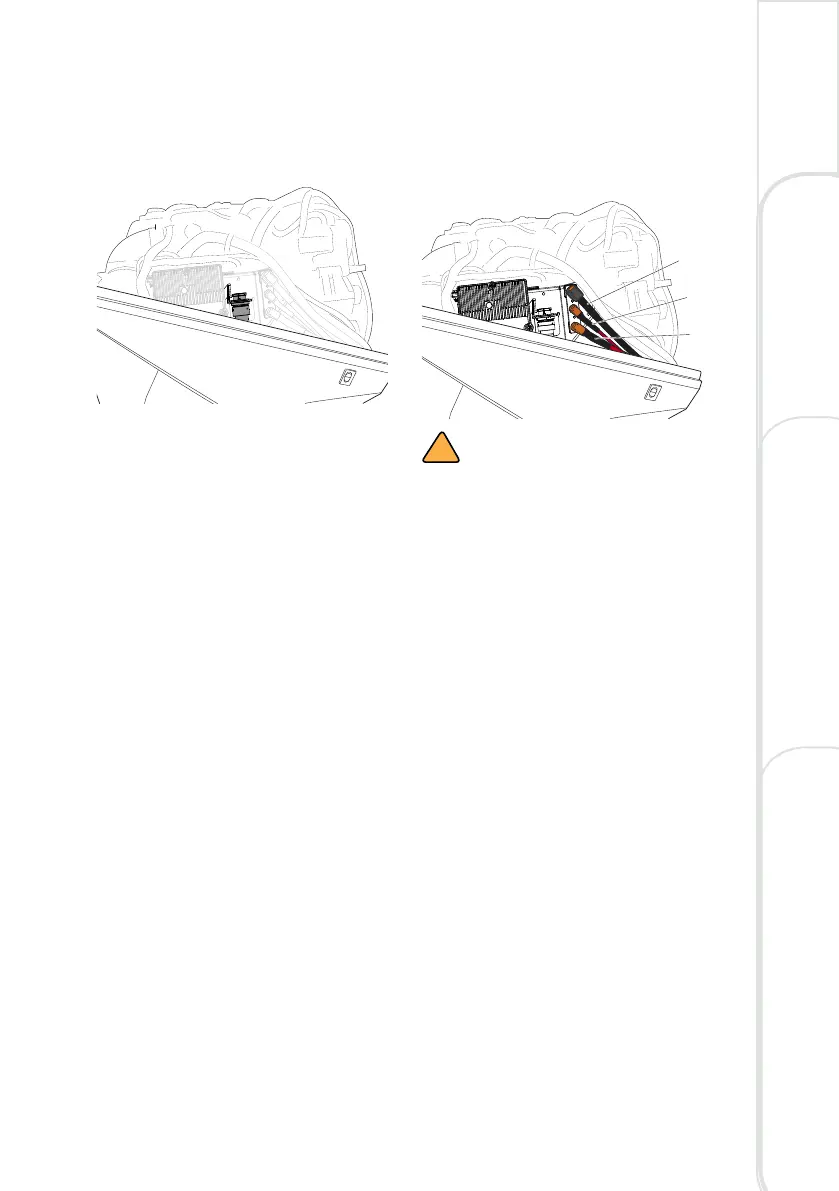

Engine connector
Connect the helm harness to
the engine harness. Refer to
Installation Manual.
Connecting the battery
3
2
1
!
CAUTION
Make sure the main switch is OFF
before working on the battery
connections.
1. Connect the largest cable,
black, (black connector) (1) to
the upper end pin connector.
Make sure it ”clicks”!
2. Connect the smaller red cable
(red connector) (2) to the
center pin connector. Make
sure it ”clicks”!
3. Connect the larger red cable
(red connector) (3) to the
lower end pin connector. Make
sure it ”clicks”!
Also read the Installation Manual,
section Power cable Installation
Process to learn more details about
connecting power to the outboard.
Technical data
Maintenance
Operating
Overview
