Replace hydraulic oil and filter
!
WARNING
The hydraulic oil filter is
pressurised. Before removing it
the pressure must be released.
1. Turn the ignition ON and shi
gear a couple of times from
forward to backward.
2. Tilt the outboard in order to
minimize any oil spill. Remove
the oil plug and washer. Drain
the oil into a suitable container.
3. Carefully clean the area
around the hydraulic oil filter
with pressurised air.

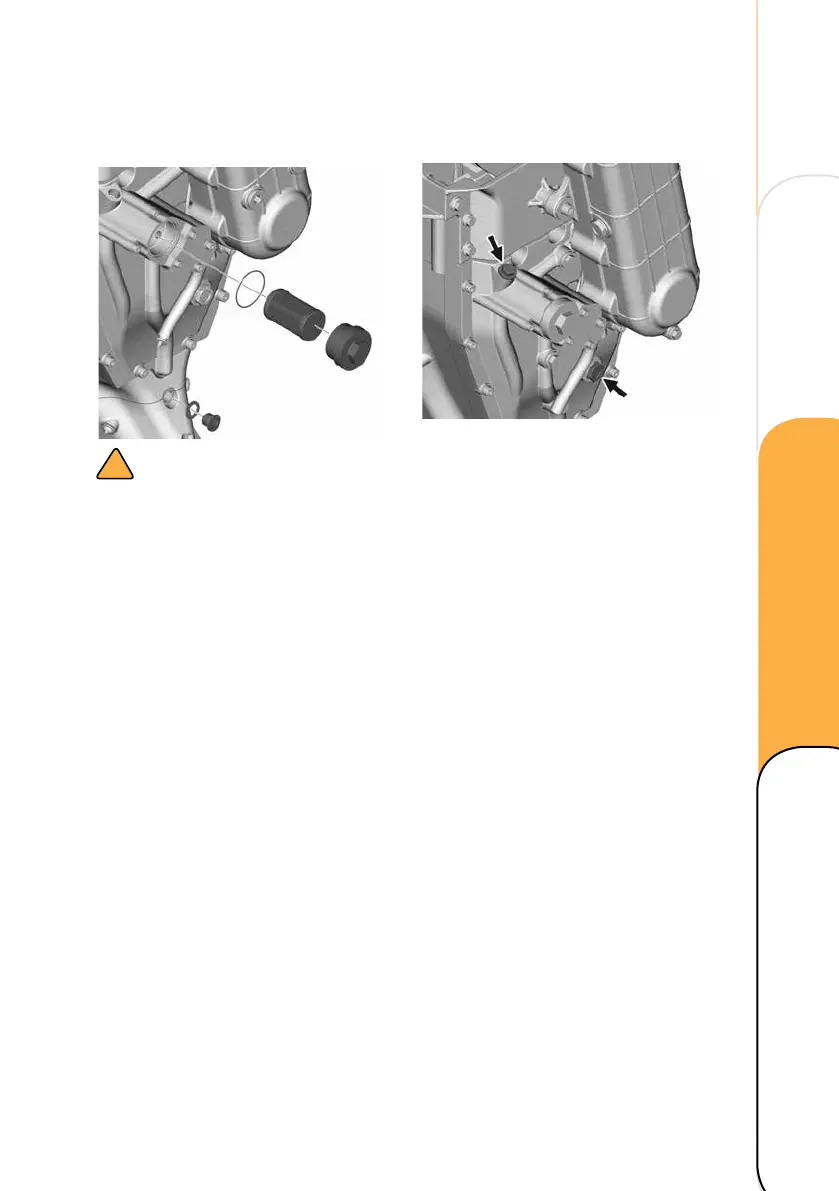

4. Remove the filter cap. Have a
cloth nearby to collect the oil in
the filter.
5. Install a new filter and reinstall
the filter cap. Tightening torque
70 Nm (51.2 -lb).
6. Clean and reinstall the oil
plug. Install a new gasket.
Tightening torque 30 Nm (6.6
-lb).
Refill hydraulic oil
1. Unscrew the oil filling plug.
2. Use an oil filling device to fill
up hydraulic oil through the oil
filler pipe.
3. Wipe clean.
4. Check the hydraulic oil level
through the sight glass.
5. Fill up if necessary.
