15
Engine connector
Connect the helm harness to the engine
harness. Refer to Installation Manual.
Connecting the battery
!
CAUTION
Make sure the main switch is OFF before
working on the battery connections.

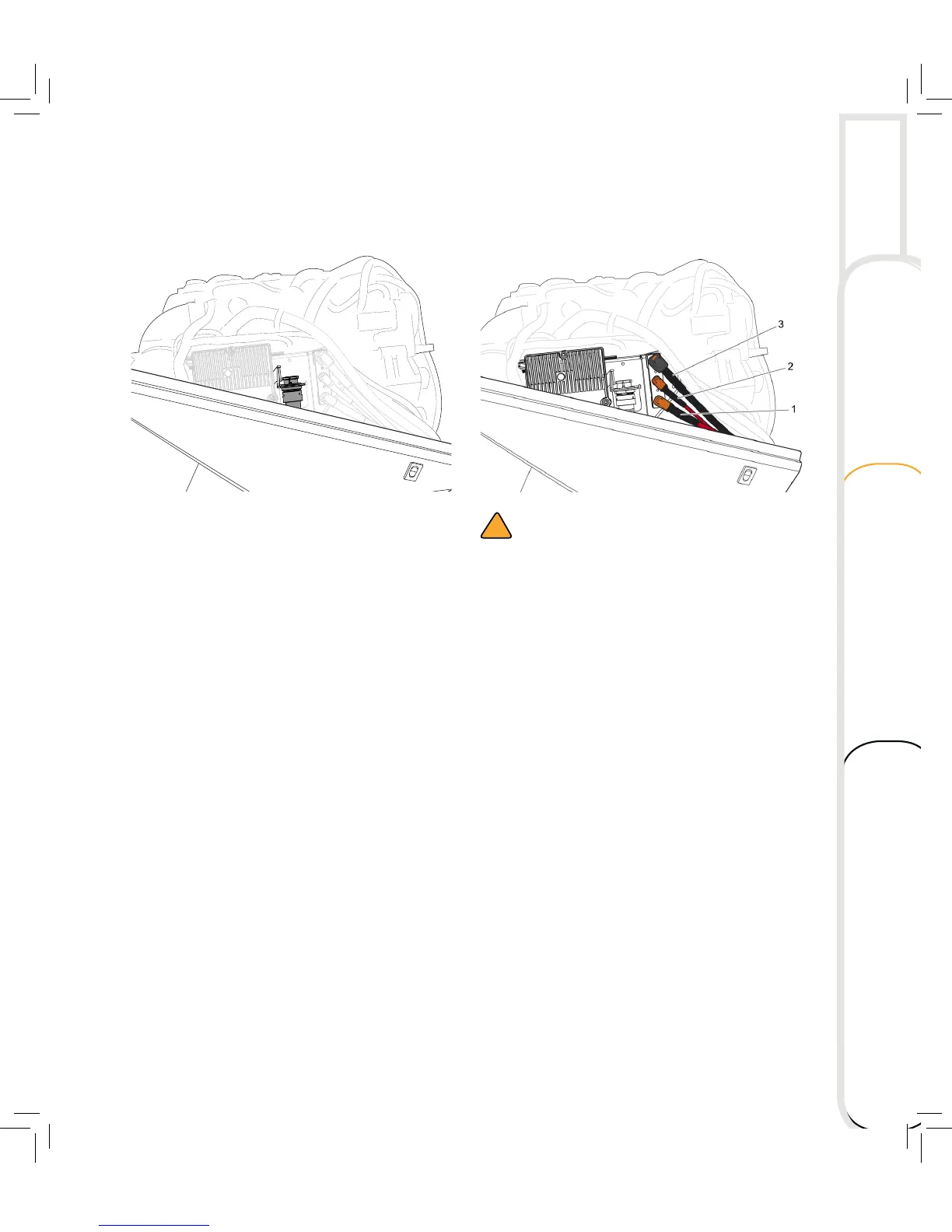

1. Connect the largest cable, black, (black
connector) (1) to the upper end pin
connector. Make sure it ”clicks”!
2. Connect the smaller red cable (red
connector) (2) to the center pin connector.
Make sure it ”clicks”!
3. Connect the larger red cable (red
connector) (3) to the lower end pin
connector. Make sure it ”clicks”!
Also read the Installation Manual, section
Power cable Installation Process to learn
more details about connecting power to the
outboard.
