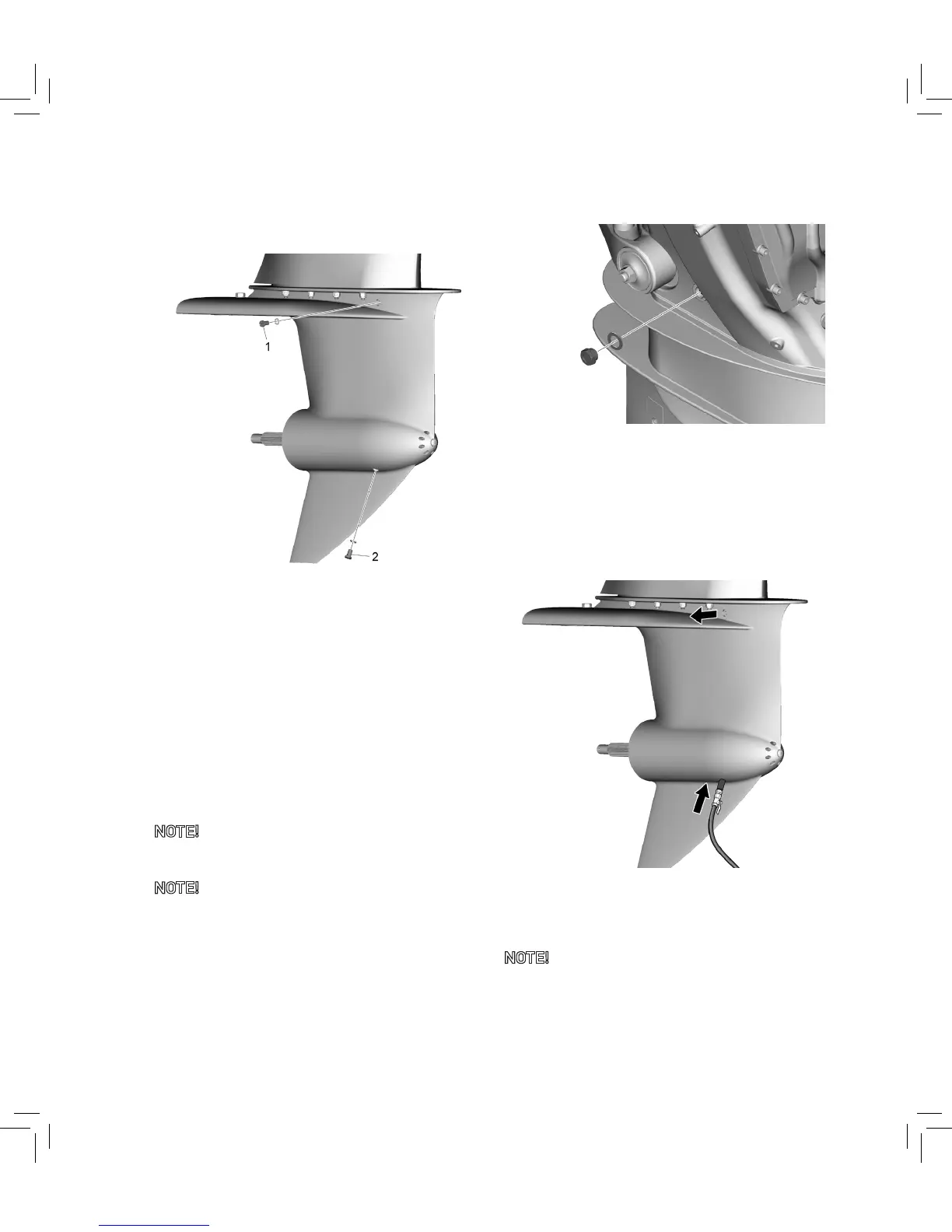

Change lower belt oil
1. Remove the magnetic plug and washer (1)
above the anti-cavitation plate.
2. Remove the magnetic plug and washer (2)
under the propeller sha housing. Drain
the oil into a suitable container.
3. Check drained oil quality:
The oil should be red to dark red.
If the oil looks milky and foamy, water
has entered the lower housing. Check for
leakage!
NOTE! Discard belt oil according to local
legislation!
NOTE! Clean the magnetic oil plugs. Install new
washers.
4. Reinstall and tighten oil plug (2) to 9 Nm
(6.6 -lb).
5. Remove the sight glass and washer.
Fill up with belt oil until the oil comes
out at the upper oil plug (1). Refer to
Recommended fluids and grease.
6. Clean the sightglass. Install a new
washer. Tighten to 16 Nm (11.8 -lb).
1. Alternatively, use an oil filling device and
fill up the oil through the oil plug hole (2)
until oil comes out at oil plug hole (1).
NOTE! Clean the magnetic oil plugs. Install new
seals.
2. Remove the filling hose and tighten oil
plug (2) and (1) to 9 Nm (6.6 -lb).
