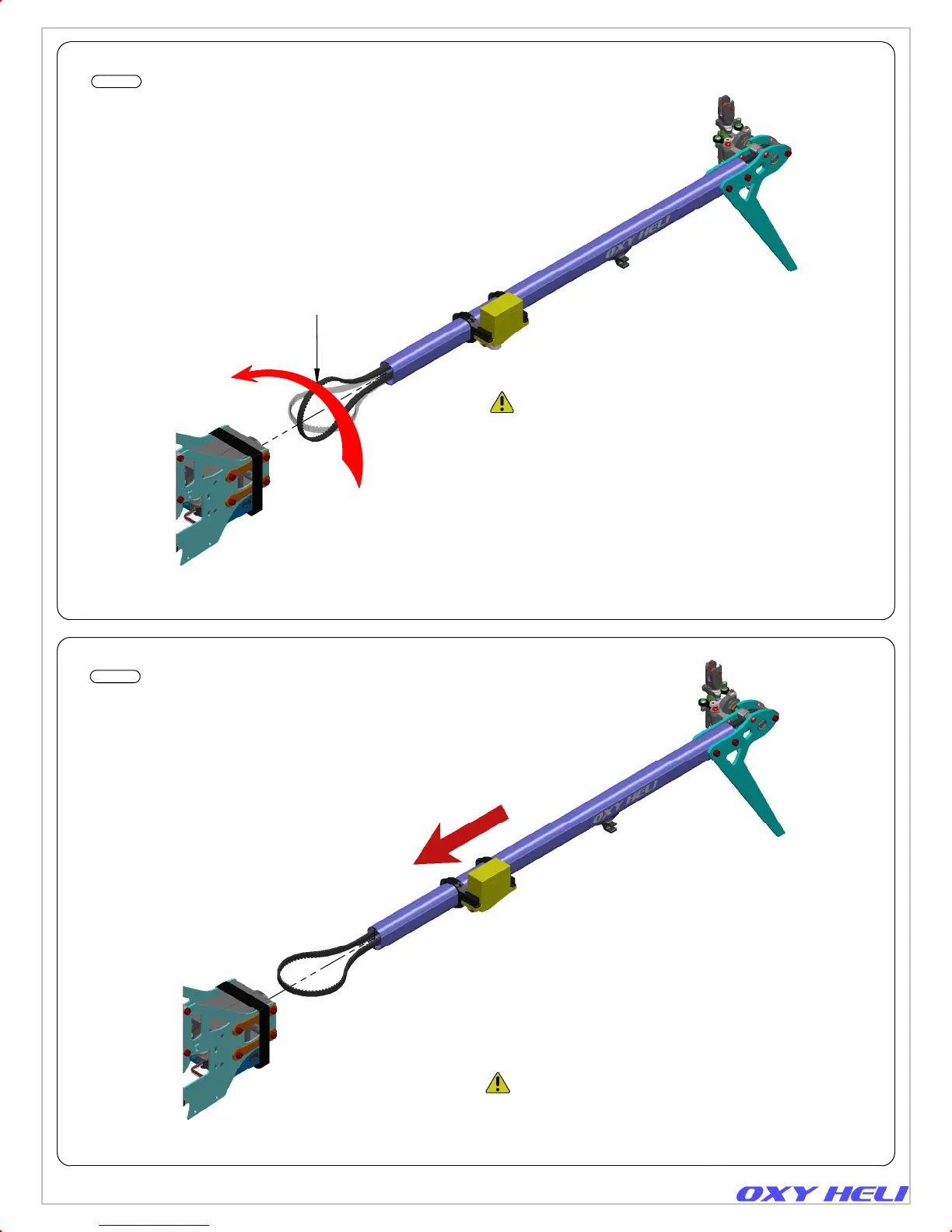

Rotate belt as shown
Belt Adjustment.
In this picture tail belt is showed straight as
come form the tail pulley, be careful to check
twice that belt don't have twist inside the boom.
Use light to watch inside the boom.
Be sure to rotate the bell 90 degrees as
shown. When holding the boom with the
tail case away from you, rotate the belt 90
degrees counter clockwise.
Step 1
Belt Adjustment.
Step 2
Page 19
Note: with belt in this position, insert
carefully the tail and finalize assembly
following next step.
Unlock Tail Boom Clamp screws for easy
insert.
Chapter 13, Transmission Assembly
