OXY0076
M2X10 Shoulder
Hex Cap Screw
OXY0038
Auto Rotation Spacer
See Position Note.
Lock Nut M2
Note: hole's position on main shaft.
Note: In order to help installation
and locking Jesus Bolt use small
pliers to hold Lock Nut M2 during
install.
OXY0003
Main Shaft
Note: Auto Rotation
Spacer's position:
5 mm
6.9 mm
This hole install
with center hub
This hole install
with main gear
Bottom Surface
Top Surface
Page 20

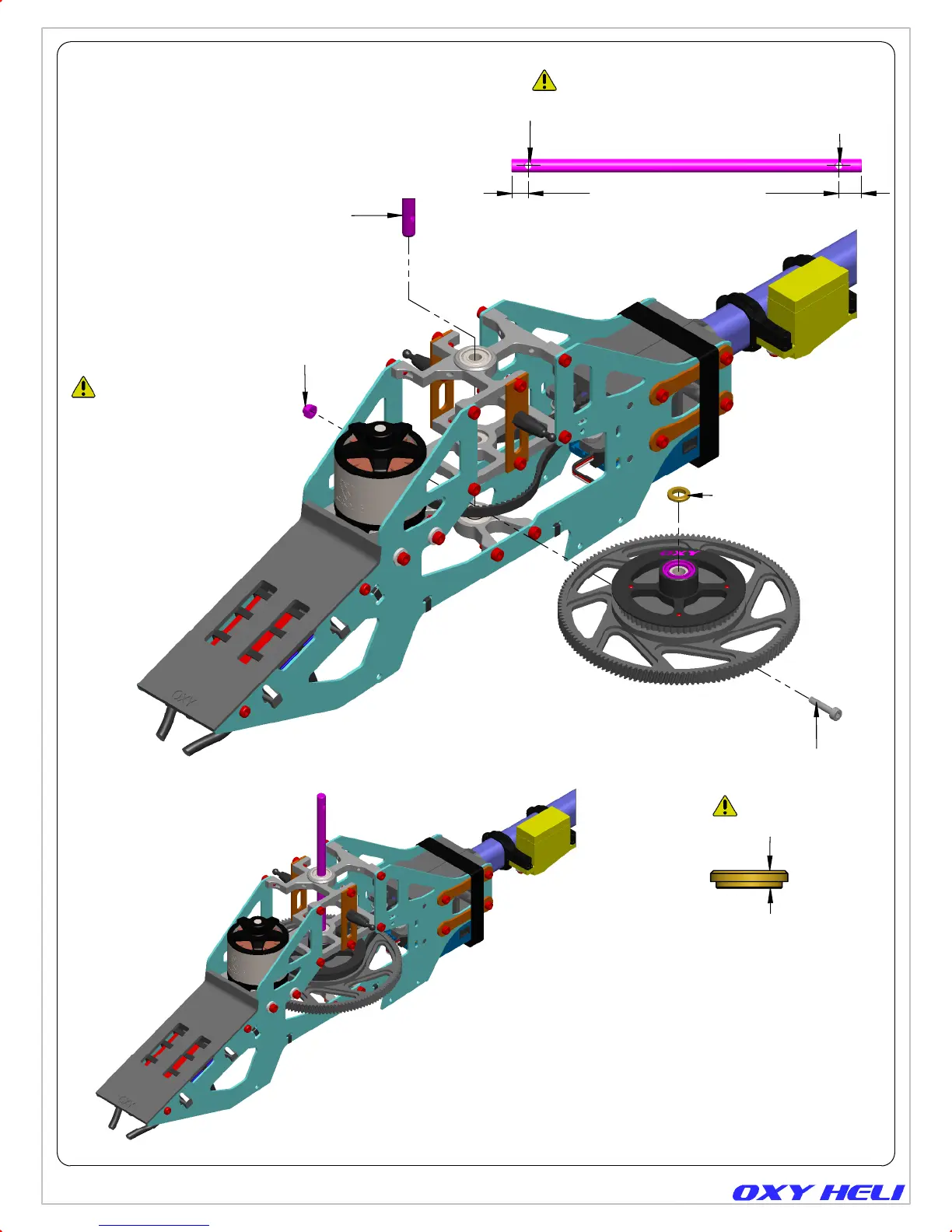

Install Main Gear, Main Shaft into Main Frame.
Box 02 / Bag 9-1
CNC components
( )
Chapter 13, Transmission Assembly
To Next Page
