C
B
A
Free Gap around 0.5mm
OXY0004
HD Main Shaft Lock Ring
2 x SCM3X3
Set Screw M3X3

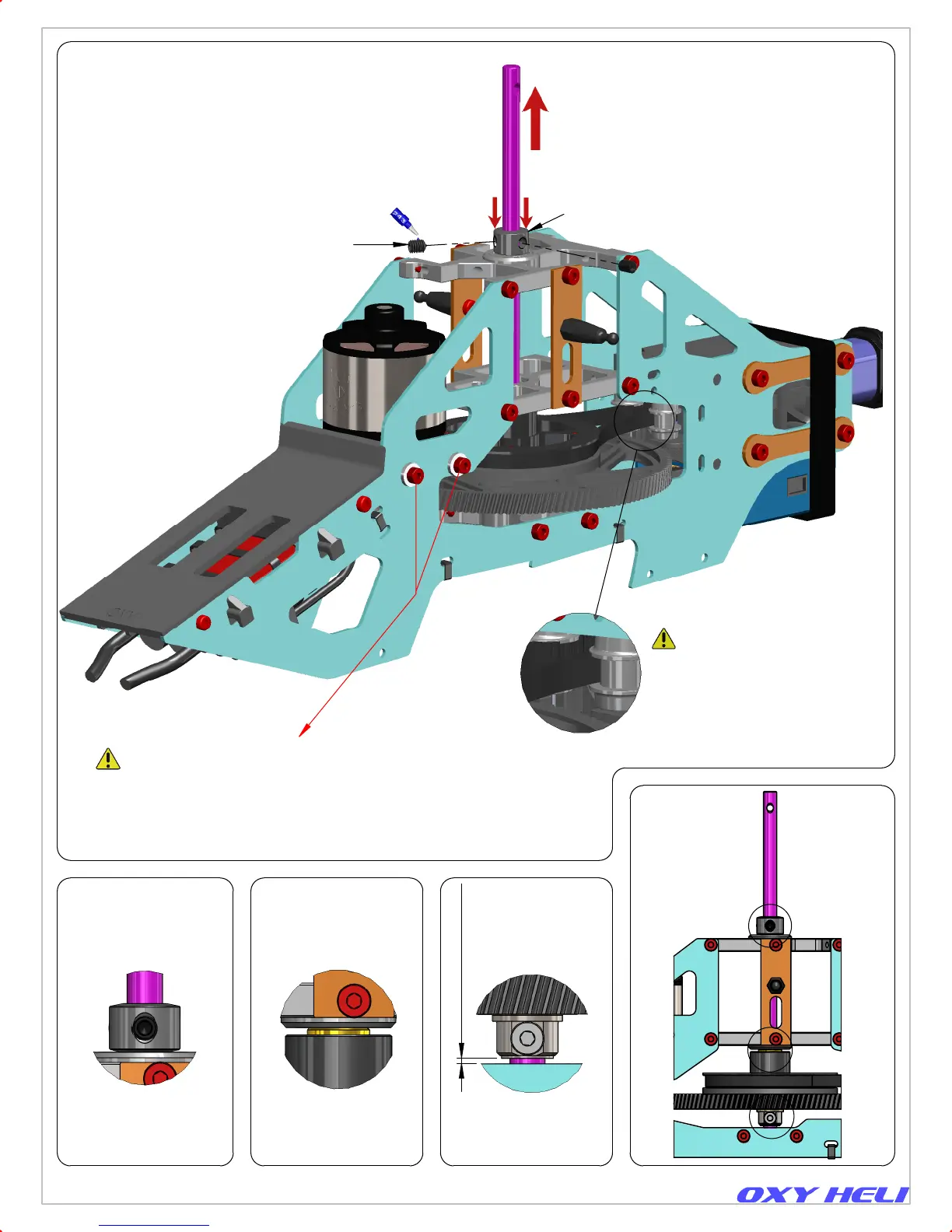

Pull up Main Shaft
Push down Main Shaft Lock Ring
Install Main Shaft Lock Ring into Main Shaft.
Tail Belt Pulley Note:
Before Belt tension, assure perfect
fitting between Pulley and Belt.
DETAIL A
DETAIL B
Page 21
DETAIL C
Once Main Shaft is lock, adjust Main Gear mesh and lock Motor Mount.
Pinion and Main Gear must have little play. Don’t use the paper system,
is not suggested for Oxy 3 Slant Main gear with 0.5mm Pitch.
Adjust the mesh that give very little amount of play.
Before to lock completely Motor Mount, test the play all around the Main Gear.
In case re adjust. To increase system efficiency the main gear must rotate free
without mesh binding.
Chapter 13, Transmission Assembly
