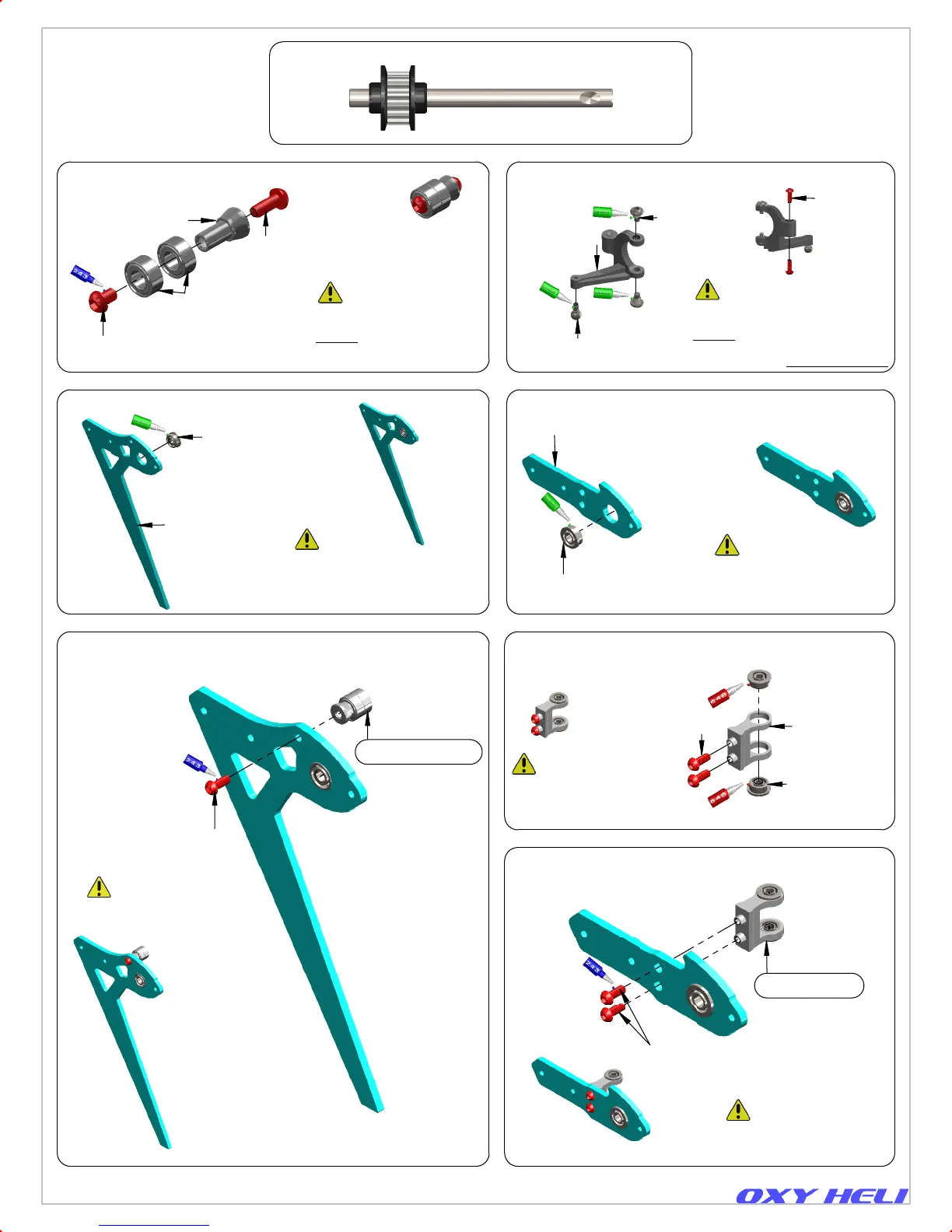

OXY0069
Vertical Fin Block
MF73ZZ
Flange Bearing
3x7x3
Tail Case Plate Assembly.
(Carbon Fiber parts)
OXY0070
Tail Case Bearing Block
MF73ZZ
Flange Bearing
3x7x3
TBEM2X5
Button Hex Cap
Screw M2X5
Pre tentioner Belt
Pulley Assembly
Pre Tensioner Belt Pulley Assembly.
2 x TBEM2X5
Button Hex Cap
Screw M2X5
Bell Crank
Arm Assembly
OXY0071
Bearing Bushing
2 x MR52-W2.5
Radial Bearing
3X6X2.5
TBEM2X3
Button Hex Cap
Screw M2X3
TBEM2X5
Button Hex Cap
Screw M2X5
OXY0056
Tail Bell Crank
2 x OXY0057
Tail Pin Screw
OXY0092
4X2X4.2 M2
Linkage Ball
2 x MF682ZZ
Flange Bearings
2x5x2.3
OXY0058
Bell Crank Arm
2 x TBEM2X5
Button Hex Cap
Screw M2X5
2 x TBEM2X5
Button Hex
Cap Screw
M2X5
Vertical Fin Assembly.
(Carbon Fiber parts)
14T Pulley - Tail Shaft Assembly ready to use.
(CNC components)
Page 6
Pre Tentioner Belt Pulley Assembly.
(Box 02 / Bag 2)
Tail Bell Crank Assembly.
(Box 02 / Bag 3)
Bell Crank Assembly.
(Box 02 / Bag 3)
Bell Crank Arm Assembly.
Important Note:
This part come pre assembled
without
lock thread for quality
reason. Follow instruction per
final assembly.
Important Note:
This part come pre assembled
without
CA superglue for quality
reason. Follow instruction per final
assembly, install
without overclock
.
Important Note:
This part, for tuning reason
come factory pre assembled
with Loctite. Ready to use.
Note: screw come
pre assembled into
Pre Tensioner Belt Pulley
Note: screw come pre
assembled into Bell Crank
Arm
Important Note:
This part come pre assembled
with CA superglue for quality
reason. Ready to use
Important Note:
This part come pre assembled
with CA superglue for quality
reason. Ready to use
Chapter 5, Tail Assembly
