Oxy Heli oxy3 - Page 8

OXY0072
Tail Case Spacer
6 x TCEM Hex Cap
Screw M2X5
OXY0054
Shim 3x4x0.1
see note Fine Adjust Shims
Fine Adjust Shims note:
In order to give fine adjustment options,
into Extra Hardware Bag you can find
extra Shims 3x4x0.1 Start assembly without
shims, if Tail Assembly have sideway play,
add shims per need only on the shown side.
2 x TBEM2X5
Button Hex Cap
Screw M2X5
Tail Bell Crank
Assembly
Tail Assembly.
Tail Hub Assembly
OXY0074
Timing Belt - B390MXL
3mm Thickness
OXY0073
Tail Case Center
OXY0065
Tail Boom
11X14X0.5X284
E
D
B
I
Page 8
Tail Hub Assembly
Tail Pitch Slider
Assembly
SCM3X3
Set Screw
M3X3
Step 1 Step 2
Step 1 Step 2

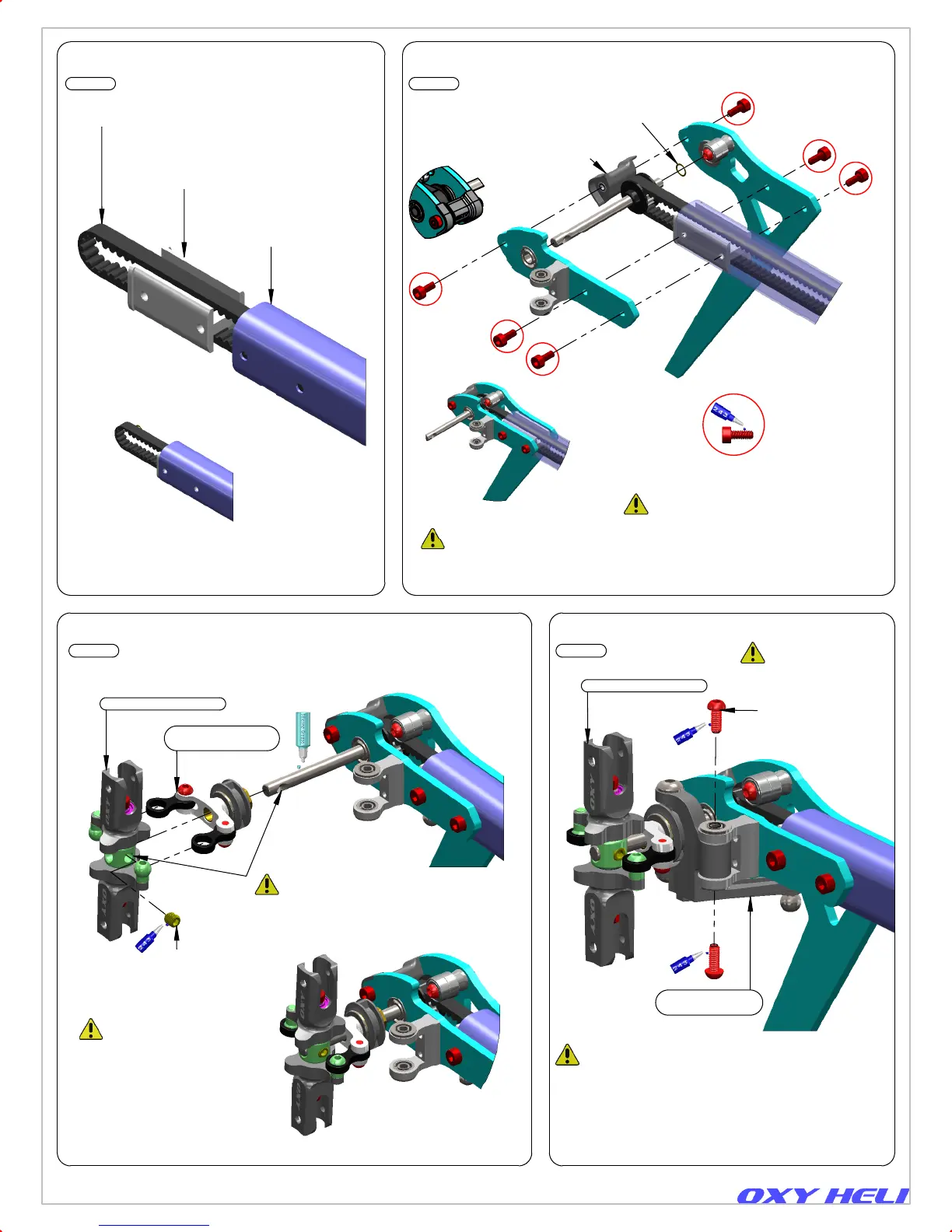

Tail Case Assembly.
Tail Case Assembly.
Note: screw come
pre assembled into
Tail Boom & Tail Case Spacer.
Tail Assembly.
Note: Set Screw come
pre assembled into Tail
Hub.
Note: Screws come
pre assembled into
Tail Bell Crank
Important Note:
Once finish the assembly,
assure the system can slide and move without friction.
If tail system is assembled correctly, sliding should be
smooth and without play. In case of friction or play
recheck each single components and re assembly per
need. If necessary adjust position of Bell Crank Arm.
Note: Line up the
holes so the set
screw seats correctly.
Page 7
CNC components
Box 02 / Bag 4)
( )
Chapter 5, Tail Assembly
