Disassembly/Assembly
To remove the ST 115 power source cover, perform the following procedure step by
step, in sequence using the accompanying illustrations as a guide.
CAUTION
POTENTIAL SHOCK HAZARD- Disassembly of the ST 115 system power source
(PPS 115) exposes line voltage parts. Replacement of the Pump Assembly must be
performed by qualified service personnel only. Service personnel must insure that the
AC power cord is disconnected prior to disassembly. Contact the PACE Technical
Support for assistance at tel. 1-888-535-PACE (7223), FAX 1-301-483-7030.
1. Place the unit on a suitable work surface with the front of the power
source facing forward.
2. Disconnect the AC power cable from the unit (if present).
NOTE
Use all ESD control precautions when servicing the ST 115 system. The power source
contains a PCB assembly utilizing static sensitive components.

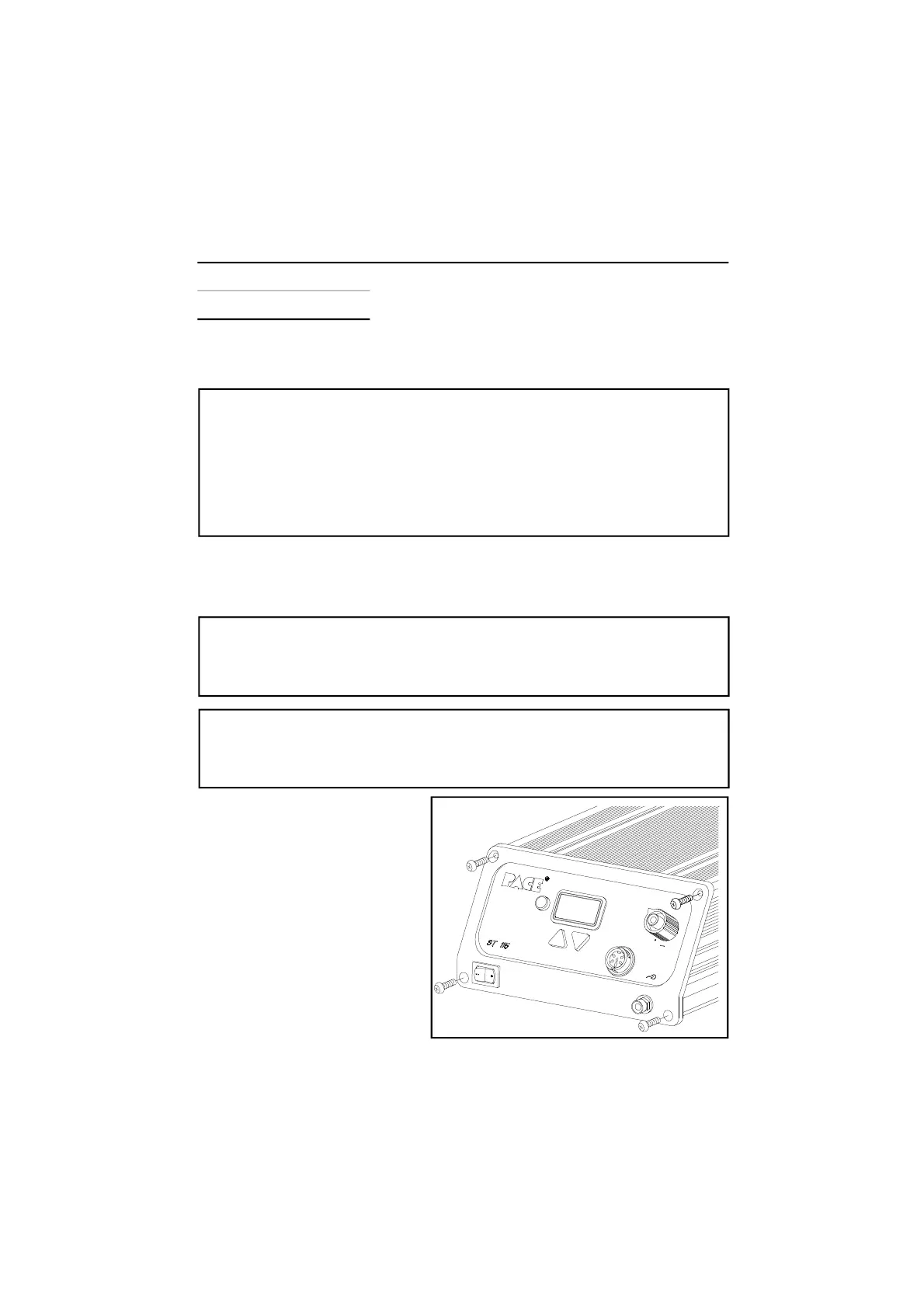

3. Remove the 4 Front Panel
mounting screws located at
each corner of the Front Panel
Bezel.
4. Pull the Front Panel and Bezel
forward.
Repair
NOTE
At this point, you may wish to remove any accessories attached to the power
source to ease removal of the 2 Cover Mounting Screws (step 6).
