2015OPERATIONSMANUAL
46
NO FILM DRIVE
o
ENSURE THAT THE OUTPUT IS
WORKING PROPERLY BY TESTING THE
FILM DRIVE FROM THE MANUAL
SCREEN. IF NOT SEE PG 100
o

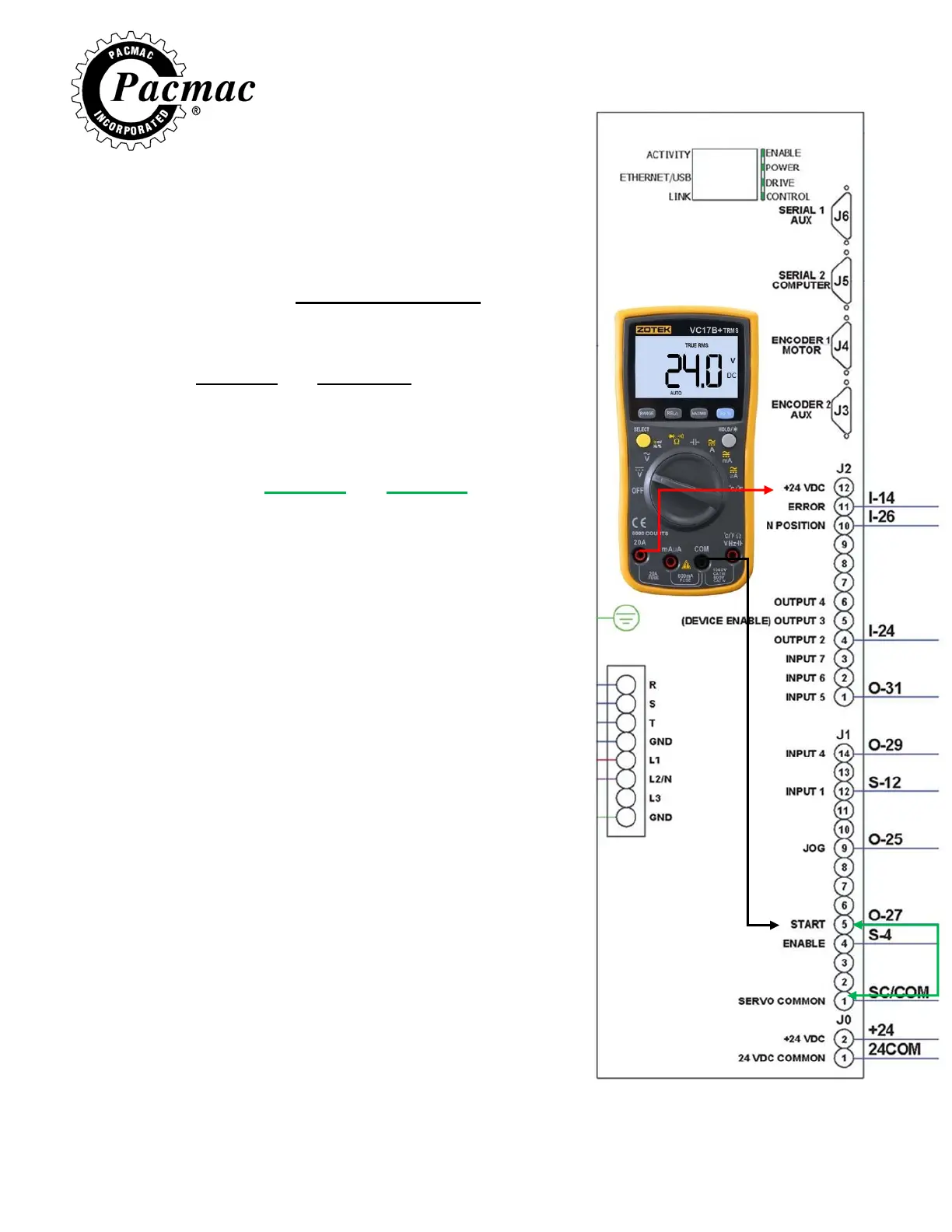

WHEN THE OUTPUT IS ON YOU
SHOULD READ 24VDC FROM
J1 PIN 5 TO J2 PIN 12
o
TO BYPASS THE OUTPUT BOARD AND
TEST THE SERVO SYSTEM
INDEPENDENTLY PLACE A JUMPER
FROM J1 PIN 1 TO J1 PIN 5 THE
FILM SHOULD DRIVE EVERY TIME IT
IS TOUCHED.
