2015OPERATIONSMANUAL
47
ONLY PULLING 8” OR 15” BAG
o
INSPECT THE OUTPUT BOARD TO
ENSURE THAT
SELECT LINE 1 IS ON FOR CLEAR
SELECT LINE 2 IS ON FOR PRINTED
o

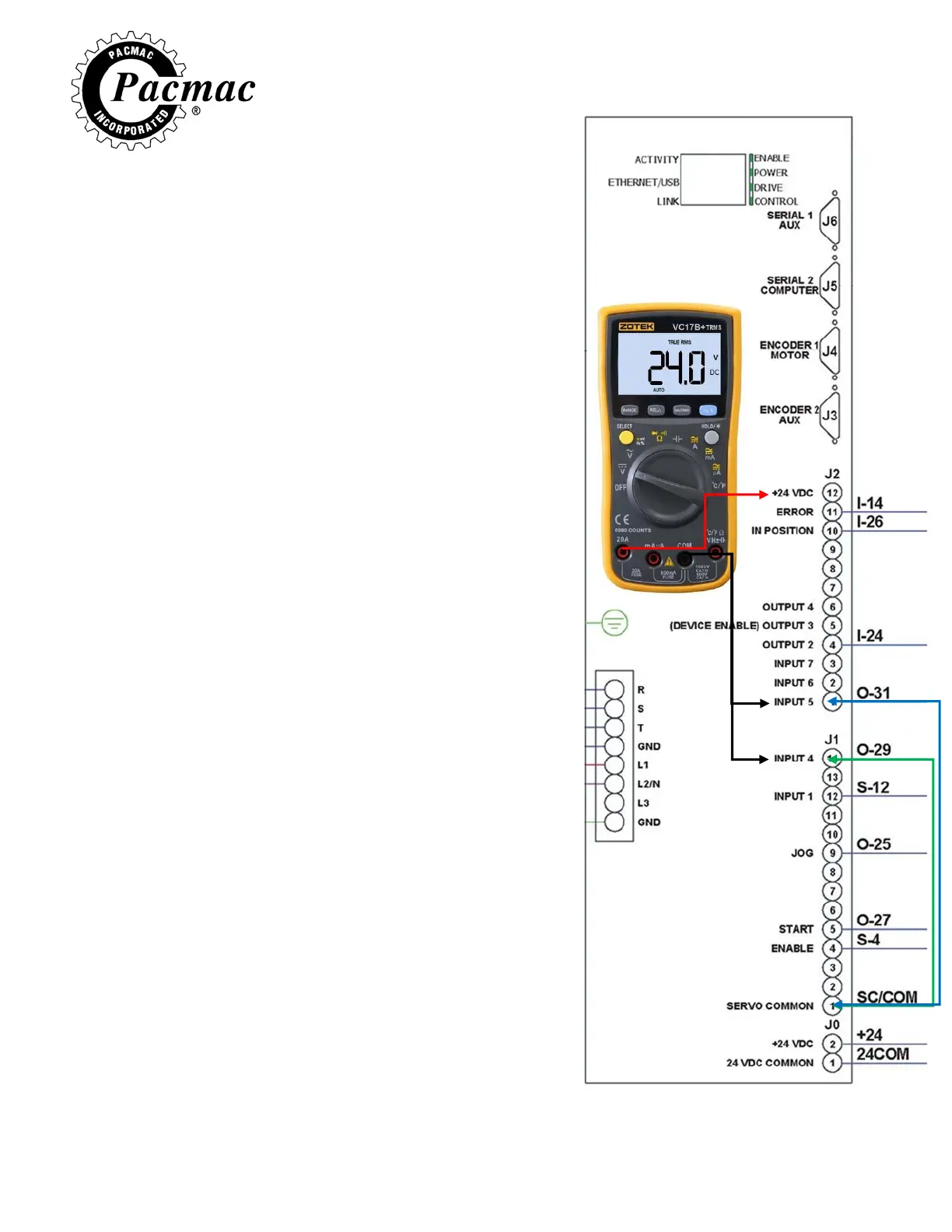

CHECK FOR 24VDC BETWEEN
J1 PIN 14 - J2 PIN 12 FOR CLEAR
o
J2 PIN 1 - J2 PIN 12 FOR PRINTED
o
IF VOLTAGE IS PRESENT AT BOTH
POINTS THE MACHINE WILL RUN A
DEFAULT 15” BAG, IF VOLTAGE IS
NOT PRESNET AT EITHER POINTS THE
RESULTS WILL BE A DEFAULT 8” BAG.
o
IF BOTH OUTPUTS ARE OFF, BYPASS
THE OUTPUT BOARD BY PLACING A
JUMPER FROM J1 PIN 1 TO J1 PIN 14
FOR CLEAR OR J1 PIN 1 TO J2 PIN 1
FOR PRINTED.
o
IF BOTH OUTPUTS ARE ON, BYPASS
THE OUTPUT BOARD BY REMOVING
THE WIRE FOR THE MODE YOU DO
NOT WANT. I-31 FOR PRINTED I-29
FOR CLEAR
