2015OPERATIONSMANUAL
48
SERVO NOT IN POSITION
o

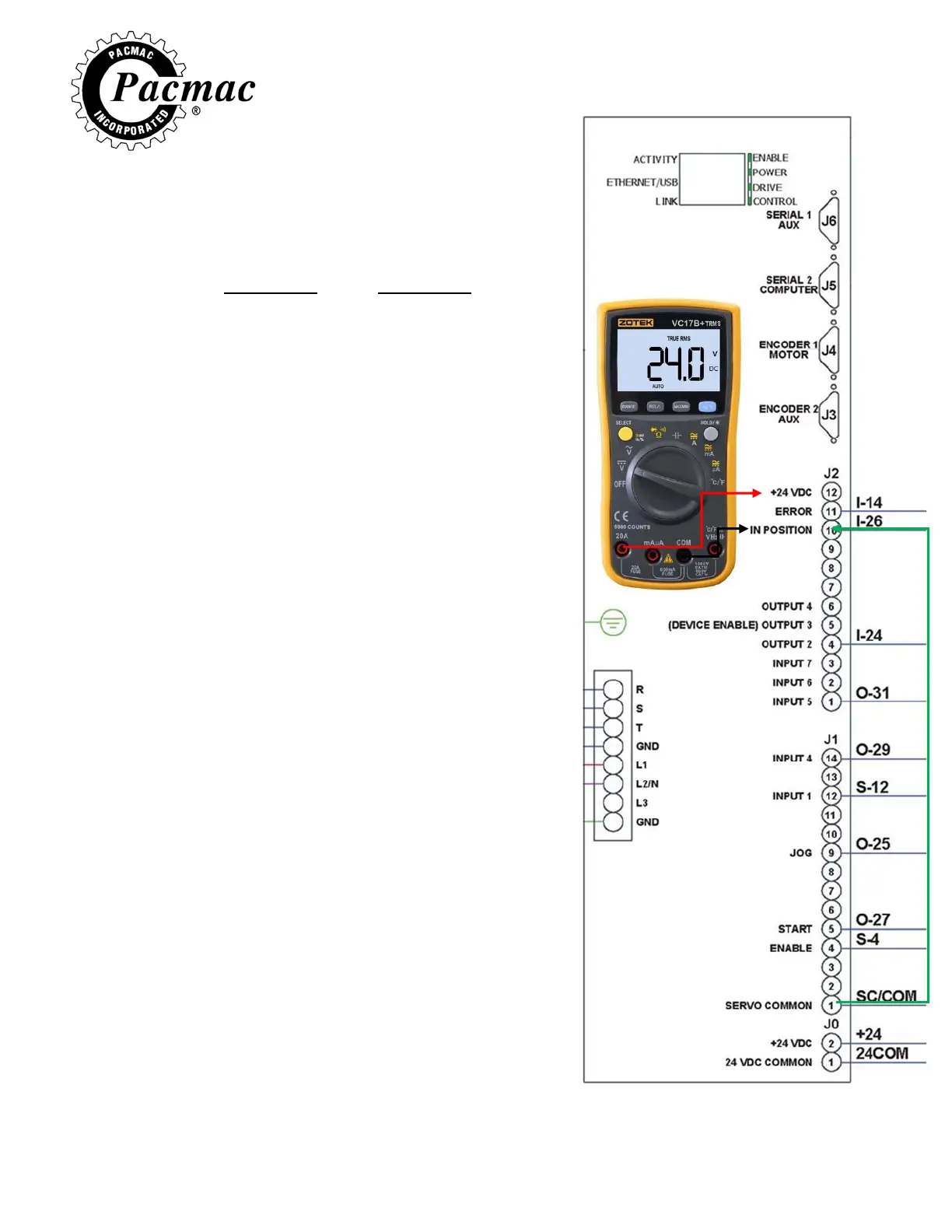

WITH THE MACHINE RESET CHECK
FOR 24VDC BETWEEN
J2 PIN 12 AND J2 PIN 10
o
IF VOLTAGE IS PRESENT, SEE
PAGE 100
o
IF VOLTAGE IS NOT PRESENT YOU
CAN BYPASS THE INPUT BOARD
BY PLACING A JUMPER WIRE
FROM J1 PIN 1 TO J2 PIN 10
To Next Page
