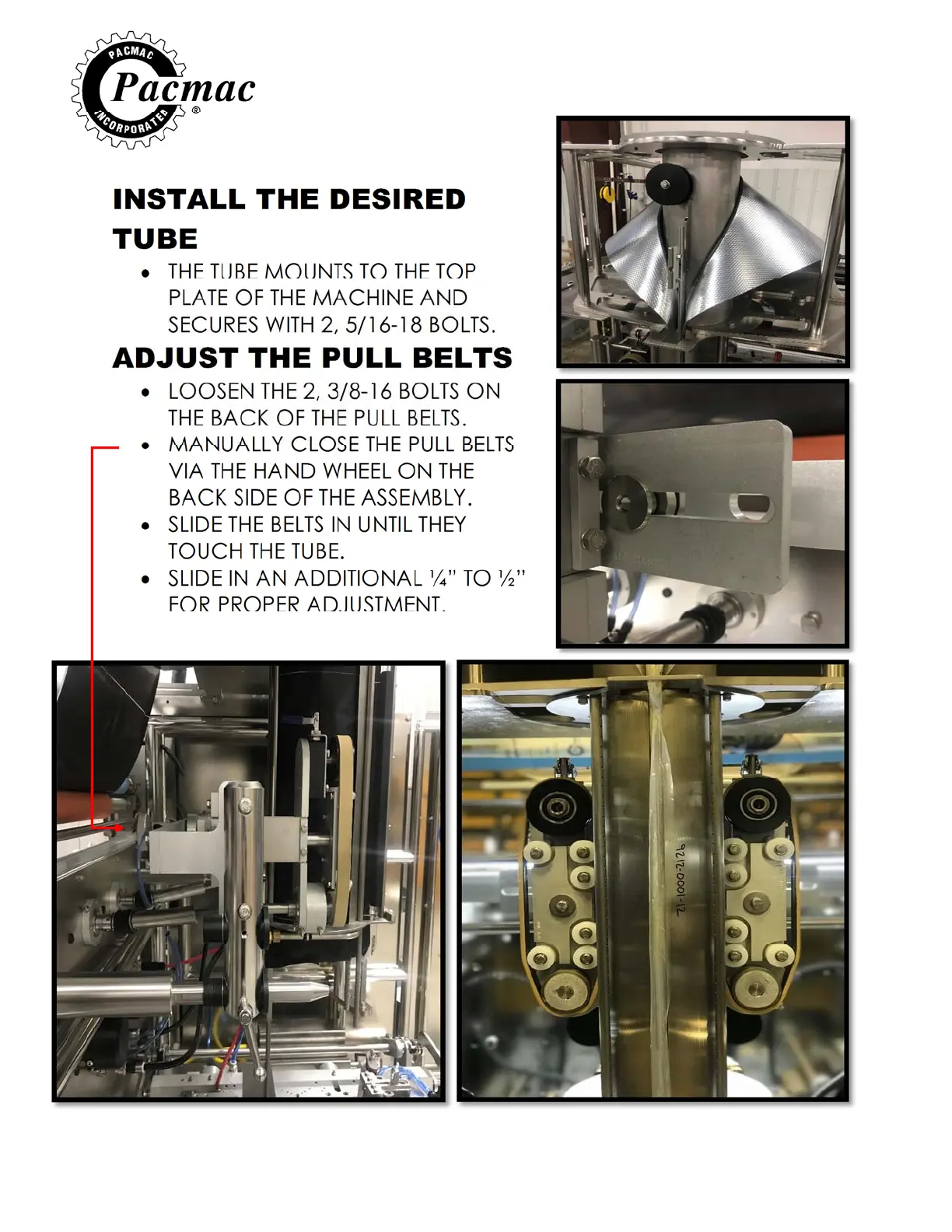

INSTALL THE DESIRED
TUBE
 THE TUBE MOUNTS TO THE TOP
PLATE OF THE MACHINE AND
SECURES WITH 2, 5/16-18 BOLTS.
ADJUST THE PULL BELTS
 LOOSEN THE 2, 3/8-16 BOLTS ON
THE BACK OF THE PULL BELTS.
 MANUALLY CLOSE THE PULL BELTS
VIA THE HAND WHEEL ON THE
BACK SIDE OF THE ASSEMBLY.
 SLIDE THE BELTS IN UNTIL THEY
TOUCH THE TUBE.
 SLIDE IN AN ADDITIONAL ¼” TO ½”
FOR PROPER ADJUSTMENT.
