2015OPERATIONSMANUAL
53

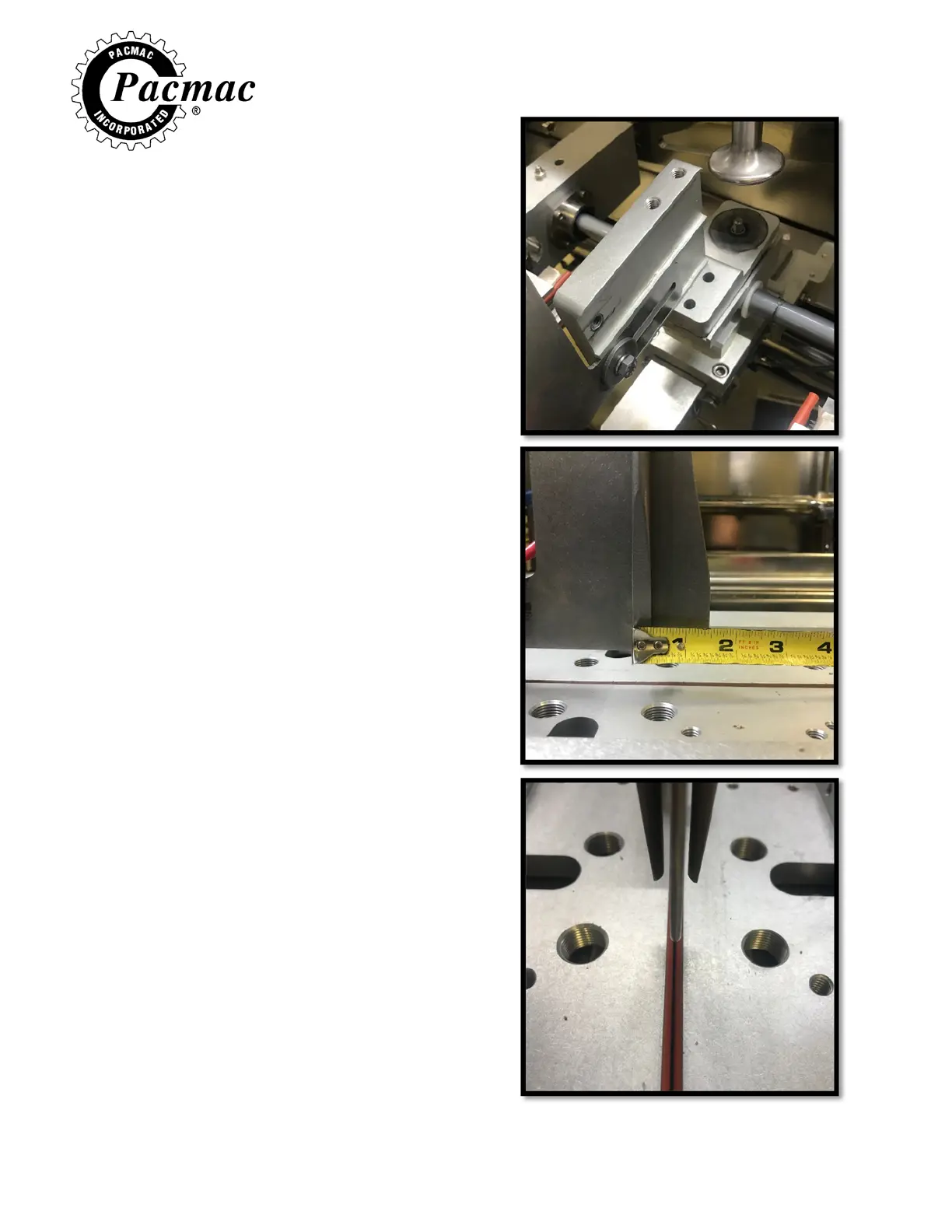

INSTALL GUSSETS
SLIDE TOP GUSSET MOUNT OVER
EXPOSED ALL THREAD.
SLIDE LOWER GUSSET INTO SLOT
ON BOTTOM.
SCREW KNOB BACK ON BUT
DON’T TIGHTEN.
SET GUSSET DEPTH
EXTEND THE CYLINDER
FORWARD TO EXTEND THE
GUSSET IN BETWEEN THE
SPREADER RODS.
THE DISTANCE FROM THE
BACKSIDE OF THE SPREADER
ROD AND THE FRONT SIDE OF
THE GUSSET RAM SHOULD
MEASURE 1.5”.
THE TOP AND BOTTOM SHOULD
BE SET TO THE SAME DISTANCE.
THE SPREADER ROD SHOULD
STRADDLE THE TOP GUSSET RAM
ON CENTER LINE WITH THE JAW
CLOSED.
ONCE ALL IS CHECKED AND SET
PROPERLY, TIGHTEN THE BACK
KNOB USING A ½” WRENCH TO
SECURE.
