2 TAKING DELIVERY AND ASSEMBLY OF THE
MACHINE
2.1 State of delivery and acceptance control
The machine is delivered almost ready-assembled and test driven.
In order to prevent transport damage, the adjustment lever for splitting wedge 12,
the operating lever for log-stop 10 and the protective net for crosscut saw-blade 9
have been removed and packed separately. (Fig. 1)
Check the delivered goods without delay.
If the product shows transport damage, contact the transport company and your
dealer immediately.
2.2 Main parts of the machine
1. Table extension
2. Oil tank
3. Emergency stop lock
4. Emergency stop
5. Manual start of the splitting
cylinder
6. Disengaging clutch of the
angular gear
7. Crosscut deck
8. Saw-blade cover
9. Protective net for saw-
blade
10. Log-stop control lever
11. Protective net for splitting
chute
12. Adjustment lever 12 for the
splitting wedge
13. Conveyor

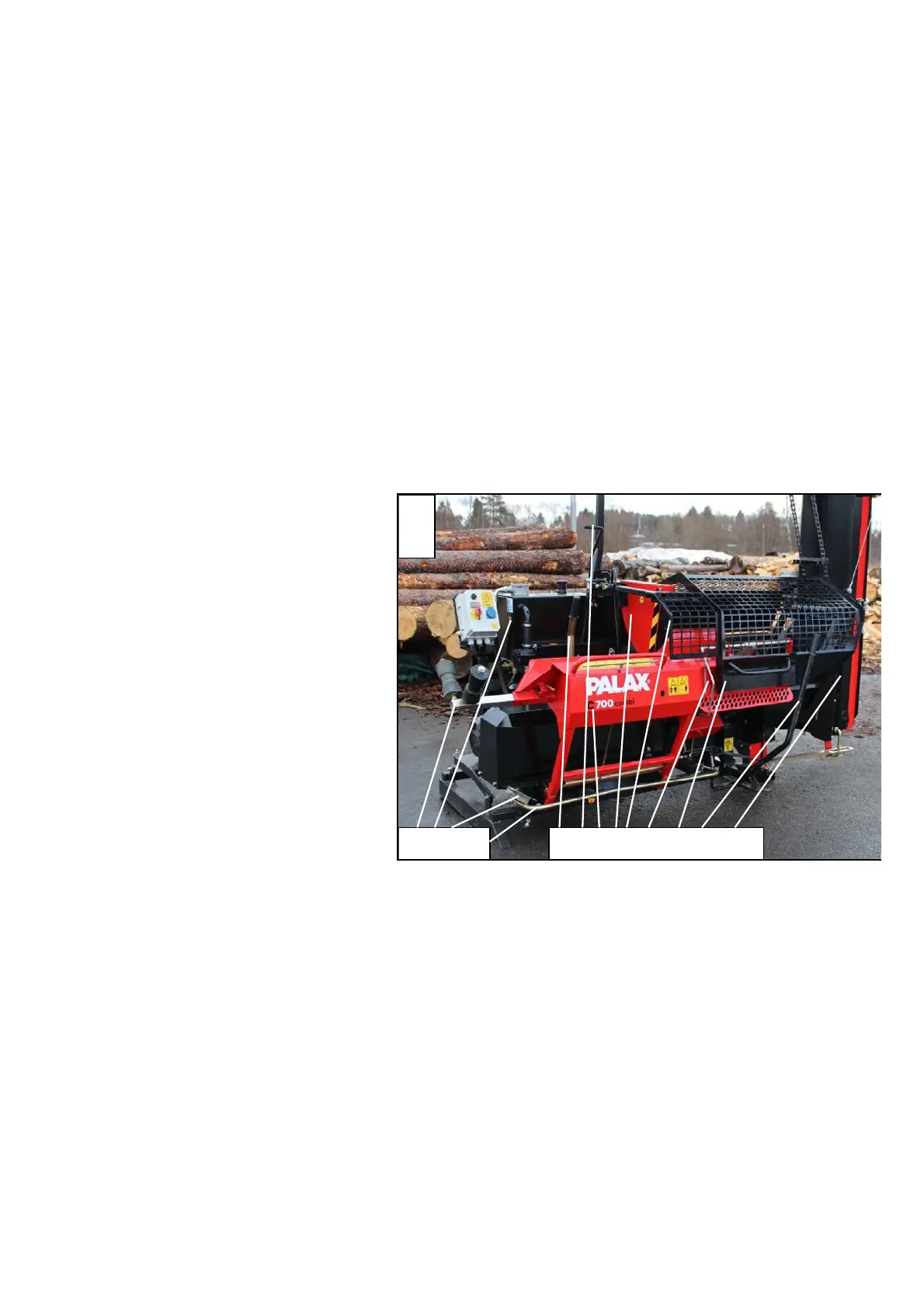

Fig. 1. Main parts of the machine
Install protective net 9 as shown in Fig. 1 so that its front edges and the front
edges of the protective net for splitting chute 11 come into line.
2.3 Installation of the adjustment lever for the splitting wedge (Fig.
2)
Remove the splint, nut and cup springs.
Position the adjustment lever so that the friction plate A comes between the frame
bar and the lever.
Put the adjusting lever in place.
Install the cup springs as instructed by the sticker.
