5. Pull open lock A (Fig. 4).
6. Swing down the top of the conveyor.
7. Remove the support bar B for the conveyor chain (Fig. 5) and attach it to the
holes C at the edge of the conveyor.
8. Put the attachment chain and the splints back in place.
A
5
B
A
C

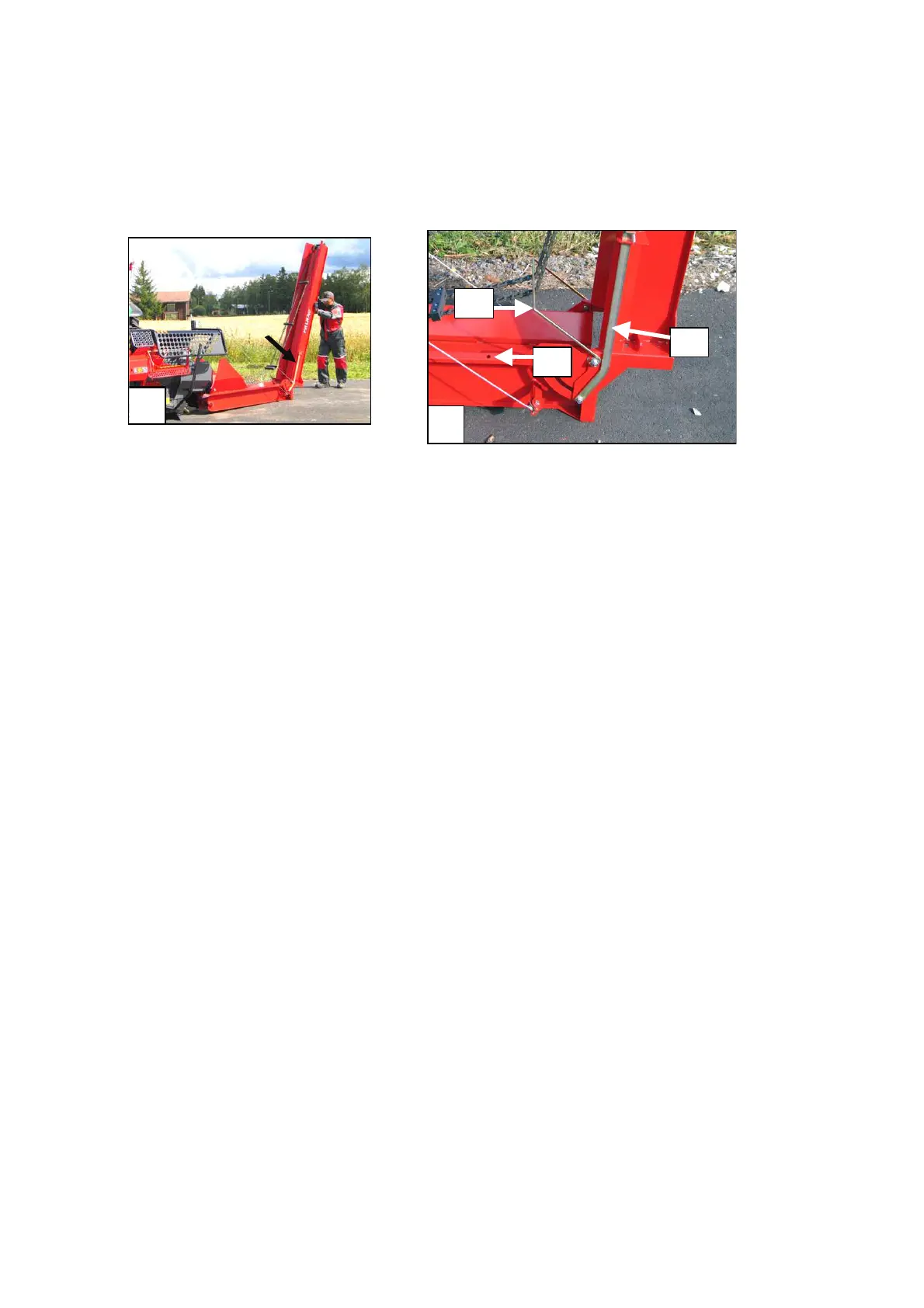

Fig. 5. Unfolding the conveyor 2/2
Fig. 4. Unfolding the comveyor 1/2
2.7 Bringing the conveyor into the transport position
1. Disconnect the attachment chain for the conveyor.
2. Lower the conveyor to the ground and connect the support bar B for the
conveyor chain, Fig. 5.
3. Pull lock A open and lift up the conveyor top.
4. Ensure that lock A is properly locked.
5. Raise the conveyor using the winch.
6. Tighten the winch wire lightly in order to prevent it uncoiling from the spool.
7. Lock the conveyor in the transport position.
NOTE! Always hold by the winch handle as you lower the conveyor.
