 Put the crown nut in place, adjust the lever to a suitable tightness and put the splint
in place.
NOTE! Do nut lubricate the friction plate A!
2.4 Assembly of the log-stop, Figure 3
1. Unscrew the attachment nut A for the log-stop.
2. Push the shaft B into the hole in the table and place the log-stop A on the shaft
B.
3. Push the shaft in place and fix the cotter.
4. Put the spring C in place.
5. Adjust the log-stop A as follows:
A. When the table is in the rear posistion,
the log-stop is in the limiting position.
B. When the deck is pushed forward, the log-stop folds completely away from
the log.
2.5 Topping up hydraulic oil
 Hydraulic oil volume 40 litres.
 Oil type Univis 32, SHELL Tellus 32, NESTE HYDRAULI 32 or equivalent.
 Only use fresh, clean oil.
 Observe particular cleanliness during the oil change, because smooth operation of
the machine is highly dependent on the purity of the oil.
2.6 Bringing the conveyor into the work position, Figures 4 and 5
1. Release the locks for the conveyor.
2. Uncoil the wire of the winch about twelve rounds.
3. Pull out the conveyor and leave it supported by the winch rope.
4. Lower the conveyor to the ground using the winch.
2
A
B
C
3
A
C
B
Fig.

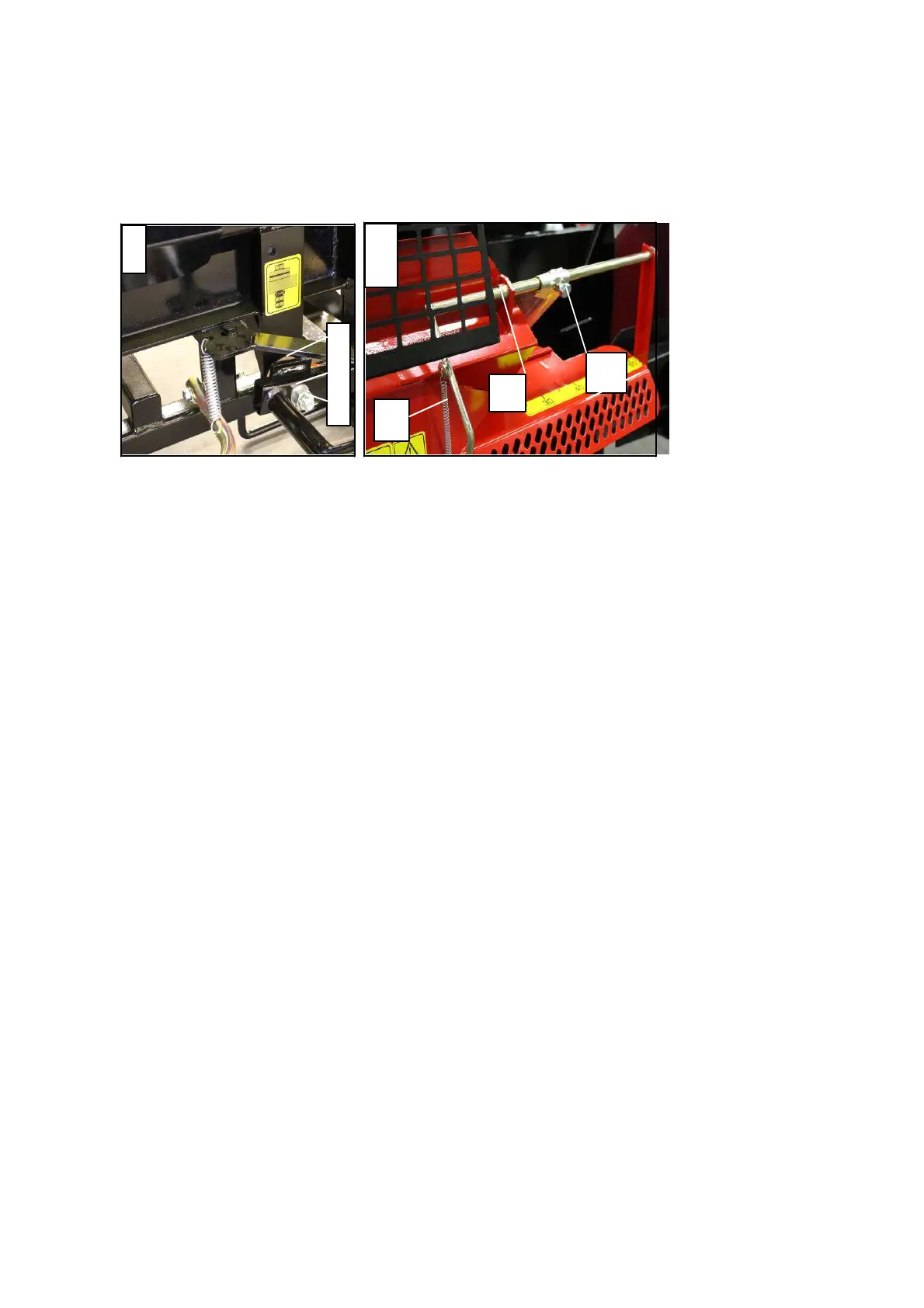

2. Installing the adjustment lever
for the splitting wedge,
Fig. 3. Installing the log-stop,
