Palfinger ILF 33 - Installation Dimensions ILF 44 and ILF 55

ILF 33/44/55 Installation Manual
Rev 1.1 16

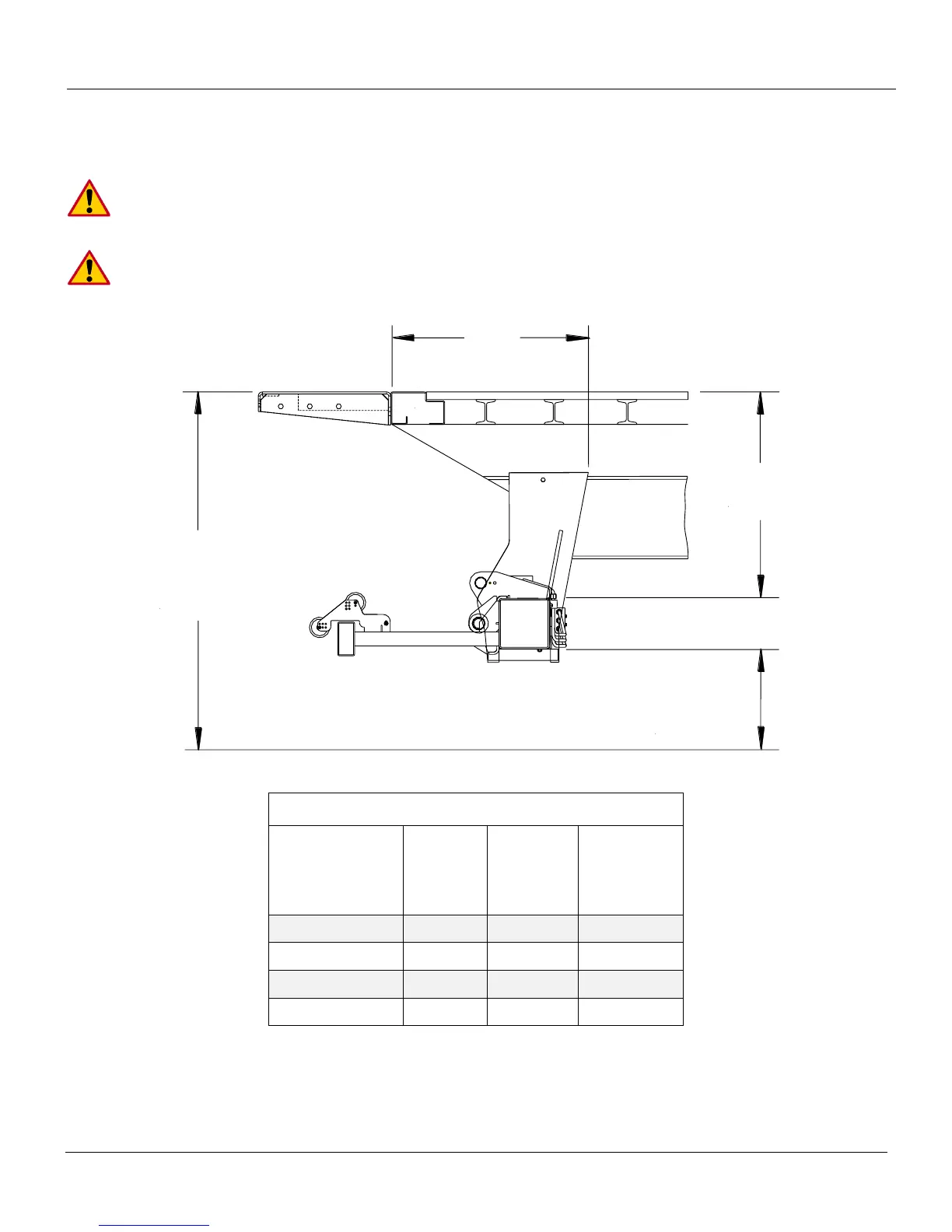

6.2.1 Installation Dimensions ILF 44 and ILF 55
IMPORTANT:
Always use the smallest F-dim possible for best ground clearance
(Don‟t exceed max. ground clearance)
Minimum bed height is when truck/trailer is loaded to MAX GVW
"K"
Mount Clearance
(Reference)
"F" Dim.
Bed Height
Max. 55"
Min. 50"
"G"
Ground
Clearance
Sill
ILF 44/55 Mounting Dimension Table
Bed Height
(Loaded)
F
Dim.
G
Dim.
K
Dim.
(Ref.)
55“
28“
19.5“
26“
54“-53“
27“
19“
27“
52“-51“
26“
18“
28“
50“
25“
17“
29“
