ILF 33/44/55 Installation Manual
Rev 1.1 39

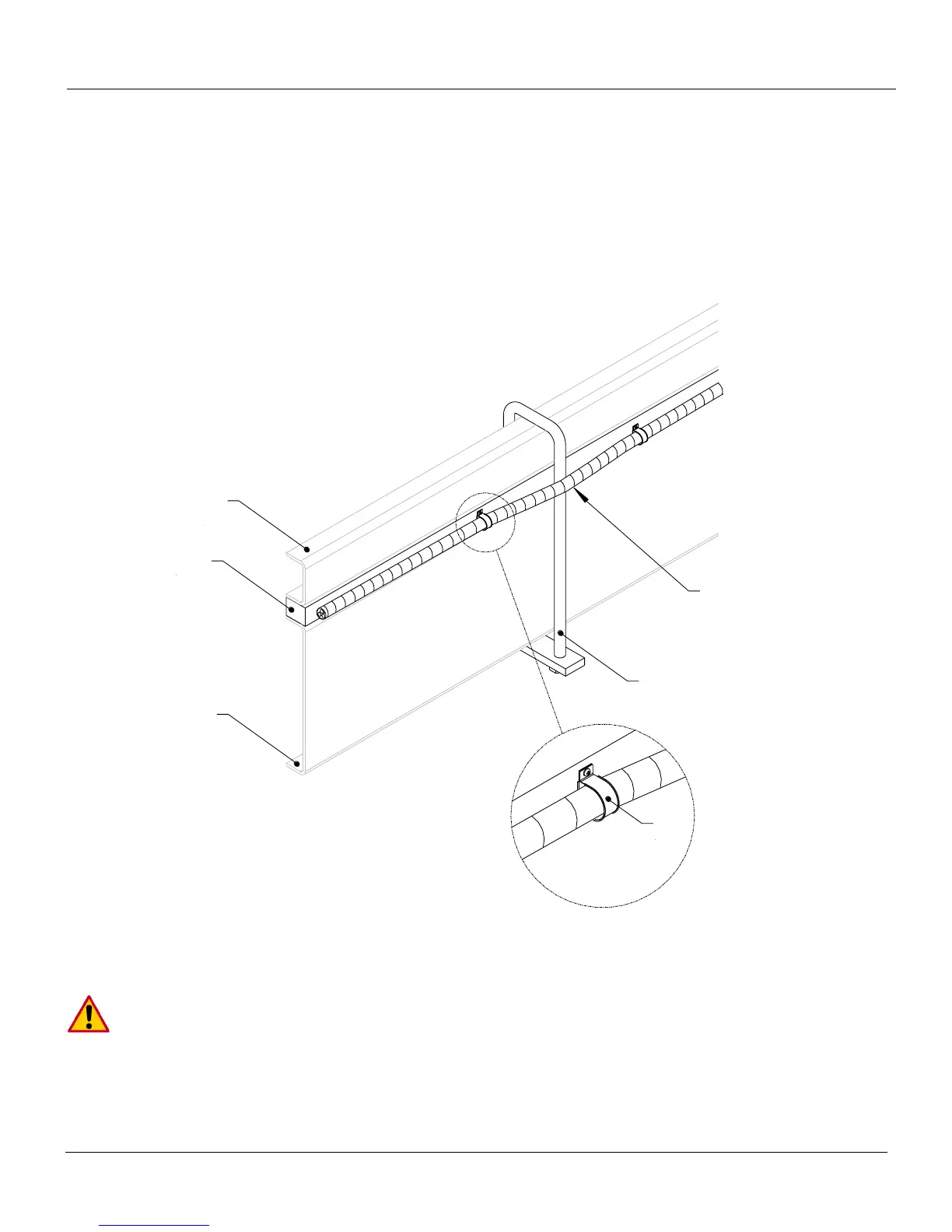

Cable Routing 9.3
1. Route all cables along the wooden spacer and through the outside of the U-bolts.
2. Secure the routed wire every 12” with insulated wire clamps or staples against the wooded
spacer(s).
3. The use of wire loom is highly recommended to protect and facilitate cable routing. Wire loom not
supplied.
Body
Long
Sill
Wooden
Spacer(s)
Chassis
Frame
U-Bolt
Cable Routed
Outside of U-Bolts
Insulated
Cable
Clamps
Inspect and test all electrical connections, wiring and the different functions to make sure
that the electrical installation is complete.
